Turbine, High-Temp Brew Meter, Battery-Powered Display, Tri-Clamp Fittings
FLOMEC® G2 Series
Make your perfect recipe every time! The FLOMEC G2 Brew Meter features a high-temperature riser and Tri-Clamp fittings. It’s highly dependable and affordable, making it a great choice for small-batch brewers.
Specifications
- Flow Range:
- 1 - 10 GPM (3.8-38 L/min)
- Accuracy (% of Reading):
- +/- 1.5%
- Technology:
- Turbine
- Pressure Rating:
- Limited by fitting, clamp size, & temperature
- Operating Temperature:
- 0° F to 185° F (-18° C to 85° C)
- Connection Type/Size:
- Tri-Clamp, 3/4-inch
- Pipe Size:
- 1/2-inch
- Meter Housing Material:
- Stainless Steel
- Wetted Materials:
- 316 Stainless Steel | Ceramic | PVDF | Tungsten Carbide
- Warranty:
- 2-yr meter warranty
- UPC:
- 031401009590
- Approvals:
- CE, NEMA 4, IP65
- Flow Range:
- 2 - 20 GPM (7.6-76 L/min)
- Accuracy (% of Reading):
- +/- 1%
- Technology:
- Turbine
- Pressure Rating:
- Limited by fitting, clamp size, & temperature
- Operating Temperature:
- 0° F to 185° F (-18° C to 85° C)
- Connection Type/Size:
- Tri-Clamp, 1-inch
- Pipe Size:
- 3/4-inch
- Suction Lift:
- N/A
- Meter Housing Material:
- Stainless Steel
- Wetted Materials:
- 316 Stainless Steel | Ceramic | PVDF | Tungsten Carbide
- Warranty:
- 2-yr meter warranty
- UPC:
- 031401009606
- Approvals:
- CE, NEMA 4, IP65
- Flow Range:
- 5 - 50 GPM (19-190 L/min)
- Accuracy (% of Reading):
- +/- 1%
- Technology:
- Turbine
- Pressure Rating:
- Limited by fitting, clamp size, & temperature
- Operating Temperature:
- 0° F to 185° F (-18° C to 85° C)
- Connection Type/Size:
- Tri-Clamp, 1-1/2-inch
- Pipe Size:
- 1-inch
- Suction Lift:
- N/A
- Meter Housing Material:
- Stainless Steel
- Wetted Materials:
- 316 Stainless Steel | Ceramic | PVDF | Tungsten Carbide
- Warranty:
- 2-yr meter warranty
- UPC:
- 031401009613
- Approvals:
- CE, NEMA 4, IP65
- Flow Range:
- 10 - 100 GPM (38-380 L/min)
- Accuracy (% of Reading):
- +/- 0.75%
- Technology:
- Turbine
- Pressure Rating:
- Limited by fitting, clamp size, & temperature
- Operating Temperature:
- 0° F to 185° F (-18° C to 85° C)
- Connection Type/Size:
- Tri-Clamp, 2-inch
- Pipe Size:
- 1-1/2-inch
- Suction Lift:
- N/A
- Meter Housing Material:
- Stainless Steel
- Wetted Materials:
- 316 Stainless Steel | Ceramic | PVDF | Tungsten Carbide
- Warranty:
- 2-yr meter warranty
- UPC:
- 031401009620
- Approvals:
- CE, NEMA 4, IP65
- Flow Range:
- 20 - 200 GPM (76-760 L/min)
- Accuracy (% of Reading):
- +/- 0.75%
- Technology:
- Turbine
- Pressure Rating:
- Limited by fitting, clamp size, & temperature
- Operating Temperature:
- 0° F to 185° F (-18° C to 85° C)
- Connection Type/Size:
- Tri-Clamp, 2-1/2-inch
- Pipe Size:
- 2-inch
- Suction Lift:
- N/A
- Meter Housing Material:
- Stainless Steel
- Wetted Materials:
- 316 Stainless Steel | Ceramic | PVDF | Tungsten Carbide
- Warranty:
- 2-yr meter warranty
- UPC:
- 031401009637
- Approvals:
- CE, NEMA 4, IP65
What's in the Box

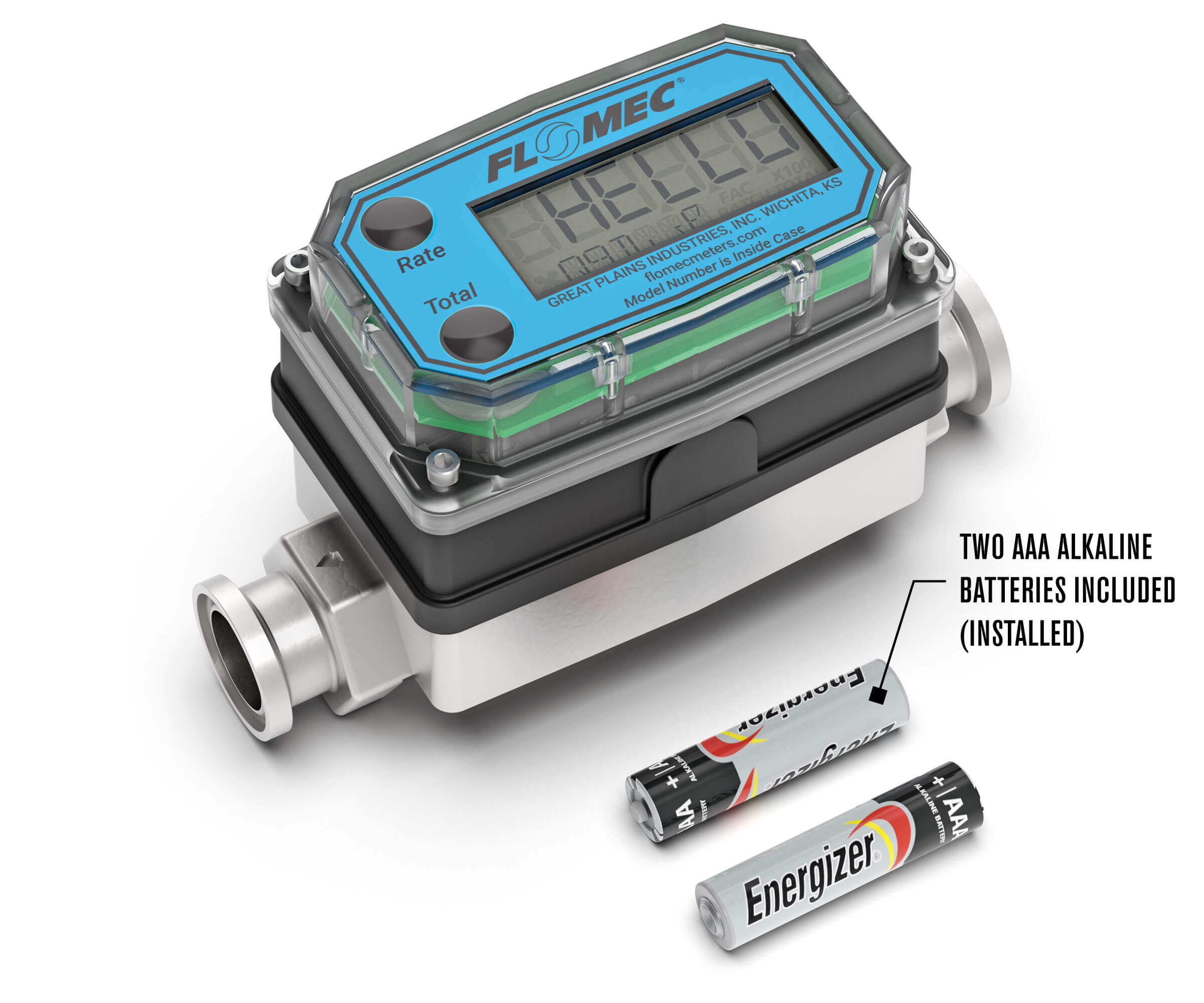

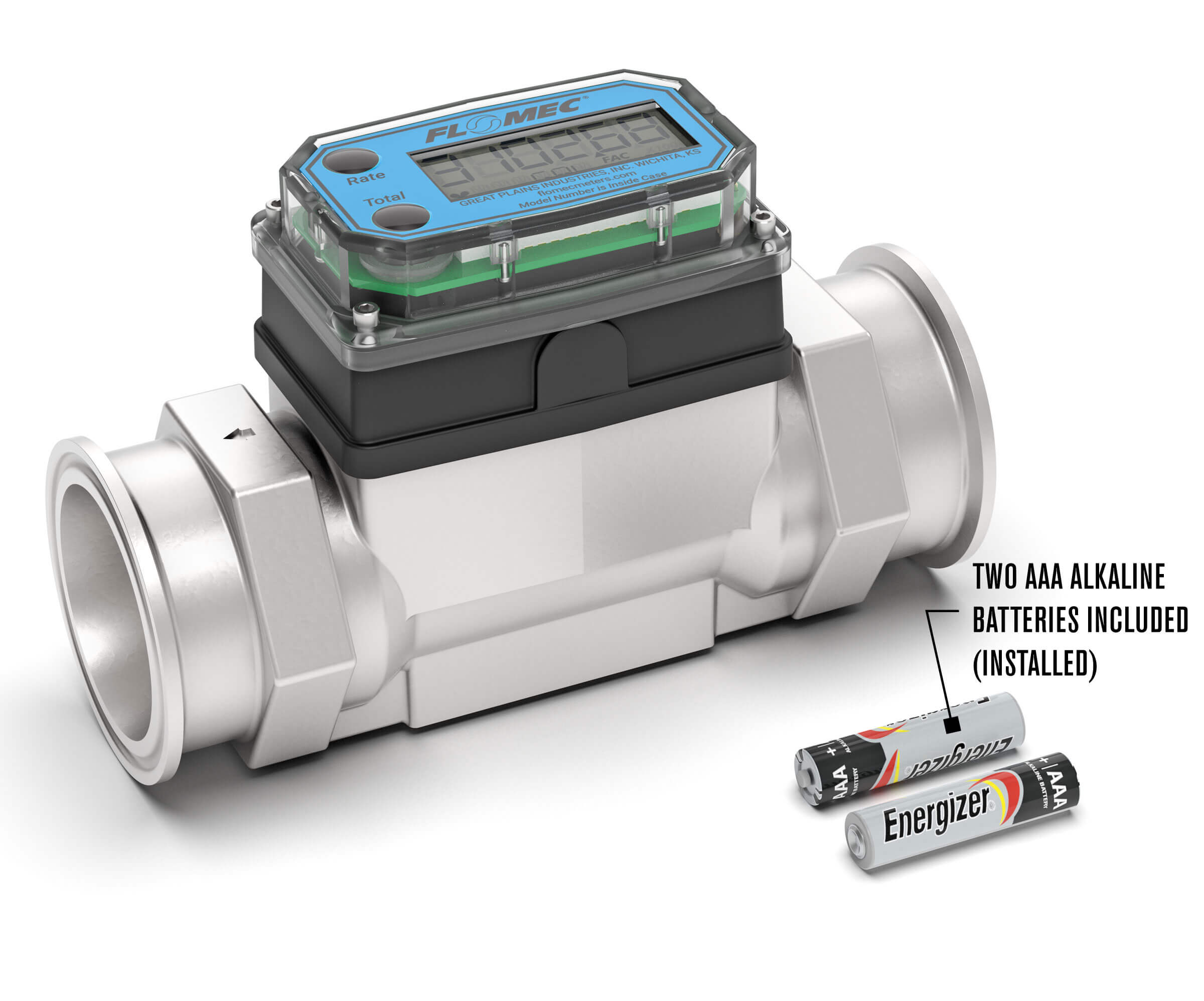

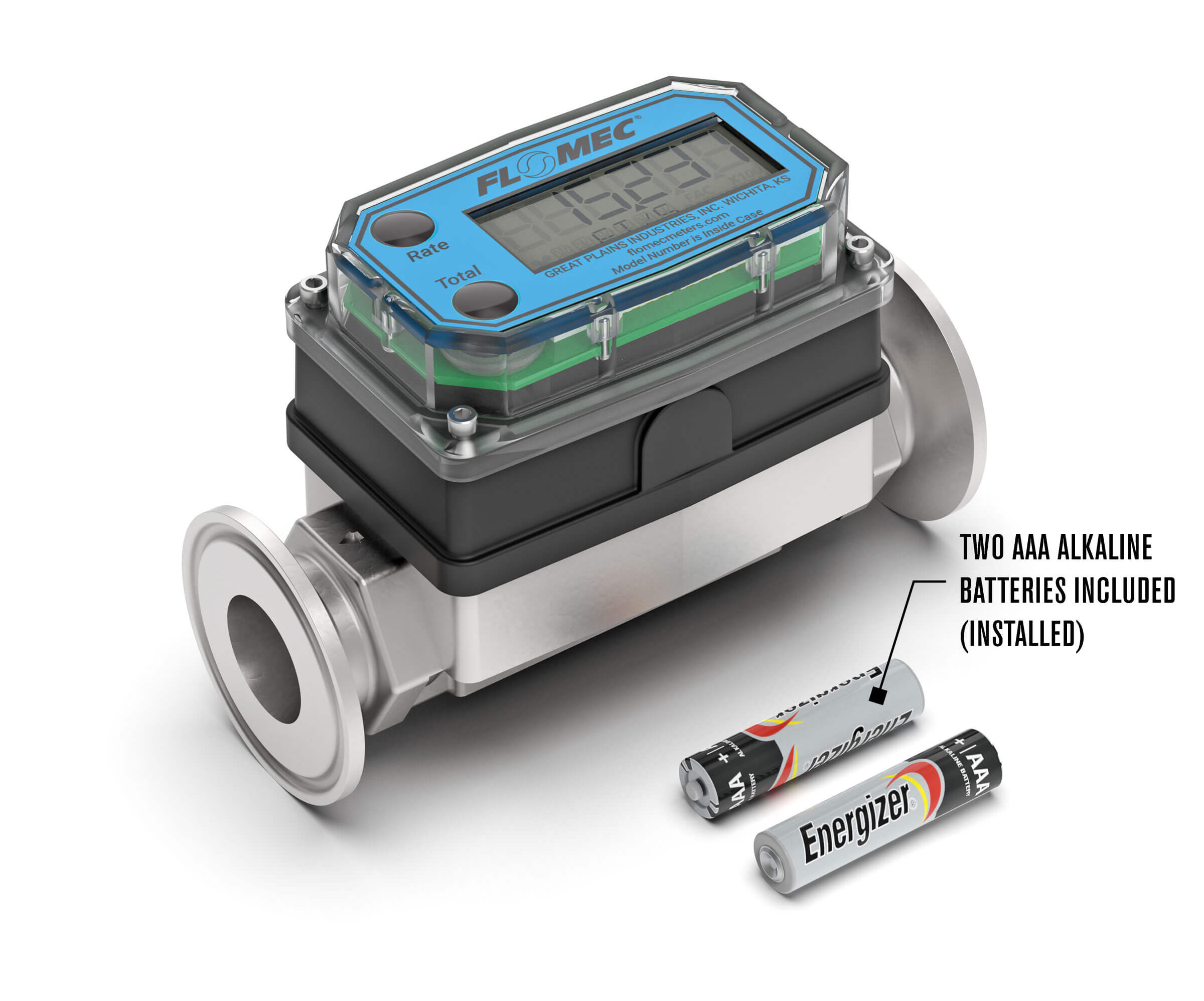

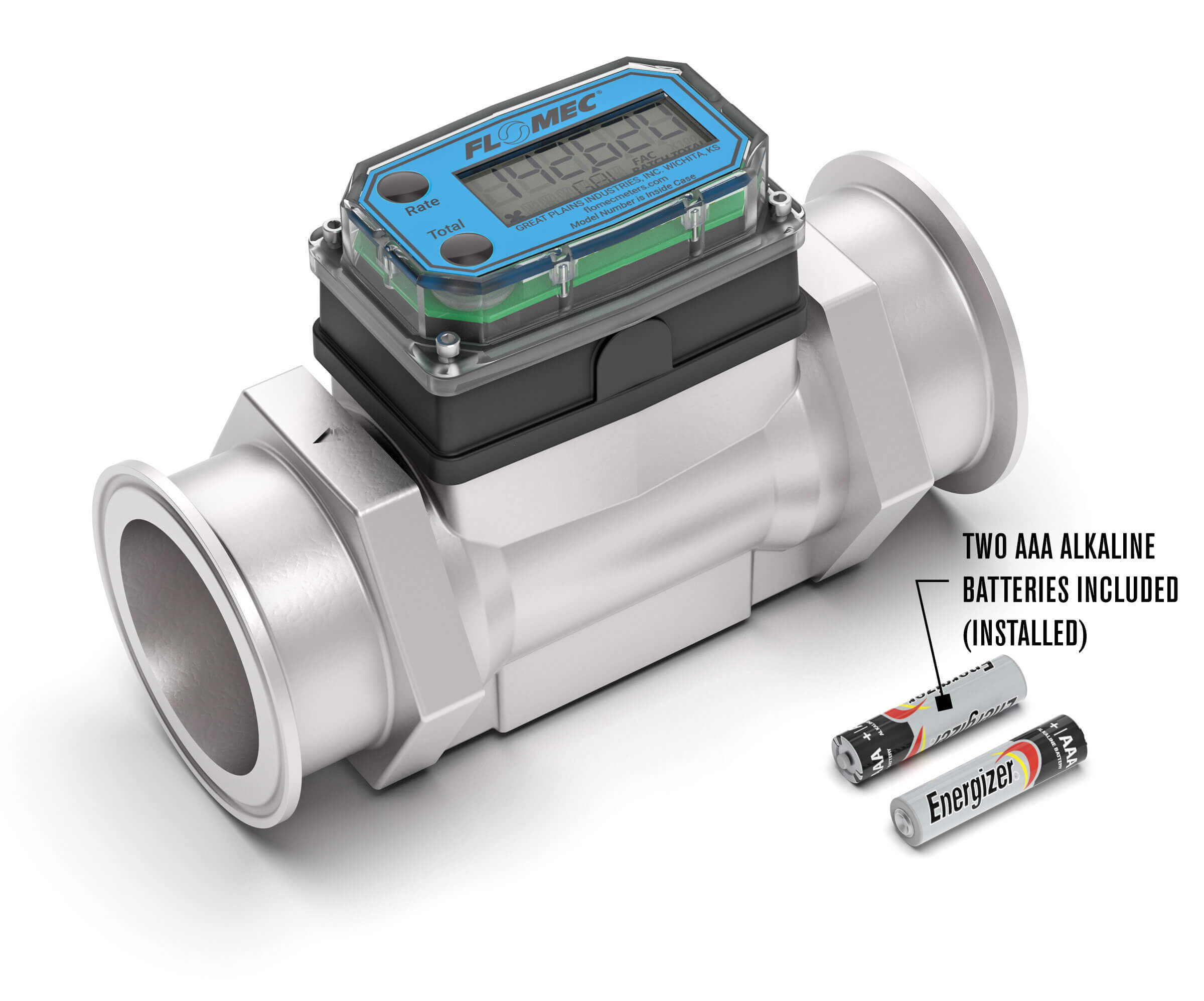

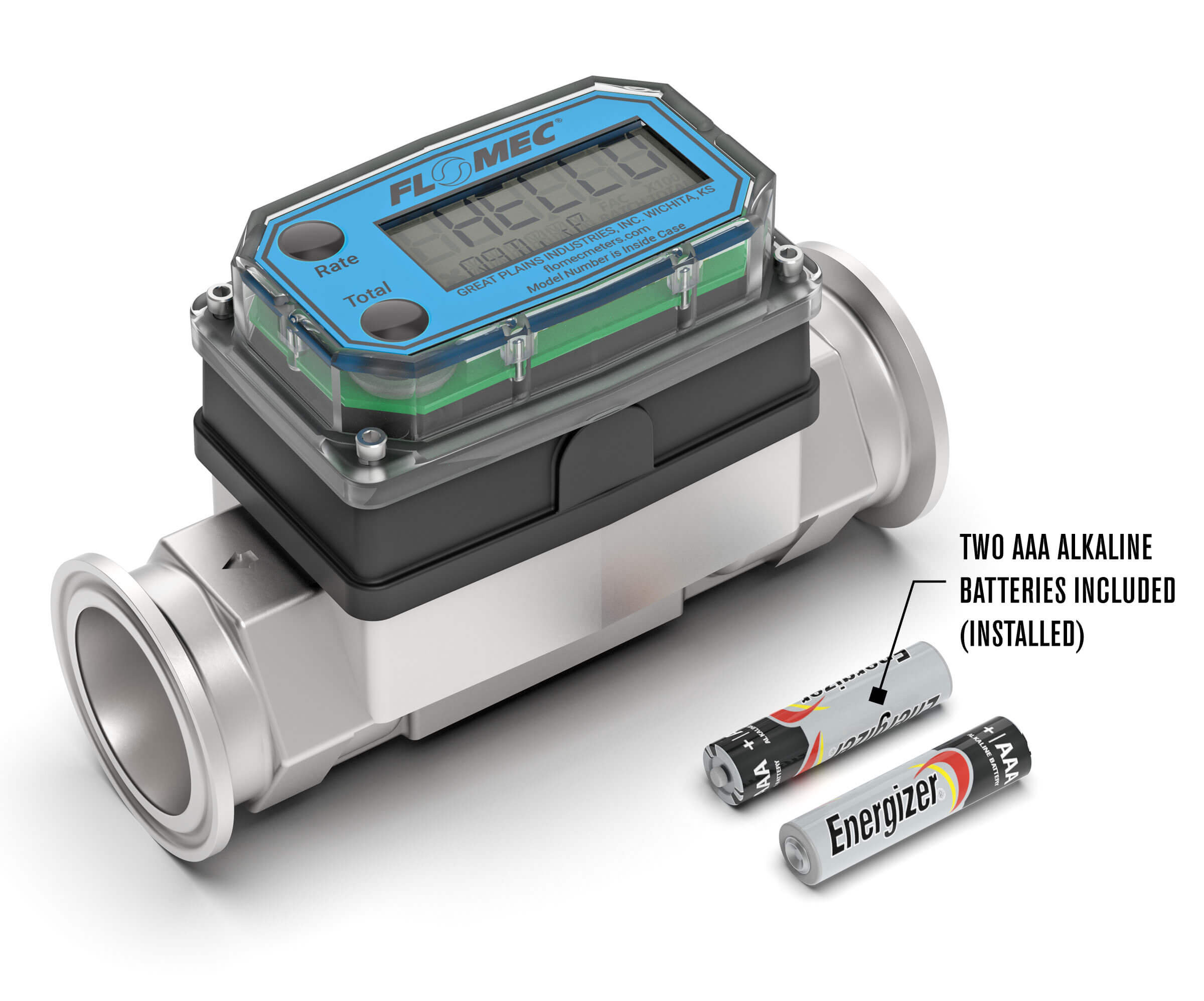

Turbine flowmeter, Local Digital Display, HIgh-Temperature Riser, (2) alkaline AAA batteries, Owners Manuals
Turbine flowmeter, Local Digital Display, HIgh-Temperature Riser, (2) alkaline AAA batteries, Owners Manuals
Turbine flowmeter, Local Digital Display, HIgh-Temperature Riser, (2) alkaline AAA batteries, Owners Manuals
Turbine flowmeter, Local Digital Display, HIgh-Temperature Riser, (2) alkaline AAA batteries, Owners Manuals
Turbine flowmeter, Local Digital Display, HIgh-Temperature Riser, (2) alkaline AAA batteries, Owners Manuals
