Turbine Flow Meter, Battery Powered Display, Aluminum Body for Methanol

GPI® 01A Methanol Meter Series

SKU 113700-02 | MODEL 01A31GMME
Sold out
Original price $199.99 - Original price $199.99
Original price
$199.99
$199.99 - $199.99
Current price $199.99

Fluid Statement

Methanol

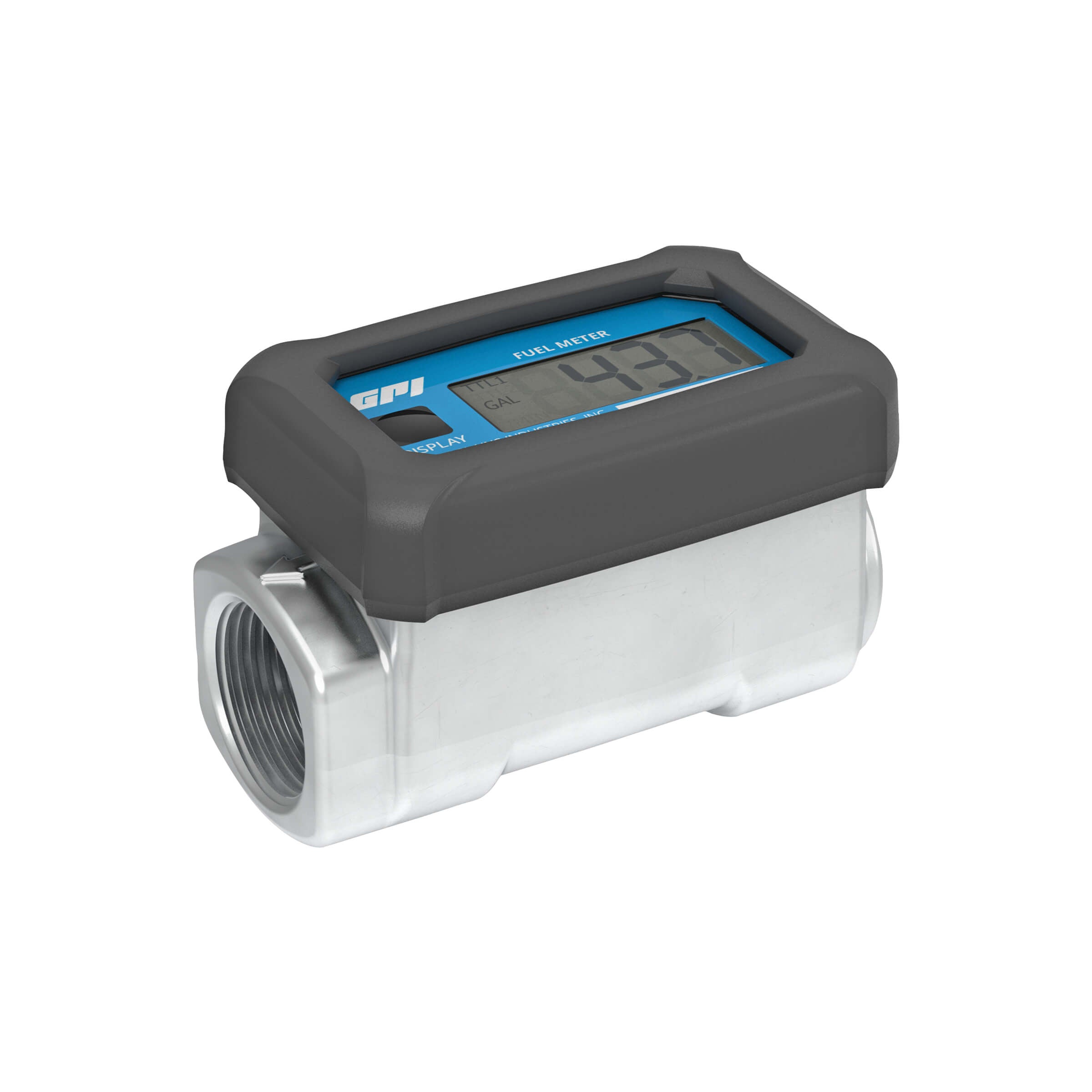

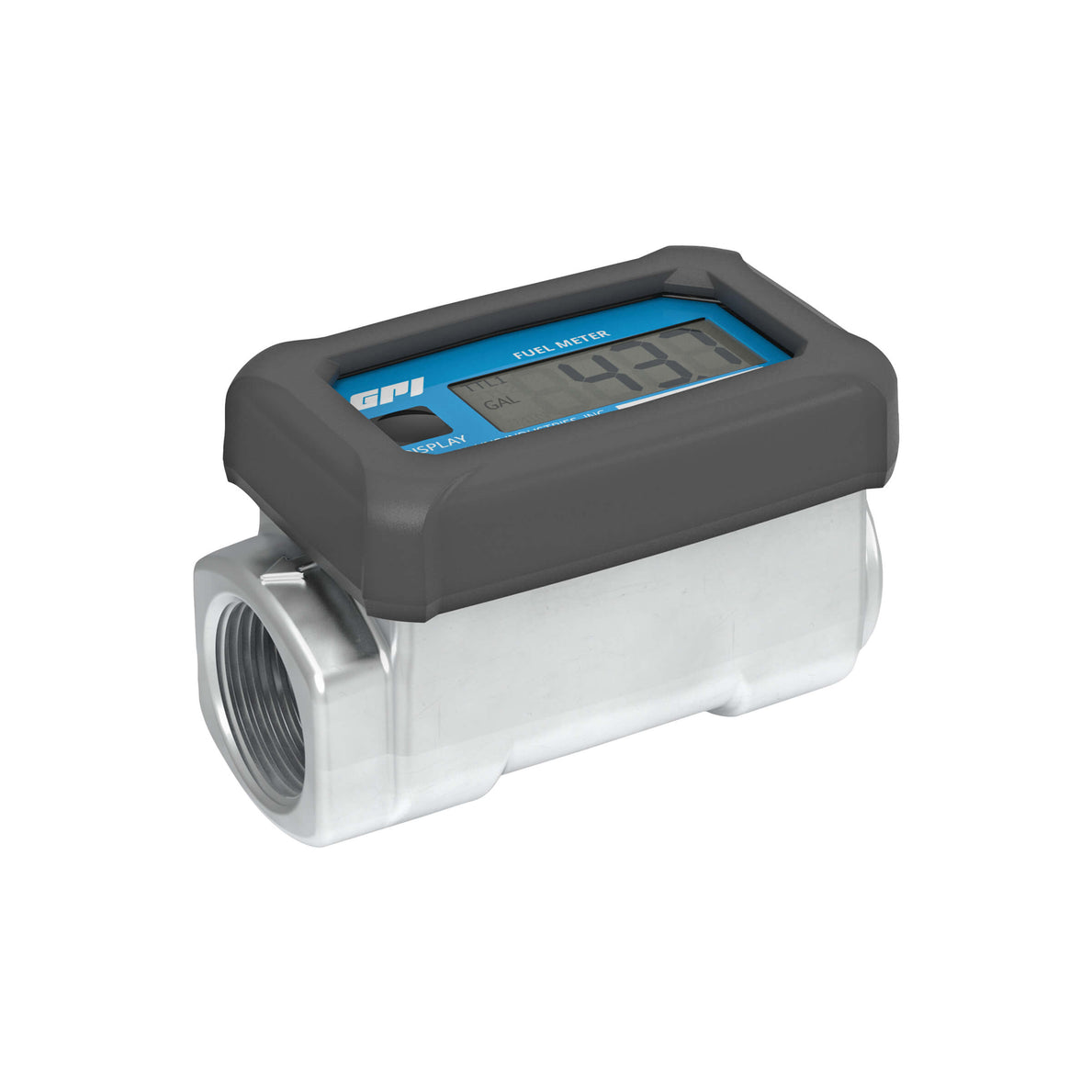

The GPI 01A Series Digital Methanol Meter is designed to work with any pump or gravity feed system. It provides accurate readings, field calibration and is battery-powered. Get the most out of this compact, lightweight digital meter. For use with methanol measuring rates ranging from 3 to 30 GPM (11-113 L/min).

Features & Benefits

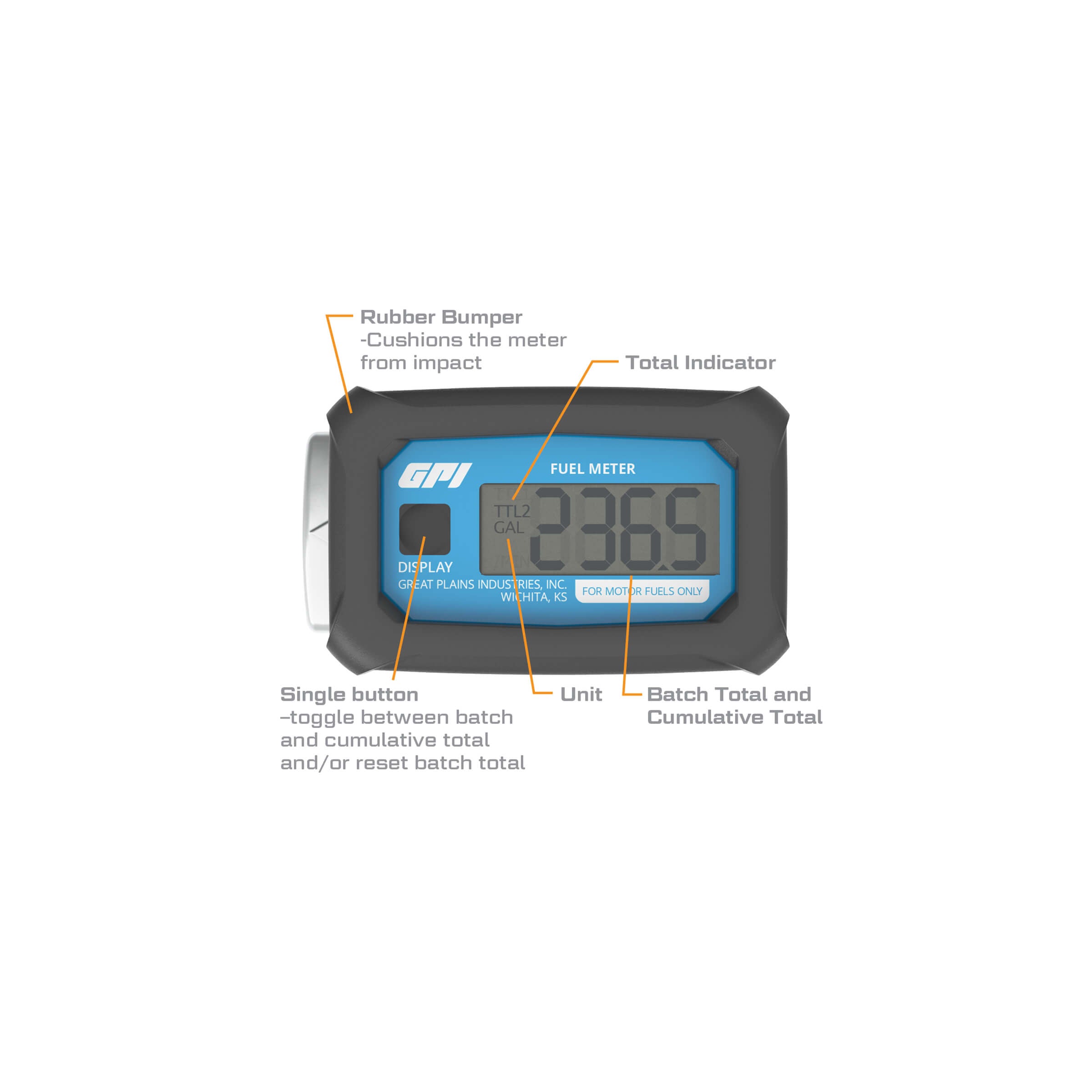

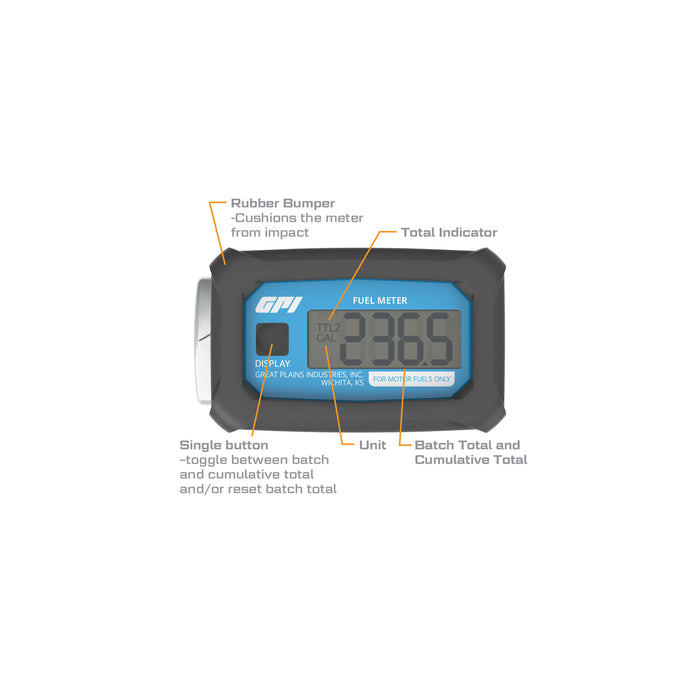

  • Compact and lightweight at just 12 oz.

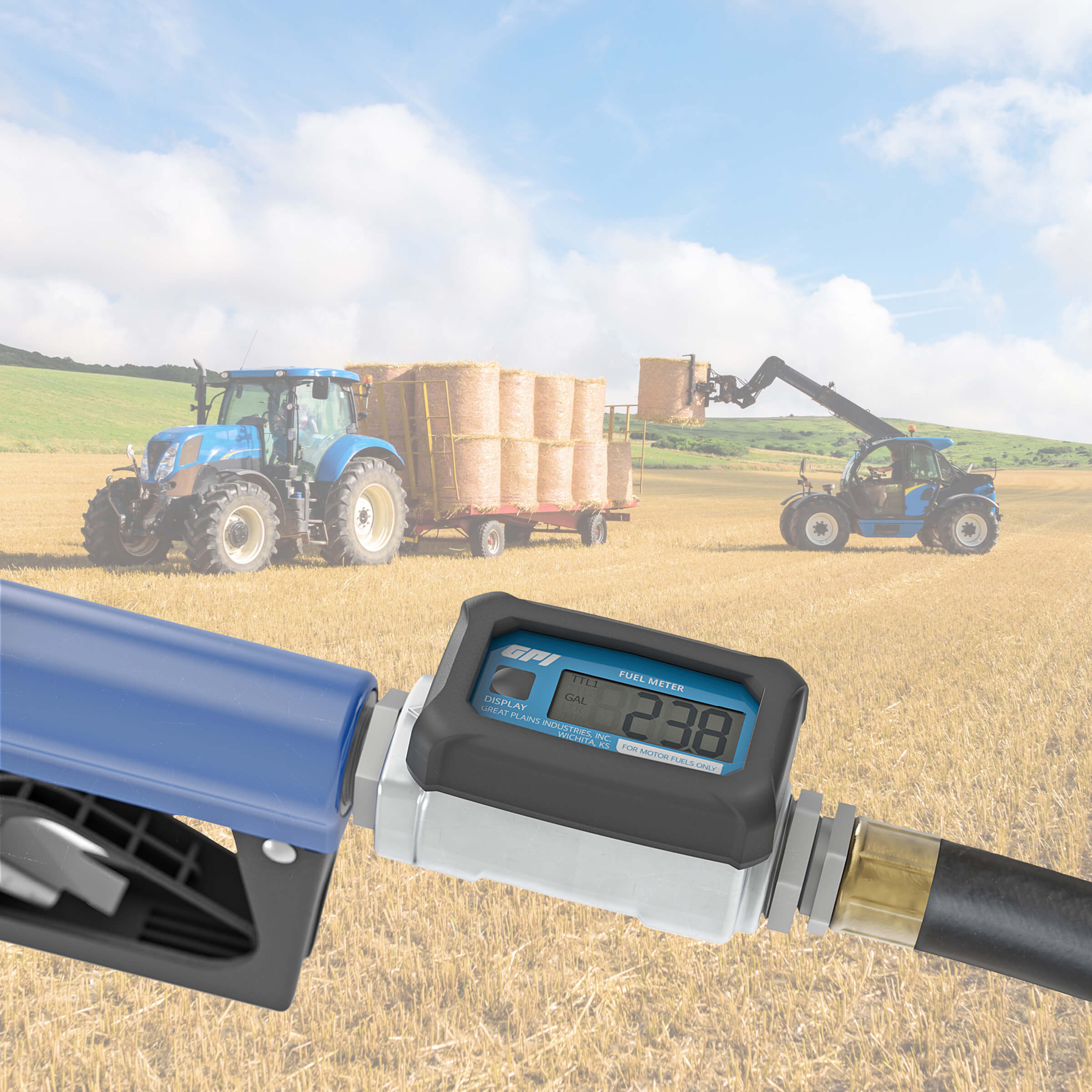

  • Mount directly to the nozzle for easy reading
  • Includes (2) 3/4 in. reducer fittings
  • FM Approved to U.S. and Canadian Standards as intrinsically Safe fr Class 1, Division 1 Groups D.
  • Not for use with water or chemicals.
Pipe Size: 1-inch
Fitting Type: NPT (Female)
Unit of Measure: Gallon
Specifications
Flow Range:
3 - 30 GPM (10-100 L/min)
Accuracy of Reading:
+/- 2.5%
Type:
Turbine
Working Pressure:
300 PSI (20.7 bar)
Max Working Temperature:
14° to 130° F (-10° to 55° C)
Inlet:
1 in. FNPT
Outlet:
1 in. FNPT
Housing:
Corrosion-Resistant Aluminum
Warranty:
2-yr meter warranty
UPC:
031401001730
Approvals:
FM Approved to U.S. and Canadian Standards as Intrinsically Safe for Class 1, Div 1 Groups D
What's in the Box

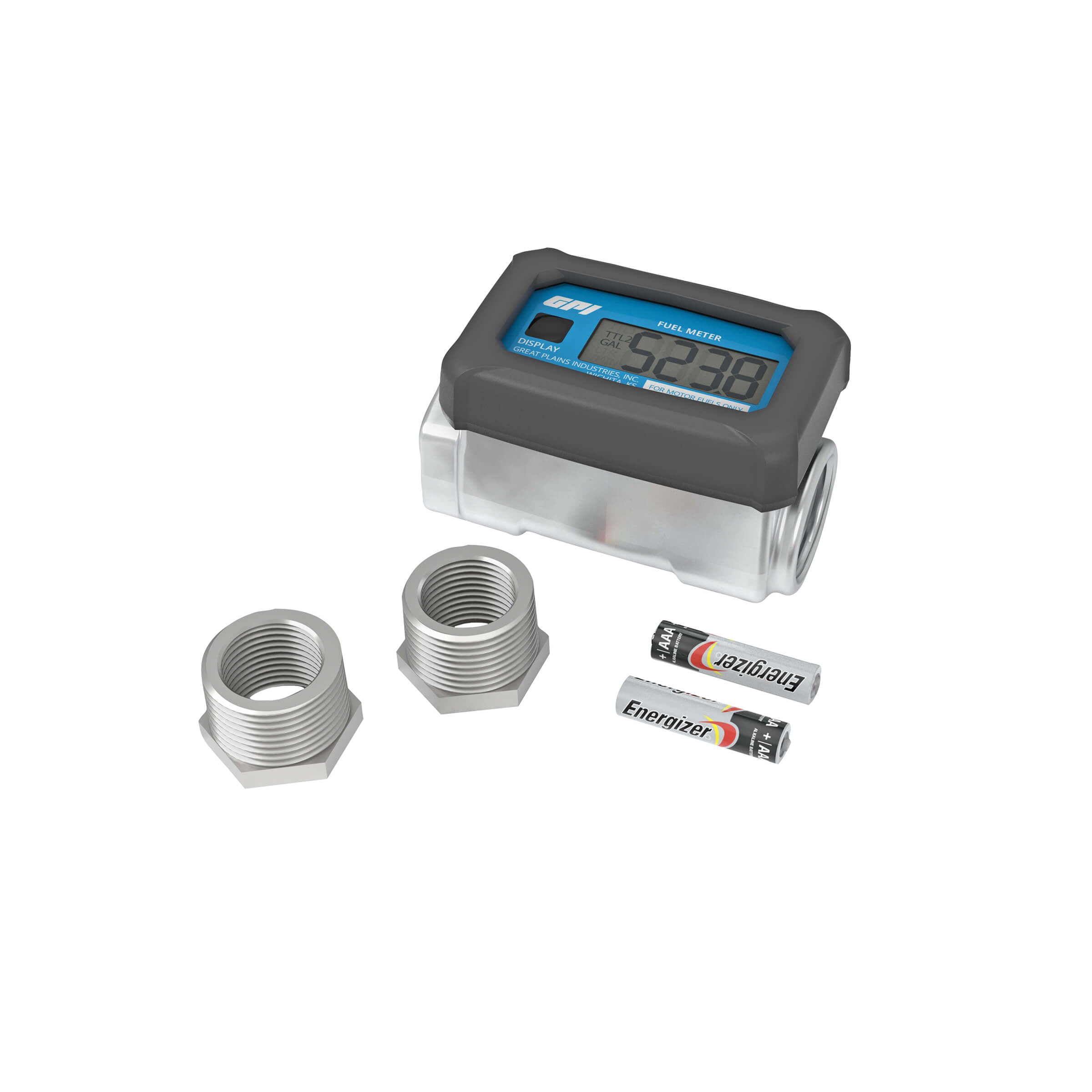

Digital fuel meter, (2) 3/4" reducers, (2) alkaline AAA batteries, Owners Manual
