GPI ^® Heavy Duty Oil Pump Series

Heavy Duty Oil Transfer Pump

Name: Heavy Duty Oil Transfer Pump
Brand: GPI
SKU: 142100-03
Price: 1178.99 USD
Availability: InStock

Starting At

$606.99

Choose Your Model

Item 142100-03

Item 142100-01

Item 142100-02

L5016

L5116

L5132

Voltage: 12V (DC)
Nozzle Type: Spout, Thermoplastic
Mounting Type: Center Base, 2in. male NPT
Dispensing Hose: 8 ft. (2.44 m) x 3/4 in.
Power Cord: 10 gauge 3 wire required, not included

Voltage: 115/230V (AC)
Nozzle Type: Spout, Thermoplastic
Mounting Type: Center Base, 2in. male NPT
Dispensing Hose: 8 ft. (2.44 m) x 3/4 in.
Power Cord: 3 ft. (.91 m)

Voltage: 115/230V (AC)
Nozzle Type: Spout, Thermoplastic
Mounting Type: Center Base, 2in. male NPT
Dispensing Hose: 8 ft. (2.44 m) x 3/4 in.
Power Cord: 3 ft. (.91 m)

Compatible Fuels:
Up to 90W Oil|Hydraulic Fluid|Anti-Freeze

Learn More & Buy

Resources Applications

Owners Manual

L5016
Keep clean with safety in mind in your workshop, garage, or waste oil collection station. The L5016 pump can be used for new oil, waste oil, hydraulic fluid, transmission fluid, engine oil, antifreeze, and other non-flammable oil-based solvents up to 390 CPS.
L5116
GPI’s L5116 heavy duty, high viscosity oil pump has been designed for safe and efficient fluid transfer up to 1,160 CPS within many different industries including textile manufacturing, cosmetic production, heavy industrial equipment, food production, and plastic manufacturing.
L5132
The GPI L5132 high viscosity oil transfer pump is engineered for use with in-house lubricators, drum caddies, and in situations where a dedicated pump is recommended. It is compatible with cutting oils, metalworking fluids, syrup, cooking oil, and other fluids with a maximum viscosity of 970 CPS.

Heavy Duty Oil Pumps Overview

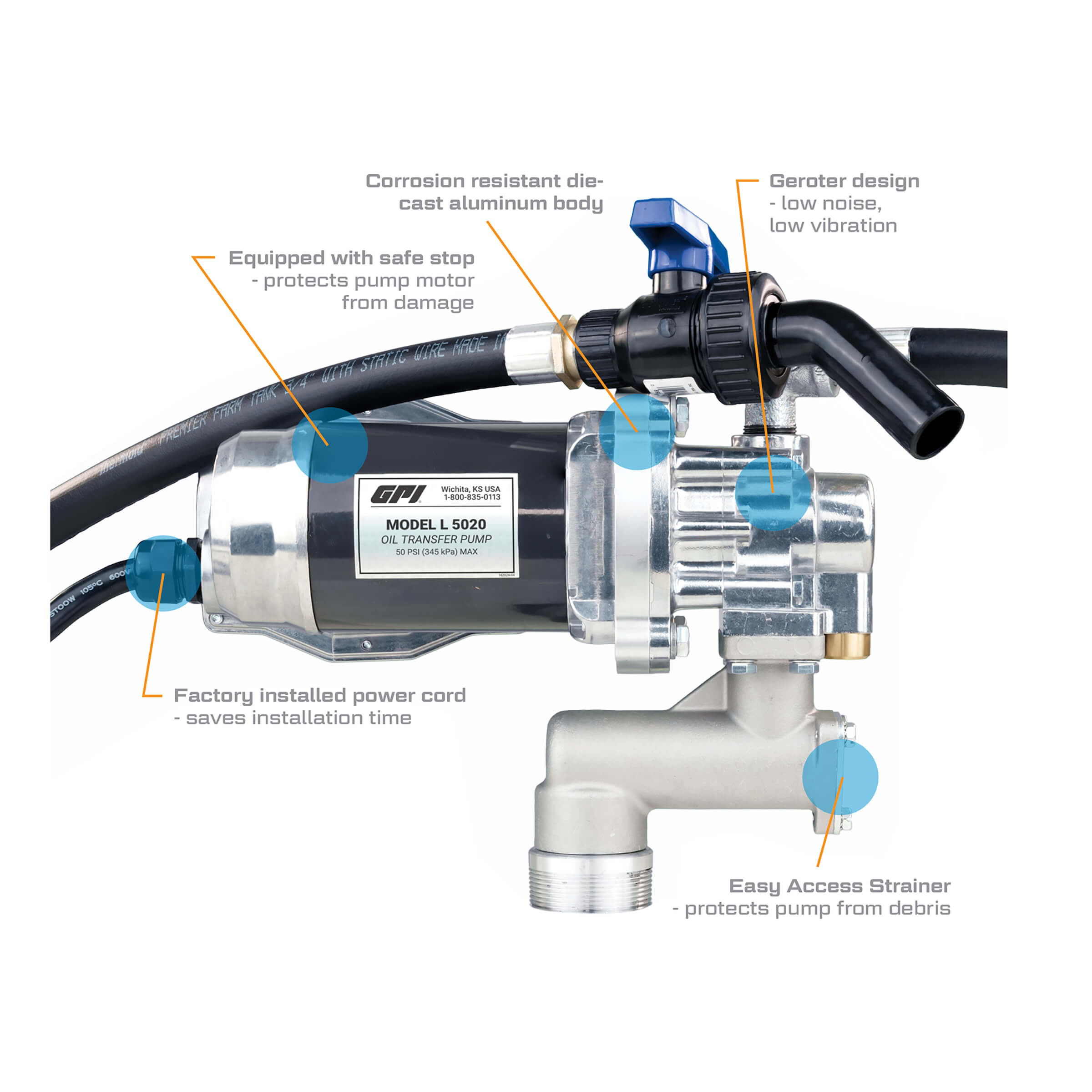

The GPI L5116 oil pump is ideal for use with new oil (up to 90 wt.), waste oil, hydraulic fluid, antifreeze or other non-flammable oil-based solvents. It features a gerotor gear design and durable, light weight cast aluminum housing. With a rugged 115-/230-volt (ac) motor delivering flow rates up to 16 QPM (15 L/min.), it is engineered for long life and limited maintenance. The L5116 complete with a ball valve nozzle, 8-ft. (2.5 m) dispensing hose, a telescoping suction pipe to fit tank depths between 15 in. and 40 in., and three-prong plug-in. The motor is a UL recognized component and CSA approved with a 1-year warranty.

Benefits Include:

Weather-resistant, thermally protected 0.5 HP motor is designed for long life and limited maintenance.
Specifically designed for use with high viscosity fluids.
Thermal limiting motor protection extends motor life.
Weight centering inlet base reduces tank stress includes pressure relief valve and provides easy strainer access.
Specifically designed for use with high viscosity fluids.
Wetted materials: aluminum, stainless steel, brass, steel, nitrile rubber & zinc plated steel.
Motor is UL recognized component and CSA approved. 1-yr warranty.

Weather-resistant, thermally protected 0.5 HP motor is designed for long life and limited maintenance.
Specifically designed for use with high viscosity fluids.
Thermal limiting motor protection extends motor life.
Weight centering inlet base reduces tank stress includes pressure relief valve and provides easy strainer access.
Pre-installed power cord greatly reduces assembly and installation time.
Wetted materials: aluminum, stainless steel, brass, steel, nitrile rubber & zinc plated steel.
Motor is UL recognized component and CSA approved. 1-yr warranty.

Weather-resistant, thermally protected 1 HP motor is designed for long life and limited maintenance.
Specifically designed for use with high viscosity fluids.
Thermal limiting motor protection extends motor life.
Weight centering inlet base reduces tank stress includes pressure relief valve and provides easy strainer access.
Pre-installed power cord greatly reduces assembly and installation time.
Specifically designed for use with high viscosity fluids.
Wetted materials: aluminum, stainless steel, brass, steel, nitrile rubber & zinc plated steel.
Motor is UL recognized component and CSA approved. 1-yr warranty.

Electrical
Input:
12V (DC)
115/230V (AC)
115/230V (AC)
Fuse:
N/A
N/A
N/A
Type:
Gerotor
Gerotor
Gerotor
Motor:
1800, 1/5 hp
1725, 1/2 hp
3450, 1 hp

Performace
Flow Rate:
4 GPM
4 GPM
8 GPM
Duty Cycle:
30 min on/30 min off
30 min on/30 min off
30 min on/30 min off
Working Pressure:
50 PSI (3.45 bar)
50 PSI (3.45 bar)
50 PSI (3.45 bar)
Max Working Temp:
N/A
N/A
N/A

Mechanical
Inlet:
1 in. FNPT
1 in. FNPT
1 in. FNPT
Outlet:
1 in. FNPT
1 in. FNPT
1 in. FNPT
Mounting:
Center Base, 2in. male NPT
Center Base, 2in. male NPT
Center Base, 2in. male NPT

Accessories
Suction Pipe:
Polypropylene, Telescoping 15 to 40in.. x 1in. MNPT
Polypropylene, Telescoping 15 to 40in.. x 1in. MNPT
Polypropylene, Telescoping 15 to 40in.. x 1in. MNPT
Power Cord:
10 gauge 3 wire required, not included
3 ft. (.91 m)
3 ft. (.91 m)
Dispensing Hose:
8 ft. (2.44 m) x 3/4 in.
8 ft. (2.44 m) x 3/4 in.
8 ft. (2.44 m) x 3/4 in.
Nozzle:
Spout, Thermoplastic
Spout, Thermoplastic
Spout, Thermoplastic

Materials
Housing:
Corrosion-Resistant Aluminum
Corrosion-Resistant Aluminum
Corrosion-Resistant Aluminum

Warranty Statement
1-yr
1-yr
1-yr

Approvals
Motor reviewed by UL under supplier model number
Motor reviewed by UL under supplier model number
Motor reviewed by UL under supplier model number

UPC
031401000238
031401000214
031401000221

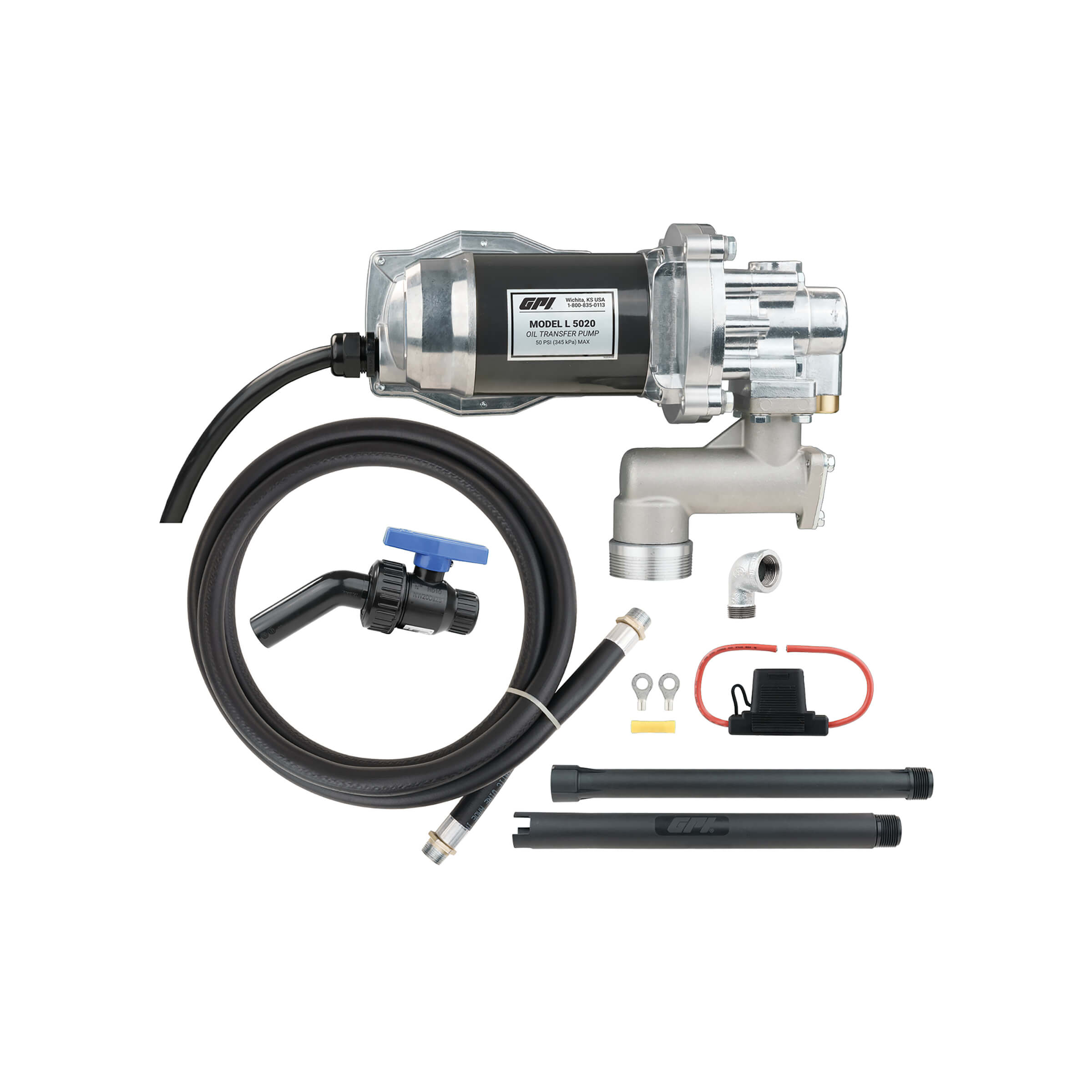

Included in Box:

L5016 12V 16 Q/min pump, Ball valve nozzle, Dispensing hose, Adjustable suction pipe, 90 degree street elbow

L5116 115/230V 16 Q/min pump, Ball valve nozzle, Dispensing hose, Power cord with grounded plug, Adjustable suction pipe, 90 degree street elbow

L5132 115/230V 32 Q/min pump, Ball valve nozzle, Dispensing hose, Power cord with grounded plug, Adjustable suction pipe, 90 degree street elbow
