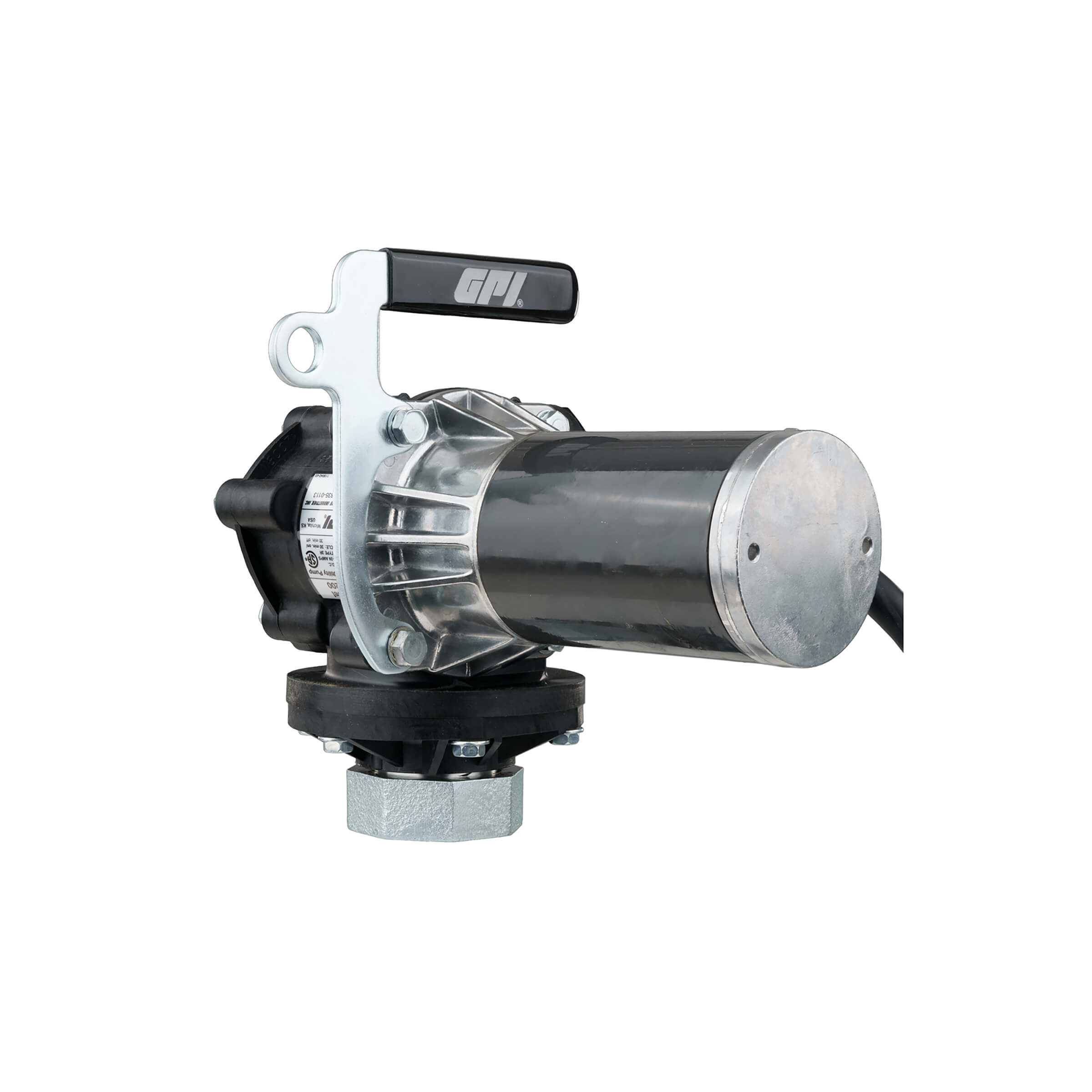

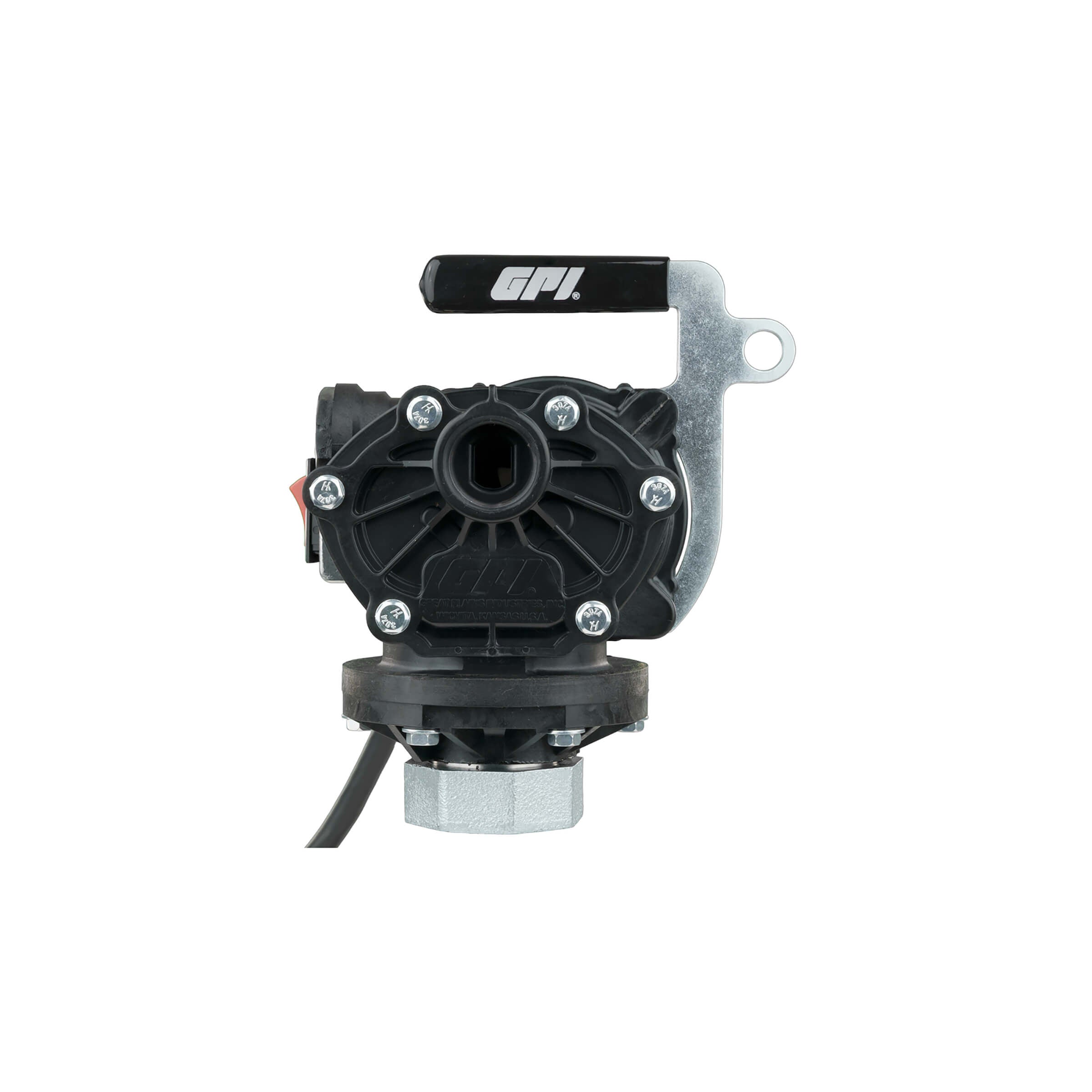

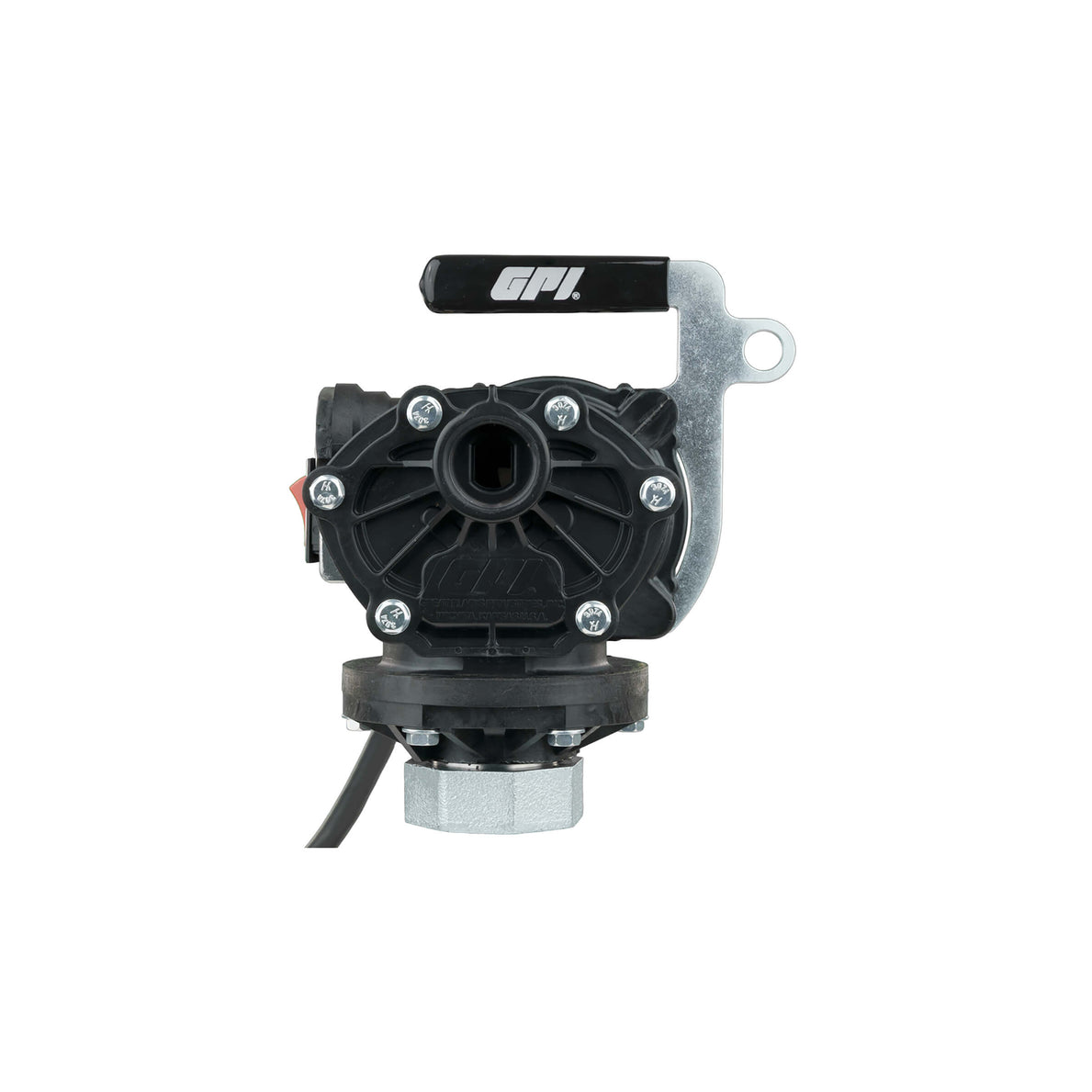

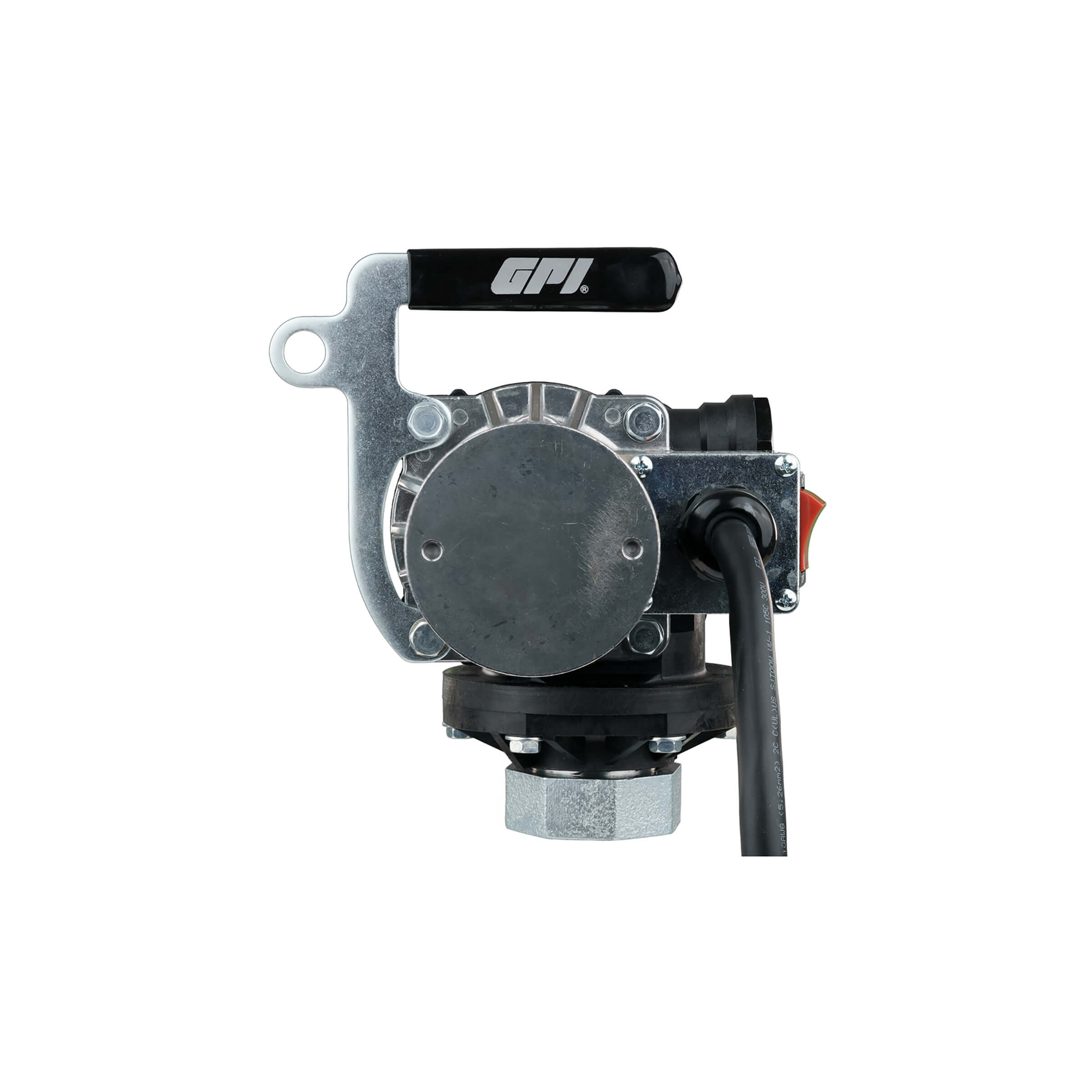

Lightweight Oil Transfer Pump
GPI® Lightweight Oil Pump Series
SKU 118000-9
| MODEL P-200-2UR
| MODEL PA-200-2UR
Original price
$899.99
-
Original price
$1,099.99
Original price
$899.99
$899.99
-
$1,099.99
Current price
$899.99
Recommended for use with these fluids:
Anti-Freeze | Up to 30W Oil | Thin/Medium Petroleum Fluids up to 450 CP | Non-flammable oil-based solvents Anti-Freeze | Up to 30W Oil | Thin/Medium Petroleum Fluids up to 450 CP | Non-flammable oil-based solventsThe GPI Lightweight Oil Transfer Pumps are engineered to deliver flow rates up to 8 GPM (30 L/min) for use with non-flammable oil-based solvents. Designed specifically for thin to medium viscosity petroleum fluids and up to 30W oil. Modeled to move easily between barrels or drums. DO NOT USE with gasoline, diesel fuel, or waste oil.

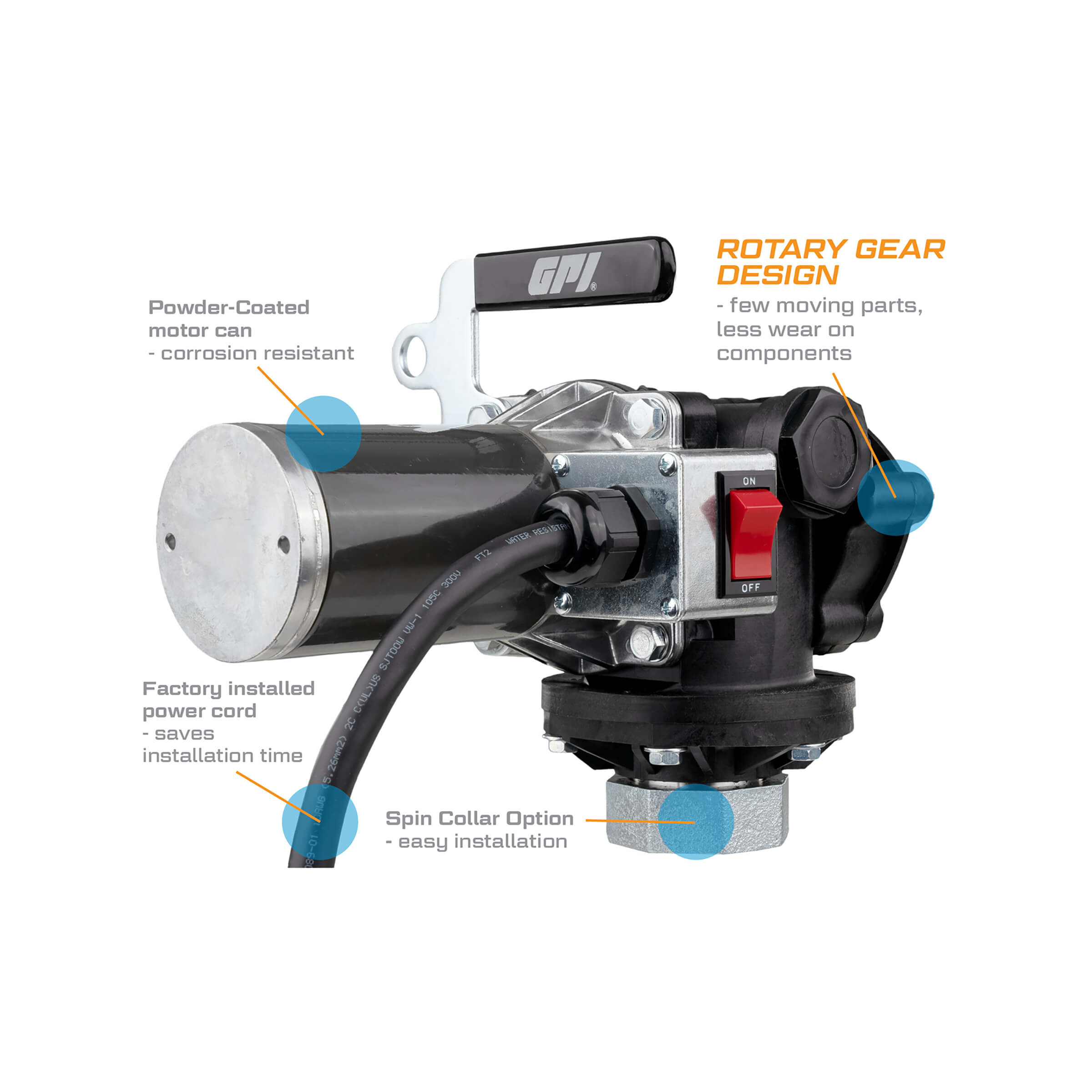

Features & Benefits
- Lightweight design and spin collars makes moving between barrels and drums easy.
- Can be calibrated for gallons or litres;
- Gear pump with durable polypropylene housing.
- Can be calibrated for Gallons or Litres;
- Gear pump with durable polypropylene housing.
- Lightweight design and spin collars makes moving between barrels and drums easy.
Specifications
- Max. Flow Rate:
- 8 GPM (30 L/min)
- Voltage Input:
- 12V (DC)
- Technology:
- Rotary Gear
- Amps Rated:
- 24 amps
- Duty Cycle:
- 30 min on/30 min off
- Power Cord:
- 15 ft. (4.6m), 10 AWG, Factory installed, Ring Terminals
- Max. Discharge Pressure:
- 16 PSI (1.10 bar)
- Operating Temperature:
- -20° F to 125° F (-29° C to 52° C)
- Pump Housing Material:
- Polypropylene
- Wetted Materials:
- 303/304 Stainless Steel | Ferrite | PBT/Polyester | PPS
- Suction Pipe:
- Polypropylene, Telescoping 15 to 40in. x 1in. MNPT
- Inlet:
- 1 in. FNPT
- Outlet:
- 1 in. FNPT
- Dispensing Hose:
- 12 ft. (3.7m) x 1 in. MNPT
- Nozzle:
- Spout, Thermoplastic
- Warranty:
- 2-yr pump warranty
- UPC:
- 031401180091
- Approvals:
- IECEx, ATEX, CE
- Max. Flow Rate:
- 8 GPM (30 L/min)
- Voltage Input:
- 115V (AC) 50/60 Hz
- Technology:
- Rotary Gear
- Amps Rated:
- 3 amps
- Duty Cycle:
- 30 min on/30 min off
- Power Cord:
- Factory-installed 12 in., 18 AWG 3-wire pigtail w/a 3 prong grounded NEMA5-15p plug
- Max. Discharge Pressure:
- 16 PSI (1.10 bar)
- Operating Temperature:
- -20° F to 125° F (-29° C to 52° C)
- Pump Housing Material:
- Polypropylene
- Wetted Materials:
- 303/304 Stainless Steel | Ferrite | PBT/Polyester | PPS
- Suction Pipe:
- Polypropylene, Telescoping 15 to 40in. x 1in. MNPT
- Inlet:
- 1 in. FNPT
- Outlet:
- 1 in. FNPT
- Dispensing Hose:
- 12 ft. (3.7m) x 1 in. MNPT
- Nozzle:
- Spout, Thermoplastic
- Warranty:
- 2-yr pump warranty
- UPC:
- 031401180114
- Approvals:
- IECEx, ATEX, CE
Also Available At
Manuals / Documents
Applications

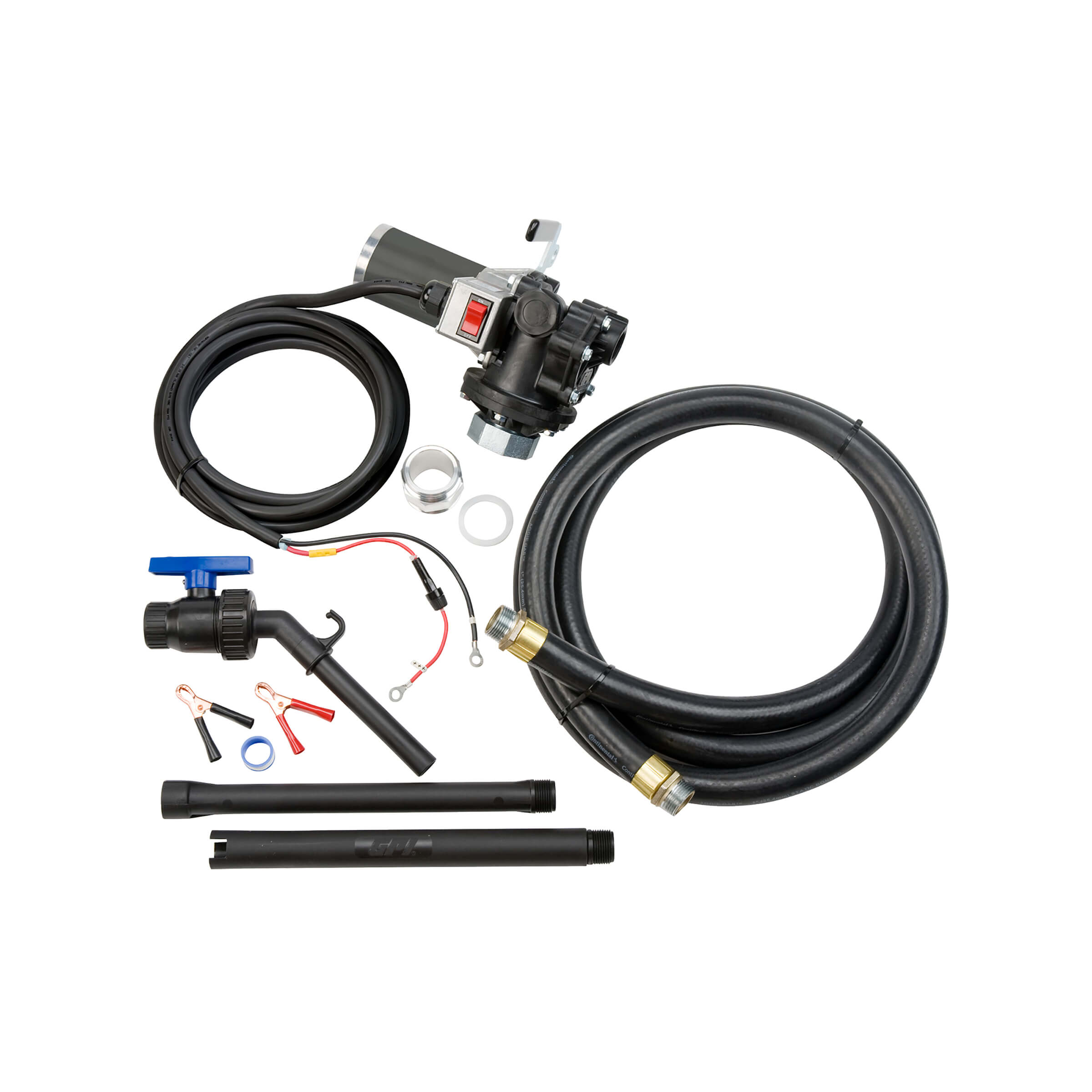

What's in the Box
P-200-2UR Oil transfer pump, Nozzle, Dispensing hose, Power cord, Alligator clips, Telescoping suction pipe
PA-200-2UR Oil transfer pump, Nozzle, Dispensing hose, Power cord, Alligator clips, Telescoping suction pipe
