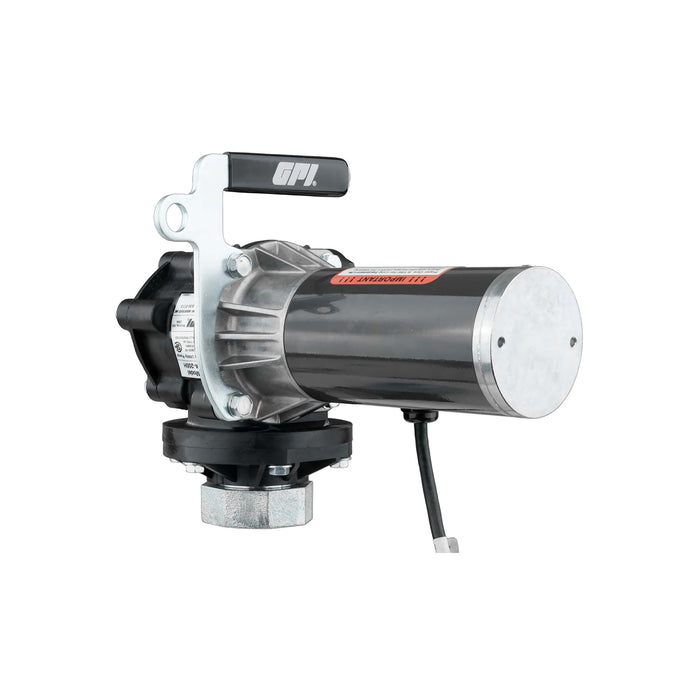

12V and 115V Chemical Transfer Pumps
GPI® Chemical Pump Series
SKU 118602-12
| MODEL PA-200H-TAP
| MODEL PA-120H-2UR
| MODEL PA-200H-2UR
| MODEL P-200H-TAP
| MODEL P-200H-2UR
| MODEL P-120H-2UR
Original price
$699.99
-
Original price
$1,199.99
Original price
$1,199.99
$699.99
-
$1,199.99
Current price
$1,199.99
Fluid Statement
Medium/Thick Chemicals up to 450 CP Medium/Thick Chemicals up to 50 CP Medium/Thick Chemicals up to 450 CP Medium/Thick Chemicals up to 450 CP Medium/Thick Chemicals up to 450 CP Thin Chemicals up to 10 CPThe GPI Chemical Transfer Pump Series is engineered for dispensing, transferring, and applying large amounts of agricultural chemicals in farming, gardening, and landscaping applications. These pumps can be used with “thin” fluids (see viscosity specification for suitability). Portable and tank (or barrel) mount models are available. DO NOT use with gasoline, diesel fuel, or micro-encapsulated chemicals.
Features & Benefits
- CSA Certified
- Designed for use with Medium/Thick Chemicals (10-450 centipoise viscosity)
- Constructed of engineered composite and die-cast aluminum for a lightweight, corrosion-resistant product
- Factory-installed 8-inch, 3-wire pigtail with a grounded plug
- TAP systems have a 6-foot hose threaded into the inlet that can be dropped into tanks
- CSA Certified
- Transfers thin/medium fluids (maximum 50 centipoise viscosity).
- A built-in handle and convenient spin collar make installation quick and easy
- Constructed of engineered composite and die-cast aluminum for a lightweight, corrosion-resistant product
- Factory-installed 12-inch, 3-wire pigtail with a grounded plug
- CSA Certified.
- A built-in handle and convenient spin collar make installation quick and easy
- Constructed of engineered composite and die-cast aluminum for a lightweight, corrosion-resistant product
- Factory-installed 12-inch, 3-wire pigtail with a grounded plug
- CSA Certified.
- Designed for use with medium/thick chemicals (10-450 centipoise viscosity).
- Constructed of engineered composite and die-cast aluminum for a lightweight, corrosion-resistant product
- TAP systems have a 6-foot hose threaded into the inlet that can be dropped into tanks
- CSA Certified.
- Transfer medium/thick fluids (10-450 centipoise viscosity).
- A built-in handle and convenient spin collar make installation quick and easy
- Constructed of engineered composite and die-cast aluminum for a lightweight, corrosion-resistant product
- CSA Certified
- Transfer thin fluids (0-10 centipoise viscosity)
- A built-in handle and convenient spin collar make installation quick and easy
- Constructed of engineered composite and die-cast aluminum for a lightweight, corrosion-resistant product
Specifications
- Input:
- 115V (AC)
- Fuse:
- N/A
- Type:
- Rotary Gear
- Motor RPMs:
- 3250
- Motor HP:
- 1/4
- Flow Rate:
- 12 GPM (45 L/min)
- Duty Cycle:
- 30 min on/30 min off
- Working Pressure:
- 16 PSI (1.10 bar)
- Max Working Temperature:
- -20° F to 125° F (-29° C to 52° C)
- Wetted Materials:
- Acetal (Delrin)
- Inlet:
- 1 in. FNPT
- Outlet:
- 1 in. FNPT
- Mounting Type:
- N/A
- Suction Pipe:
- N/A
- Power Cord:
- N/A
- Dispensing Hose:
- N/A
- Nozzle:
- Not included
- Housing:
- Polypropylene
- Warranty:
- 2-yr
- UPC:
- 031401006315
- Approvals:
- CSA Certified Power-Operated Dispensing Devices for Flammable Liquids
- Input:
- 115V (AC)
- Fuse:
- N/A
- Type:
- Rotary Gear
- Motor RPMs:
- 1375
- Motor HP:
- 1/4
- Flow Rate:
- 12 GPM (45 L/min)
- Duty Cycle:
- 30 min on/30 min off
- Working Pressure:
- 16 PSI (1.10 bar)
- Max Working Temperature:
- -20° F to 125° F (-29° C to 52° C)
- Wetted Materials:
- Acetal (Delrin)
- Inlet:
- Union Ring
- Outlet:
- 1 in. FNPT
- Mounting Type:
- N/A
- Suction Pipe:
- Not included, sold separately
- Dispensing Hose:
- Not included, sold separately
- Nozzle:
- Not included
- Housing:
- Polypropylene
- Warranty:
- 2-yr pump warranty
- UPC:
- 031401180039
- Approvals:
- CSA Certified Power-Operated Dispensing Devices for Flammable Liquids
- Input:
- 115V (AC)
- Fuse:
- N/A
- Type:
- Rotary Gear
- Motor RPMs:
- 3250
- Motor HP:
- 1/4
- Flow Rate:
- 8 GPM (30 L/min)
- Duty Cycle:
- 30 min on/30 min off
- Working Pressure:
- 16 PSI (1.10 bar)
- Max Working Temperature:
- -20° F to 125° F (-29° C to 52° C)
- Wetted Materials:
- 416 Stainless Steel
- Inlet:
- Union Ring
- Outlet:
- 1 in. FNPT
- Mounting Type:
- N/A
- Suction Pipe:
- Not included, sold separately
- Dispensing Hose:
- Not included, sold separately
- Nozzle:
- Not included
- Housing:
- Polypropylene
- Warranty:
- 2-yr pump warranty
- UPC:
- 031401000405
- Approvals:
- CSA Certified Power-Operated Dispensing Devices for Flammable Liquids
- Input:
- 12V (DC)
- Fuse:
- N/A
- Type:
- Rotary Gear
- Motor RPMs:
- 3500
- Motor HP:
- 1/3
- Flow Rate:
- 12 GPM (45 L/min)
- Duty Cycle:
- 30 min on/30 min off
- Working Pressure:
- 16 PSI (1.10 bar)
- Max Working Temperature:
- -20° F to 125° F (-29° C to 52° C)
- Wetted Materials:
- Acetal (Delrin)
- Inlet:
- 1 in. FNPT
- Outlet:
- 1 in. FNPT
- Mounting Type:
- Direct Mount, 2in. MNPT
- Suction Pipe:
- N/A
- Power Cord:
- N/A
- Dispensing Hose:
- N/A
- Nozzle:
- Not included
- Housing:
- Polypropylene
- Warranty:
- 2-yr pump warranty
- UPC:
- 031401186024
- Approvals:
- CSA Certified Power-Operated Dispensing Devices for Flammable Liquids
- Input:
- 12V (DC)
- Fuse:
- 25 amps
- Type:
- Rotary Gear
- Motor RPMs:
- 3500
- Motor HP:
- 1/3
- Flow Rate:
- 8 GPM (30 L/min)
- Duty Cycle:
- 30 min on/30 min off
- Working Pressure:
- 16 PSI (1.10 bar)
- Max Working Temperature:
- -20° F to 125° F (-29° C to 52° C)
- Wetted Materials:
- Acetal (Delrin)
- Inlet:
- Union Ring
- Outlet:
- 1 in. FNPT
- Mounting Type:
- N/A
- Suction Pipe:
- Not included, sold separately
- Dispensing Hose:
- Not included, sold separately
- Nozzle:
- N/A
- Housing:
- Polypropylene
- Warranty:
- 2-yr pump warranty
- UPC:
- 031401118001
- Approvals:
- CSA Certified Power-Operated Dispensing Devices for Flammable Liquids
- Input:
- 12V (DC)
- Fuse:
- 20 amps
- Type:
- Rotary Gear
- Motor RPMs:
- 1650
- Motor HP:
- 1/5
- Flow Rate:
- 12 GPM (45 L/min)
- Duty Cycle:
- 30 min on/30 min off
- Working Pressure:
- 16 PSI (1.10 bar)
- Max Working Temperature:
- -20° F to 125° F (-29° C to 52° C)
- Wetted Materials:
- Acetal (Delrin)
- Inlet:
- Union Ring
- Outlet:
- 1 in. FNPT
- Mounting Type:
- N/A
- Suction Pipe:
- Not included, sold separately
- Dispensing Hose:
- Not included, sold separately
- Nozzle:
- N/A
- Housing:
- Polypropylene
- Warranty:
- 2-yr pump warranty
- UPC:
- 031401180015
- Approvals:
- CSA Certified Power-Operated Dispensing Devices for Flammable Liquids
Manuals / Documents
Applications
What's in the Box
PA-200H-TAP 115V 8 GPM pump, Power cord with grounded plug, Tote-A-Pump assembly
P-120H-2UR 115V 12 GPM pump, Union ring, Power cord with grounded plug
P-2000H-2UR 115V 12 GPM pump, Union ring, Power cord with grounded plug
P-200H-TAP 12V 8 GPM pump, Power cord, Alligator clips, Tote-A-Pump assembly
P-200H-2UR 12V 8 GPM Pump, Union Ring, Power Cord, Alligator Clips
P-120H-2UR 12V 12 GPM pump, Union Ring, Power cord, Alligator clips
