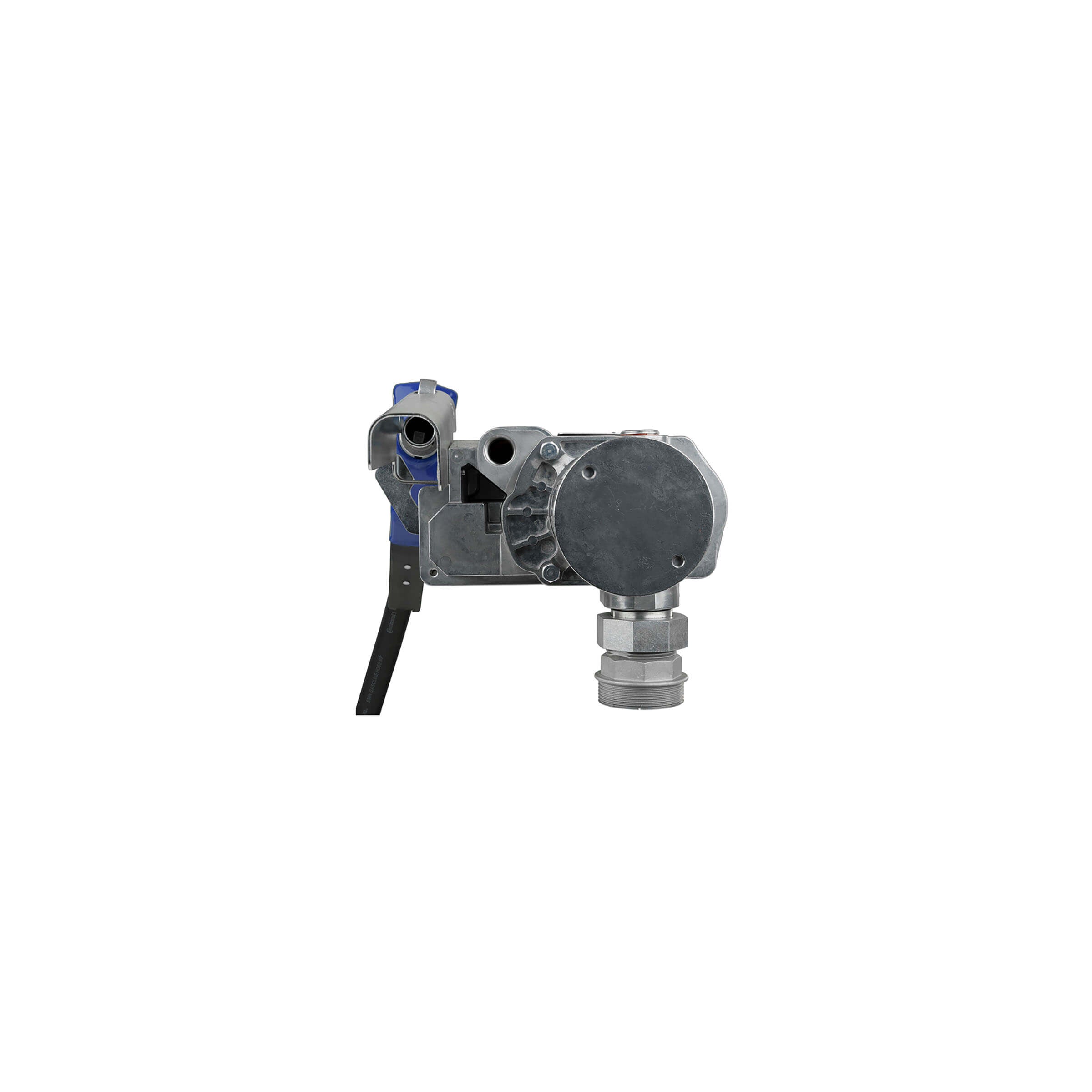

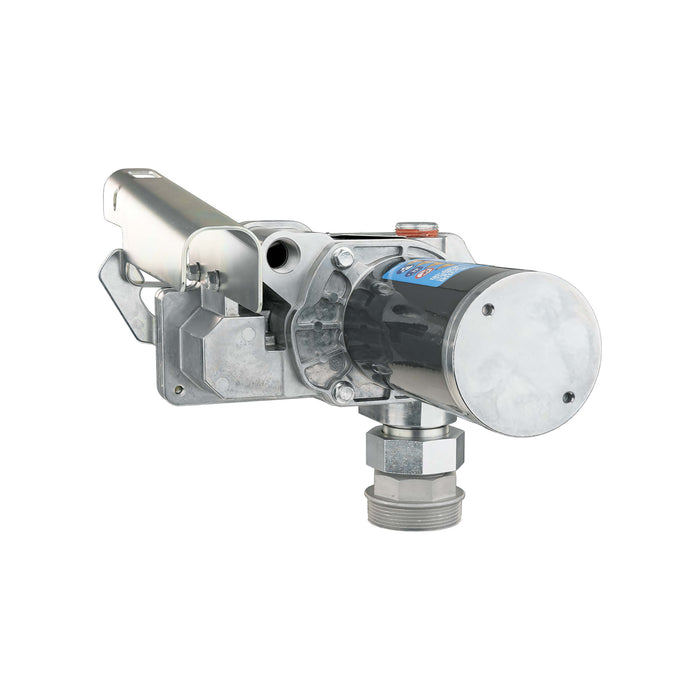

115V 12 GPM Fuel Transfer Pump
GPI® M-1115 Series
Fluid Statement
Gasoline up to E15 | Diesel Fuel up to B20 | Kerosene Gasoline up to E15 | Diesel Fuel up to B20 | Kerosene Gasoline up to E15 | Diesel Fuel up to B20 | Kerosene | Avgas (100LL) | Jet AFeatures & Benefits

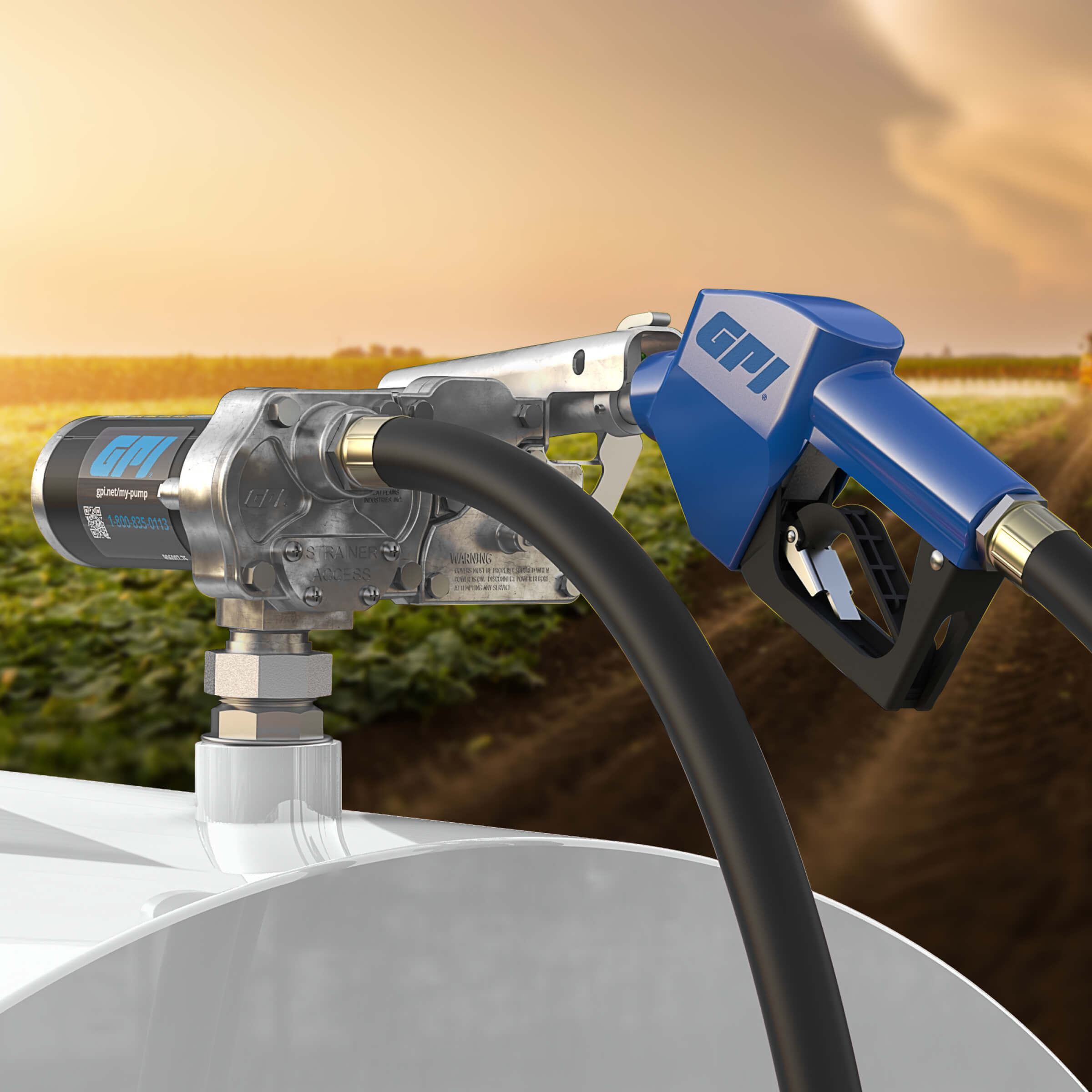

- Designed for stationary locations in fleet, agriculture or industrial applications
- Circuit breaker motor protection extends motor life
- Convenient spin collar for easy installation and versatile pump mounting.
- For use with gasoline, diesel fuel, ethanol blends, and kerosene
- Powder-coated, lightweight aluminum body provides corrosion resistance and reduces tank stress

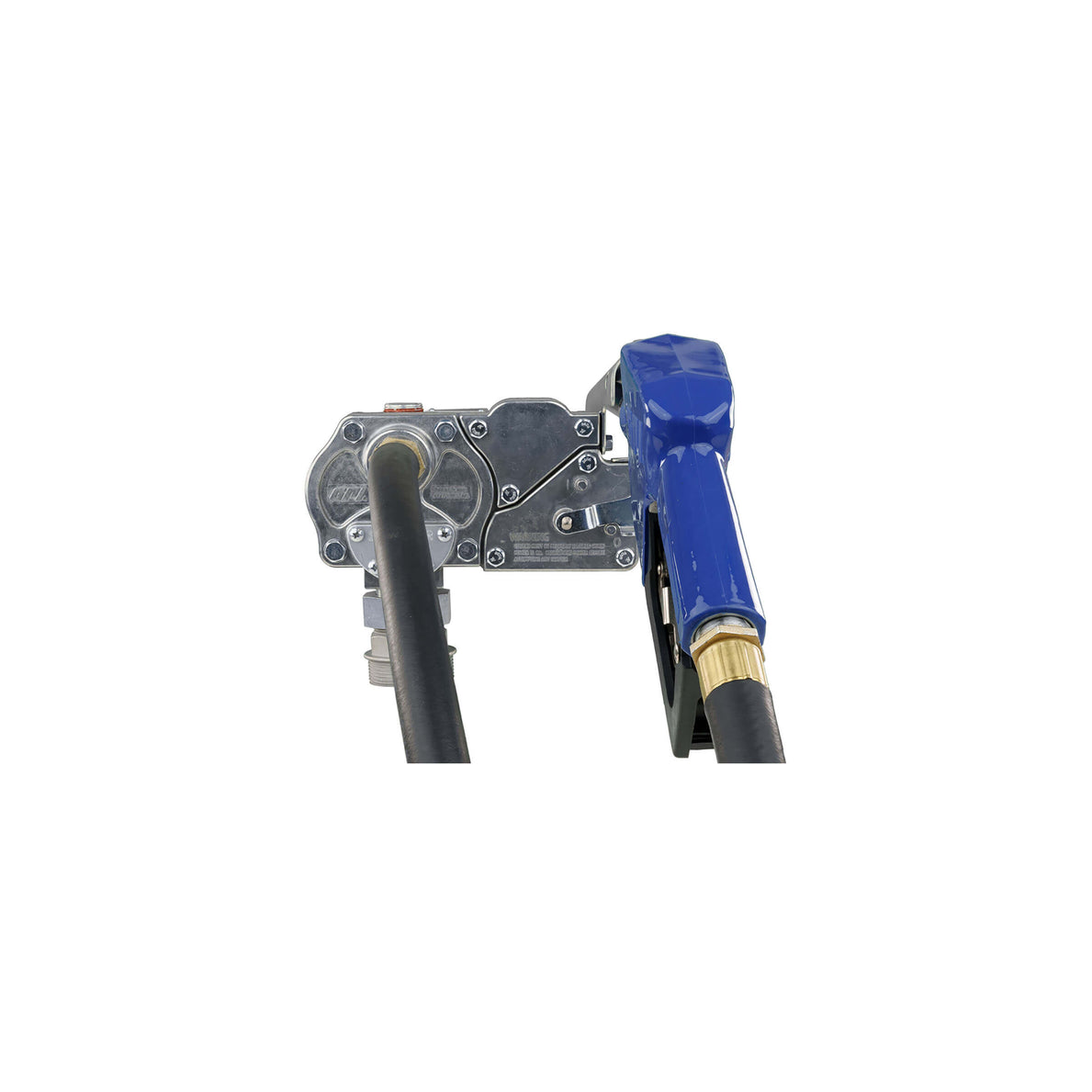

- Lockable nozzle holder protects your investment and deters theft.
- UL Listed and CSA Certified
- 2-year warranty
- Designed for stationary locations in fleet, agriculture or industrial applications
- Circuit breaker motor protection extends motor life
- Convenient spin collar for easy installation and versatile pump mounting.
- For use with gasoline, diesel fuel, ethanol blends, and kerosene
- Powder-coated, lightweight aluminum body provides corrosion resistance and reduces tank stress
- Lockable nozzle holder protects your investment and deters theft.
- UL Listed and CSA Certified
- 2-year warranty
- Designed for stationary locations in fleet, agriculture or industrial applications
- Circuit breaker motor protection extends motor life
- Strainer access for easy maintenance
- Convenient spin collar for easy installation and versatile pump mounting
- Powder-coated, lightweight aluminum body provides corrosion resistance and reduces tank stress
- Lockable nozzle holder protects your investment and deters theft.
- UL Listed and CSA Certified
- For ground-based refueling only. Do not use or mount in or on the aircraft. For use with aviation gasoline (AVGAS 100LL) and kerosene grade (JET A). User should consult NFPA 407 Standard for Aircraft Fuel Servicing for safety requirements during ground fuel servicing of aircraft using liquid petroleum fuels. This product has no actual or implied compliance with this standard.
Specifications
- Flow Range:
- N/A
- Accuracy of Reading:
- N/A
- Input:
- 115V (AC)
- Fuse:
- N/A
- Type:
- Rotary Gear
- Motor RPMs:
- 1400
- Motor HP:
- 1/8
- Flow Rate:
- 12 GPM (45 L/min)
- Duty Cycle:
- 30 min on/30 min off
- Working Pressure:
- 15 PSI (1.03 bar)
- Max Working Temperature:
- -20° F to 125° F (-29° C to 52° C)
- Wetted Materials:
- Aluminum
- Inlet:
- 1 in. FNPT
- Outlet:
- 3/4 in. FNPT
- Mounting Type:
- Spin Collar, 2in. MNPT
- Suction Pipe:
- Polypropylene, Telescoping 15 to 40in. x 1in. MNPT
- Power Cord:
- N/A
- Dispensing Hose:
- 12 ft.(3.7m) x 3/4 in. MNPT
- Nozzle:
- 3/4 in. FNPT Inlet, Automatic Shut-off, Unleaded
- Housing:
- Powder Coated, Corrosion-Resistant Diecast Aluminum
- Warranty:
- 2-yr pump warranty
- UPC:
- 031401110821
- Approvals:
- cULus Motor Listed for Hazardous Locations Class I, Division 1, Group D USA and Canada
- Accuracy of Reading:
- N/A
- Input:
- 115V (AC)
- Fuse:
- N/A
- Type:
- Rotary Gear
- Motor RPMs:
- 1400
- Motor HP:
- 1/8
- Flow Rate:
- 12 GPM (45 L/min)
- Duty Cycle:
- 30 min on/30 min off
- Working Pressure:
- 15 PSI (1.03 bar)
- Max Working Temperature:
- -20° F to 125° F (-29° C to 52° C)
- Wetted Materials:
- Aluminum
- Inlet:
- 1 in. FNPT
- Outlet:
- 3/4 in. FNPT
- Mounting Type:
- Spin Collar, 2in. MNPT
- Suction Pipe:
- Polypropylene, Telescoping 15 to 40in. x 1in. MNPT
- Power Cord:
- N/A
- Dispensing Hose:
- 12 ft.(3.7m) x 3/4 in. MNPT
- Nozzle:
- 3/4 in. FNPT Inlet, Manual Shut-off, Unleaded
- Housing:
- Powder Coated, Corrosion-Resistant Diecast Aluminum
- Warranty:
- 2-yr pump warranty
- UPC:
- 031401110814
- Approvals:
- cULus Motor Listed for Hazardous Locations Class I, Division 1, Group D USA and Canada
- Flow Range:
- N/A
- Accuracy of Reading:
- N/A
- Input:
- 115V (AC)
- Fuse:
- N/A
- Type:
- Rotary Gear
- Motor RPMs:
- 1400
- Motor HP:
- 1/8
- Flow Rate:
- 12 GPM (45 L/min)
- Duty Cycle:
- 30 min on/30 min off
- Working Pressure:
- 15 PSI (1.03 bar)
- Max Working Temperature:
- -20° F to 125° F (-29° C to 52° C)
- Wetted Materials:
- Aluminum
- Inlet:
- 1 in. FNPT
- Outlet:
- 3/4 in. FNPT
- Mounting Type:
- Spin Collar, 2in. MNPT
- Suction Pipe:
- Not included, sold separately
- Power Cord:
- Power cord Not Included, Sold Separately
- Dispensing Hose:
- Not included, sold separately
- Nozzle:
- Not included
- Housing:
- Powder Coated, Corrosion-Resistant Diecast Aluminum
- Warranty:
- 2-yr pump warranty
- UPC:
- 031401002539
- Approvals:
- cULus Motor Listed for Hazardous Locations Class I, Division 1, Group D USA and Canada
