Digital Chemical Meter
GPI® FM300 Series
SKU 120000-1
| MODEL FM-300H-G8N
| MODEL FM-300H-L8N
Original price
$399.99
-
Original price
$399.99
Original price
$399.99
$399.99
-
$399.99
Current price
$399.99
Fluid Statement

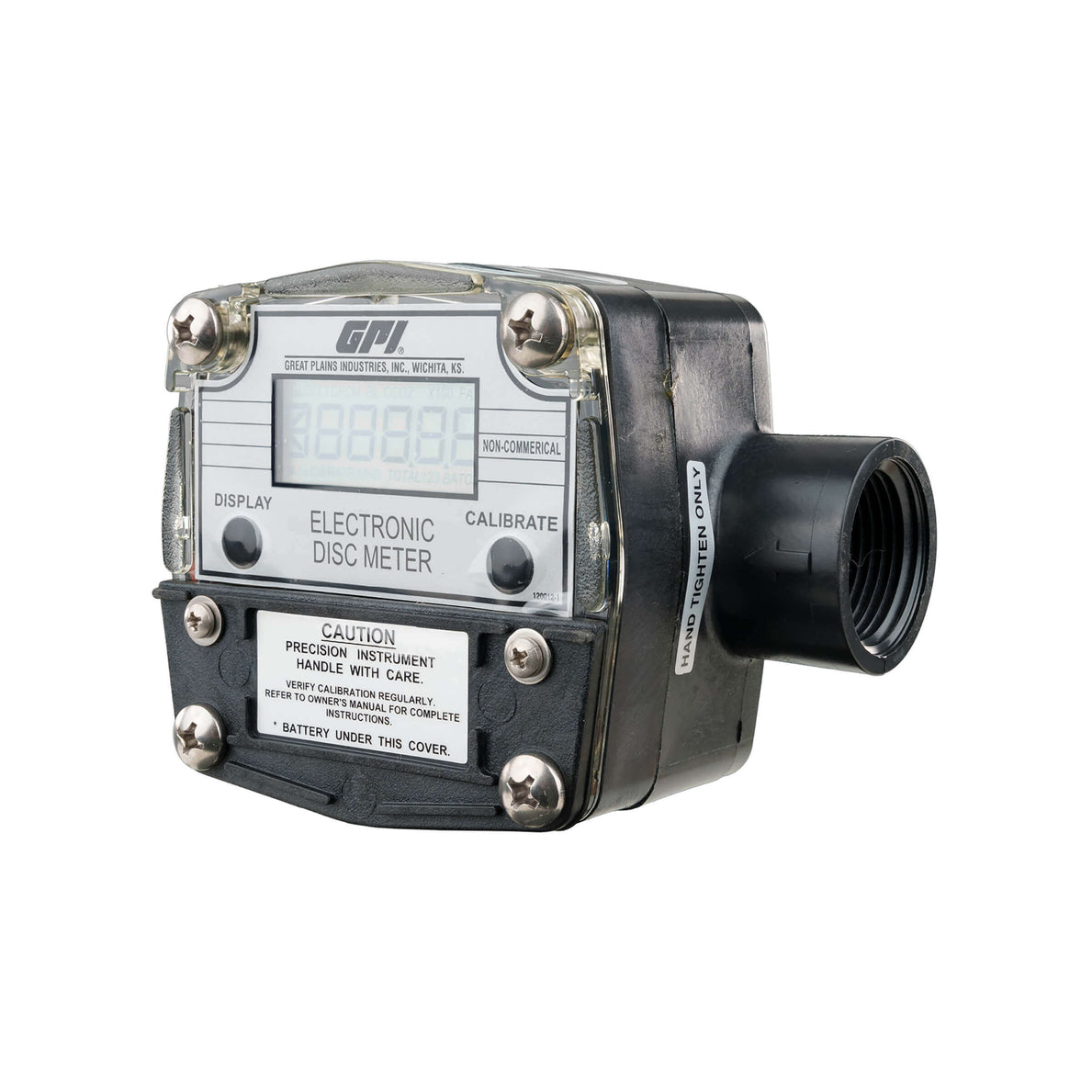

Water | DEF (Diesel Exhaust Fluid) | Mild Chemicals Water | DEF (Diesel Exhaust Fluid) | Mild ChemicalsThe GPI FM-300H Digital Chemical Meter is designed for use with most herbicides and other chemicals compatible with meter materials. This chemical meter measures flow rates from 2-20 GPM (7-76 L/min). The FM-300H mounts easily on hose end, pump, or fluid transfer system, and features an electronic display that keeps batch and cumulative totals. This meter meets ISO 22241-2 Annex C, D, E, F, G, H, I, Diesel Exhaust Fluid (DEF)/Adblue standards.
Features & Benefits
- Electronic display keeps Batch & Cumulative totals.
- Mounts easily on hose end, pump or fluid transfer system.
- Electronic display keeps Batch & Cumulative totals.
- Mounts easily on hose end, pump or fluid transfer system.
Specifications
- Flow Range:
- 2 - 20 GPM (7-76 L/min)
- Accuracy of Reading:
- +/- 2%
- Type:
- Nutating Disc
- Working Pressure:
- 50 PSI (3.45 bar)
- Max Working Temperature:
- 14° to 130° F (-10° to 55° C)
- Inlet:
- 1 in. FNPT
- Outlet:
- 1 in. FNPT
- Housing:
- PBT Polyester
- Warranty:
- 2-yr meter warranty
- UPC:
- 031401111095
- Approvals:
- CE. Complies with the requirements of the EMC Directive 89/336/EEC.
- Flow Range:
- 2 - 20 GPM (7-76 L/min)
- Accuracy of Reading:
- +/- 2%
- Type:
- Nutating Disc
- Working Pressure:
- 50 PSI (3.45 bar)
- Max Working Temperature:
- 14° to 130° F (-10° to 55° C)
- Inlet:
- 1 in. FNPT
- Outlet:
- 1 in. FNPT
- Housing:
- PBT Polyester
- Warranty:
- 2-yr meter warranty
- UPC:
- 031401009828
- Approvals:
- CE. Complies with the requirements of the EMC Directive 89/336/EEC.
Manuals / Documents
Applications
What's in the Box
Digital chemical meter, (1) 9V battery, Owners manual
Digital chemical meter, (1) 9V battery, Owners manual
