GPI 8 GPM 12V Fuel Transfer Pump
GPI® EZ-8 Series
SKU 137100-05
| MODEL EZ-8 with Spin Collar
| MODEL EZ-8
Original price
$0
Original price
$329.99
-
Original price
$349.99
Original price
Current price
$349.99
$329.99
-
$349.99
Current price
$349.99
Recommended for use with these fuels:

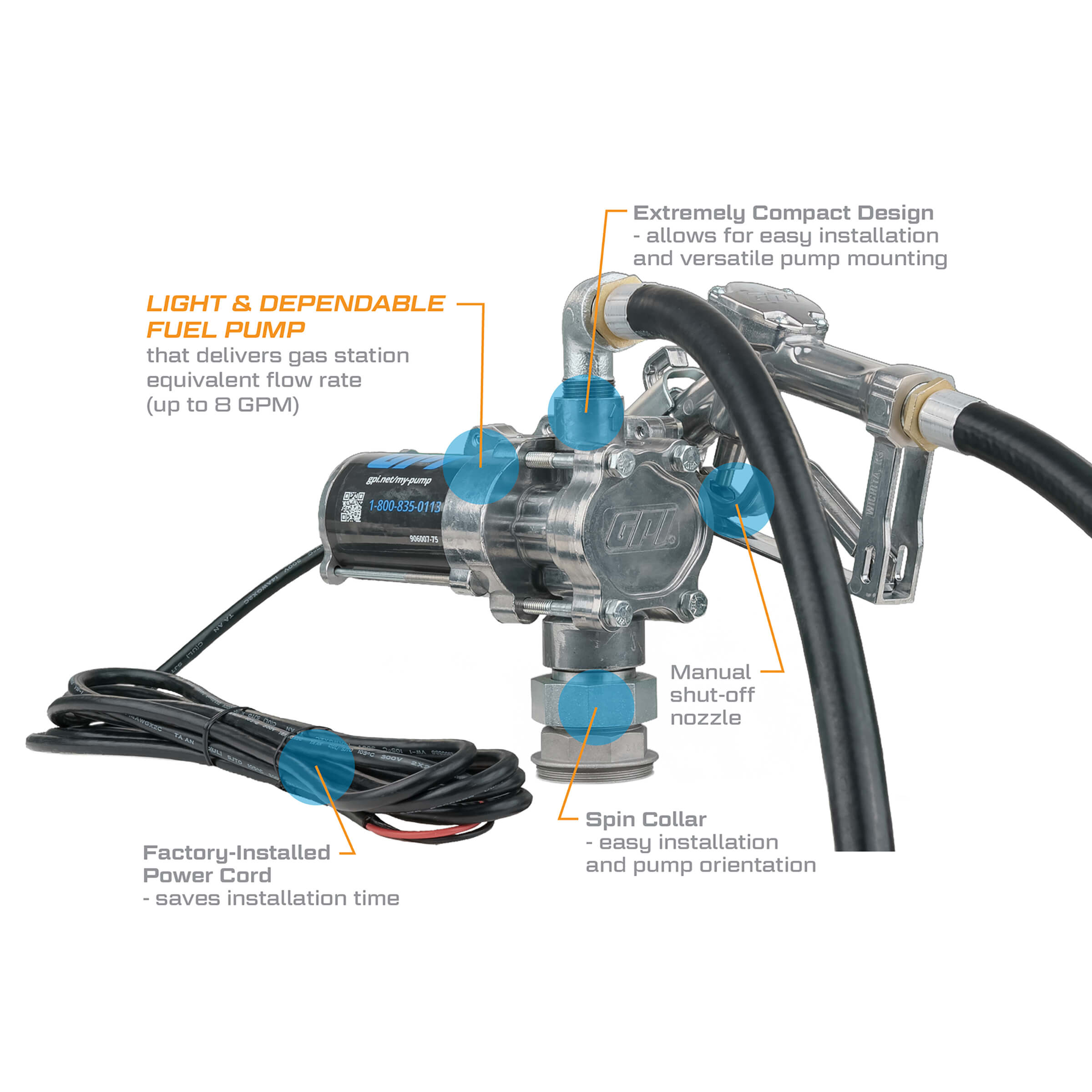

Gasoline up to E15 | Diesel Fuel up to B20 | Kerosene Gasoline up to E15 | Diesel Fuel up to B20 | KeroseneThe GPI 12V DC EZ-8 Fuel Transfer Pump Series is the pump of choice for refueling recreational vehicles featuring a rotary gear design made from durable, lightweight corrosion-resistant diecast aluminum. The 12V DC motor delivers gas station equivalent flow rates of up to 8 GPM for gasoline, diesel fuel, ethanol blends, and kerosene. It is the perfect pump for on-the-go fueling for agriculture and automotive applications. Mount this dependable pump to fuel drums or tanks, and you are ready to go off-roading, cruise the lake, or achieve "yard of the week" mowing status. Spin collar and direct mount models available. If you are looking for an ECI5 (EZ-8 RV) pump, please contact ECI Fuel Systems
Features & Benefits
- Gas station equivalent flowrate (up to 8 GPM). Self-priming low maintenance design
- Extremely lightweight design, less stress small tanks and barrels
- Installs easily with spin collar mount.
- Powder-coated motor can and aluminum body is corrosion resistant.
- For use with gasoline, diesel fuel, ethanol blends, and kerosene
- Thermal overload protection extends pump life.
- Motor U.L. listed to U.S. and Canadian standards
- 2-year warranty
- Gas station equivalent flowrate (up to 8 GPM). Self-priming low maintenance design
- Extremely lightweight design, less stress on small tanks and barrels
- Easy installation and direct tank mounting
- Powder-coated motor can and aluminum body provides corrosion resistance.
- Thermal overload protection extends pump life
- Motor U.L. listed to U.S. and Canadian standards
- 2-yr pump warranty
Specifications
- Max. Flow Rate:
- 8 GPM (30 L/min)
- Voltage Input:
- 12V (DC)
- Technology:
- Rotary Gear
- Amps Rated:
- 15 amps
- Duty Cycle:
- 15 min on / 30 min off
- Power Cord:
- 15 ft. (4.6m), 14/2 AWG, Factory Installed
- Max. Discharge Pressure:
- 15 PSI (1.03 bar)
- Operating Temperature:
- -20° F to 125° F (-29° C to 52° C)
- Suction Lift:
- Up to 5 ft. (1.5m) at Sea Level 70° F (21.1° C)
- Discharge Lift:
- Up to 10 ft. (3 m) at Sea Level 70°F (21.1° C)
- Pump Housing Material:
- Powder Coated, Corrosion-Resistant Diecast Aluminum
- Wetted Materials:
- Acetal | Aluminum | FKM | NBR | PPS | Stainless Steel
- Mounting Type/Thread:
- Spin Collar, 2in. MNPT
- Suction Pipe:
- Polypropylene, Telescoping 15 to 40in. x 1in. MNPT
- Inlet:
- 1 in. FNPT
- Outlet:
- 3/4 in. FNPT
- Dispensing Hose:
- 10 ft. (3.05m) x 3/4 in. MNPT
- Nozzle:
- 3/4 in. FNPT Inlet, Manual Shut-off, Unleaded
- Nozzle Holder Type:
- Non-lockable
- Warranty:
- 2-yr pump warranty
- UPC:
- 031401137101
- Approvals:
- cULus Motor Listed for Hazardous Locations Class I, Division 2, Group D USA and Canada
- Max. Flow Rate:
- 8 GPM (30 L/min)
- Voltage Input:
- 12V (DC)
- Technology:
- Rotary Gear
- Amps Rated:
- 15 amps
- Duty Cycle:
- 15 min on / 30 min off
- Power Cord:
- 15 ft. (4.6m), 14/2 AWG, Factory Installed
- Max. Discharge Pressure:
- 15 PSI (1.03 bar)
- Operating Temperature:
- -20° F to 125° F (-29° C to 52° C)
- Suction Lift:
- Up to 5 ft. (1.5m) at Sea Level 70° F (21.1° C)
- Discharge Lift:
- Up to 10 ft. (3 m) at Sea Level 70°F (21.1° C)
- Pump Housing Material:
- Corrosion-Resistant Diecast Aluminum
- Wetted Materials:
- Acetal | Aluminum | FKM | NBR | PPS | Stainless Steel
- Mounting Type/Thread:
- Direct Mount, 2in. MNPT
- Suction Pipe:
- Polypropylene, Telescoping 15 to 40in. x 1in. MNPT
- Inlet:
- 1 in. FNPT
- Outlet:
- 3/4 in. FNPT
- Dispensing Hose:
- 10 ft. (3.05m) x 3/4 in. MNPT
- Nozzle:
- 3/4 in. FNPT Inlet, Manual Shut-off, Unleaded
- Nozzle Holder Type:
- Non-lockable
- Warranty:
- 2-yr pump warranty
- UPC:
- 031401137101
- Approvals:
- cULus Motor Listed for Hazardous Locations Class I, Division 2, Group D USA and Canada
Also Available At
Manuals / Documents
Applications
- Filling Small Tanks
- Replace your gas can or siphon with a sturdy 8 Gallon per minute fuel transfer pump from GPI. THE EZ-8 is a handy way to save time and effort refueling small tanks.
- Recreational
- Whether you own an ATV, golf cart, snowmobile, Jet Ski, fishing boat or just need to transfer gasoline around your property, the GPI EZ-8 hand held gasoline pump is for you. Its durable design and ease of installation makes this a convenient tool to keep in your garage or hunting cabin.
- Lawn
- From lawn mowers to snow blowers, the EZ-8 is perfect for refilling all of your outdoor tools.
- Landscape Equipment
- This durable gasoline transfer pump is great for hobby farms, commercial harvesters and landscaping equipment. The GPI EZ-8 is made of die-cast aluminum with a powder-coated motor can for corrosion resistance.

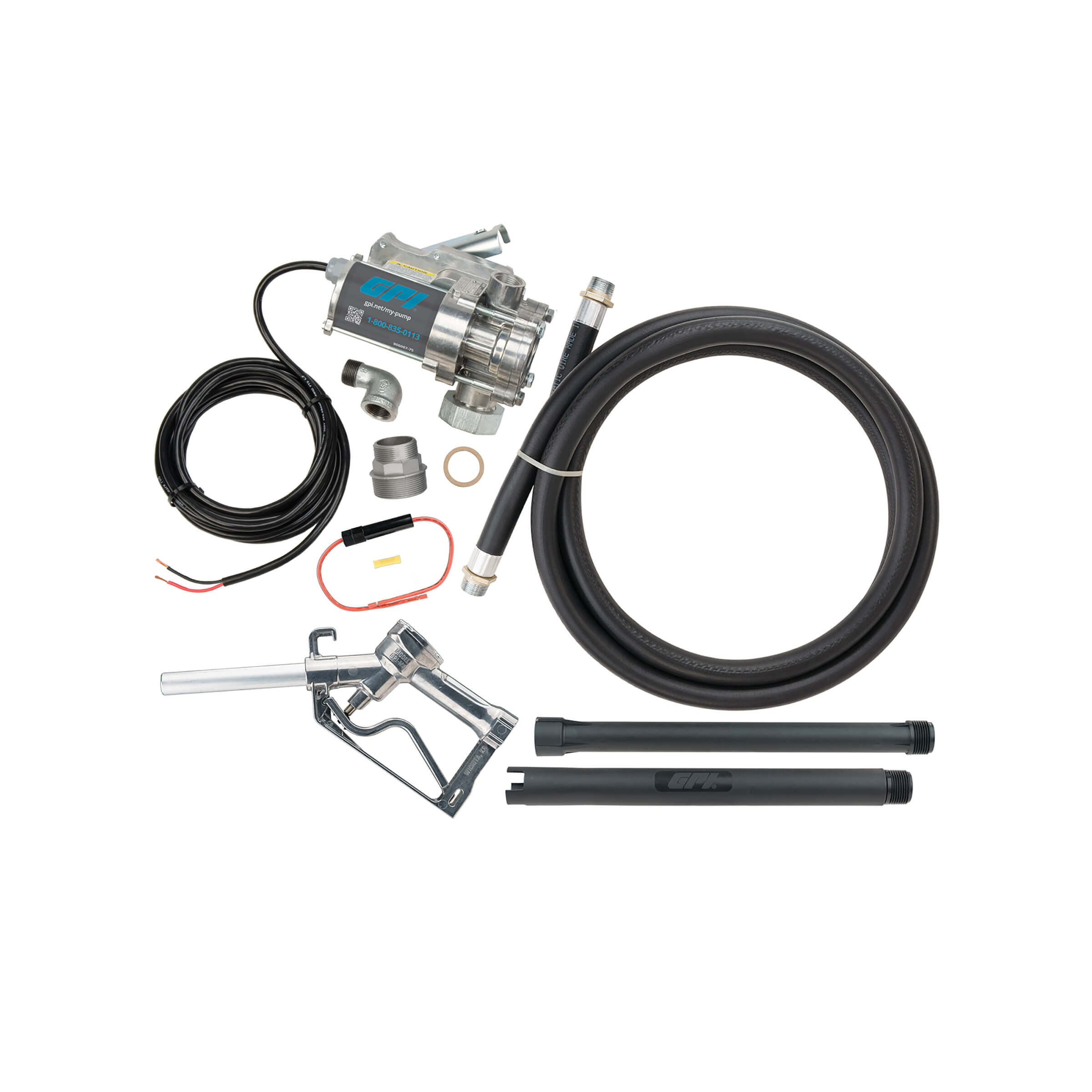

What's in the Box
EZ-8 8 GPM pump with spin collar, manual unleaded nozzle, dispensing hose w/static wire, factory-installed power cord, telescoping suction pipe, street elbow, tank adapter, fuse assembly, owners manual.
EZ-8 8 GPM pump, manual unleaded nozzle, dispensing hose w/static wire, factory-installed power cord, telescoping suction pipe, street elbow, tank adapter, fuse assembly, owners manual.
