GPI^® RP-10

10 Gallon per 100 Revolutions Rotary Action Fluid Transfer Hand Pump

Name: 10 Gallon per 100 Revolutions Rotary Action Fluid Transfer Hand Pump
Brand: GPI
SKU: 123000-06
Price: 209.99 USD
Availability: OutOfStock

Choose Your Model

Item 123000-06

RP-10-UL

Voltage: N/A
Nozzle Type: Metal spout with built-in holder
Mounting Type: Direct Mount, 2in. male NPT
Dispensing Hose: 8 ft. (2.44 m) x 3/4 in.
Power Cord: N/A

Compatible Fuels:
Gasoline up to E15|Diesel up to B20|Kerosene|Hydraulic Fluid|Up to 30W Oil

Learn More & Buy

Resources Applications

Owners Manual

Construction
Agriculture
Other Industries

RP-10 Overview

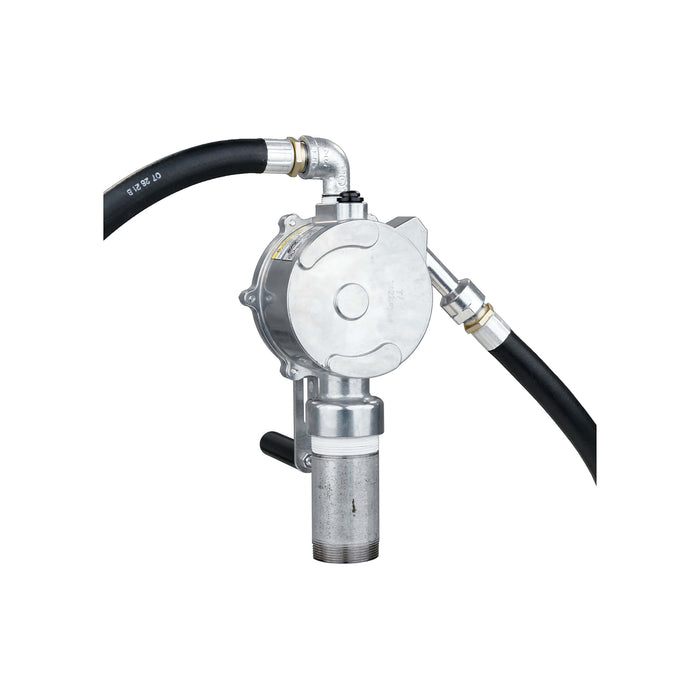

The GPI RP-10 fluid transfer hand pump is a rotary action pump designed for direct mounting on portable tanks, drums, or barrels for the transfer of gasoline, diesel fuel, kerosene, oil (up to 30W), and hydraulic fluid. This hand pump delivers up to 10 gallons (38 Litres) per 100 revolutions. The RP-10 is the perfect pump for construction, agriculture, and other industries where maximum versatility and portability are important.

Benefits Include:

Built-in strainer and anti-siphon valve.
Lockable handle deters fluid theft.
Light-weight aluminum body provides corrosion resistance and reduces tank stress.
90° street elbow reduces dispensing hose strain.
Fits a 2 in. NPT bung.
For use with gasoline (alcohol blends up to E15), diesel fuel (diesel blends to B20), kerosene, oil (up to 30W), and hydraulic fluid.
UL Listed
2-year warranty

will pump

performs as advertised, hopefully, this one won't suffer internal failure from corrosion, as the last one did

Hi Howard,

RP stands for Rotary Pump, not Reversible Pump. This has always been its name. The RP-10 has an integrated anti-siphon vent on top of the pump to prevent the pump from operating in reverse and backflowing potentially contaminated fuels back to the storage tank. It has included this feature since the introduction of the product.

There have been OEM applications over the years that have defeated the anti-siphon vent on the pump in order to put the product on applications where reverse flow was desired. This is not a modification that is recommend by GPI for common applications.

Electrical
Input:
N/A
Fuse:
N/A
Type:
Rotary
Motor:
N/A, N/A hp

Performace
Flow Rate:
Up to 10 gallons per 100 revolutions
Duty Cycle:
N/A
Working Pressure:
N/A
Max Working Temp:
-20° F to 125° F (-29° C to 52° C)

Mechanical
Inlet:
1 in. FNPT
Outlet:
3/4 in. FNPT
Mounting:
Direct Mount, 2in. male NPT

Accessories
Suction Pipe:
Polypropylene, Telescoping 15 to 40in.. x 1in. MNPT
Power Cord:
N/A
Dispensing Hose:
8 ft. (2.44 m) x 3/4 in.
Nozzle:
Metal spout with built-in holder

Materials
Housing:
Corrosion-Resistant Aluminum

Warranty Statement
2-yr pump warranty

Approvals
UL Listed Hand Operated Pump for Flammable and Combustible Liquids Per UL Subject 124

UPC
031401123067

Included in Box:

Includes he RP-10-UL Up to 10 gallons per 100 revolutions hand pump, anti-siphon valve, dispensing hose, telescoping suction pipe, nozzle, bung adapter, handle locking cable
