GPI 15 GPM 12V Fuel Transfer Pump
GPI® M-150 Series
SKU 110000-100
| MODEL M-150S-AU
| MODEL M-150S-MU
| MODEL M-150S-EM
| MODEL M-150S-PO
| MODEL M-150S-E-PO
| MODEL M-150-AU W/FILTER
Original price
$349.99
-
Original price
$589.99
Original price
$529.99
$349.99
-
$589.99
Current price
$529.99
Recommended for use with these fuels:
Gasoline up to E15 | Diesel Fuel up to B20 | Kerosene Gasoline up to E15 | Diesel Fuel up to B20 | Kerosene Gasoline up to E15 | Diesel Fuel up to B20 | Kerosene Gasoline up to E15 | Diesel Fuel up to B20 | Kerosene | Avgas (100LL) | Jet A | Jet A-1 Gasoline up to E15 | Diesel Fuel up to B20 | Kerosene | Avgas (100LL) | Jet A | Jet A-1 Gasoline up to E15 | Diesel Fuel up to B20 | Kerosene
The GPI M-150S Fuel Transfer Pump is the best-selling retail fuel transfer pump, providing longer run times and award-winning performance year-over-year. Delivering flow rates up to 15 GPM (57 L/min), available in five pump models, the M-150 Series is the pump of choice for agricultural, automotive, and construction applications dispensing gasoline, diesel fuel, and kerosene. Available in a wide selection of configurations with an automatic or manual nozzle, mechanical meter combination, lockable or standard nozzle holders, and a variety of fuel hose lengths. Whether you are harvesting crops, gearing up for your next race, or refueling your fleet of mowers, our M-150 provides reliable flow rates with minimal downtime.
Features & Benefits
- DURABLE ALUMINUM HOUSING: Manufactured from high-quality diecast aluminum, our fuel transfer pump with automatic shut-off nozzle is extremely dependable and lightweight and will put minimal stress on your tank bung. The powder-coated motor can is corrosion-resistant to withstand years of work in any application
- ROTARY GEAR DESIGN: The rotary gear pump is engineered with fewer moving parts, which means less friction and wear on its components. Thus this rotary gear pump will have fewer needed repairs and longer life than a rotary vane pump. When you need reliable performance GPI’s gear pumps are over engineered to deliver
- 2-YEAR WARRANTY: Our M-150S GPI fuel transfer pumps come with a 2-year warranty and are UL Listed Motor. Feel confident in knowing that your fuel pump has been providing longer run times and award-winning performance
- EASY-TO-USE: The 12-VDC motor of our fuel transfer pumps is highly efficient as it delivers gasoline, diesel fuel, ethanol blends, and kerosene at flow rates up to 15GPM. Additionally, the innovative spin collar design of our fuel transfer pump makes installation fast and easy
- Lockable nozzle holder protects your investment and deters theft
- Strainer access makes maintenance quick and easy
- Designed for permanent mounting on vented storage tanks
- A convenient spin collar and factory-installed power cord make installation safe and easy
- DURABLE ALUMINUM HOUSING: Manufactured from high-quality diecast aluminum, our fuel transfer pump with manual unleaded nozzle is extremely dependable and lightweight and will put minimal stress on your tank bung. The powder-coated motor can and aluminum housing is rugged and corrosion-resistant to withstand years of work in any application
- ROTARY GEAR DESIGN: The rotary gear pump is engineered with fewer moving parts, which means less friction and wear on its components. Thus this rotary gear pump will have fewer needed repairs and longer life than a rotary vane pump. When you need reliable performance GPI’s gear pumps are over engineered to deliver
- EASY-TO-USE: The 12-VDC motor of our fuel transfer pumps is highly efficient as it delivers gasoline, diesel fuel, ethanol blends, and kerosene at flow rates up to 15GPM. Additionally, the innovative spin collar design of our fuel transfer pump makes installation fast and easy
- 2-YEAR WARRANTY: Our M-150S GPI fuel transfer pumps come with a 2-year warranty and are UL Listed Motor. Feel confident in knowing that your fuel pump has been providing longer run times and award-winning performance
- Lockable nozzle holder protects your investment and deters theft
- Strainer access for easy maintenance
- Longer pump life means more operating hours which equals greater value
- Designed for permanent mounting on vented storage tanks
- DURABLE ALUMINUM HOUSING: Manufactured from high-quality diecast aluminum, our fuel transfer pump with manual shut-off nozzle is extremely dependable and lightweight and will put minimal stress on your tank bung. The powder-coated motor can and aluminum housing is rugged and corrosion-resistant to withstand years of work in any application
- ROTARY GEAR DESIGN: The rotary gear pump is engineered with fewer moving parts, which means less friction and wear on its components. Thus this rotary gear pump will have fewer needed repairs and longer life than a rotary vane pump. When you need reliable performance GPI’s gear pumps are over engineered to deliver
- EASY-TO-USE: The 12-VDC motor of our fuel transfer pumps is highly efficient as it delivers gasoline, diesel fuel, ethanol blends, and kerosene at flow rates up to 15GPM
- 2-YEAR WARRANTY: Our M-150S GPI fuel transfer pumps come with a 2-year warranty and are UL Listed Motor. Feel confident in knowing that your fuel pump has been providing longer run times and award-winning performance
- Circuit breaker motor protection extends motor life
- Designed for permanent mounting on vented storage tanks
- DURABLE ALUMINUM HOUSING: Manufactured from high-quality diecast aluminum, our fuel transfer pump (pump only) is extremely dependable and lightweight and will put minimal stress on your tank bung. The aluminum housing is rugged and corrosion-resistant to withstand years of work in any application.
- ROTARY GEAR DESIGN: The rotary gear pump is engineered with fewer moving parts, which means less friction and wear on its components. Thus this rotary gear pump will have fewer needed repairs and longer life than a rotary vane pump. When you need reliable performance GPI’s gear pumps are over engineered to deliver.
- EASY-TO-USE: The 12-VDC motor of our fuel transfer pumps is highly efficient as it delivers gasoline, diesel fuel, and kerosene at flow rates up to 15GPM. Additionally, the innovative spin collar design of our fuel transfer pump makes installation fast and easy!
- 2-YEAR WARRANTY: Our M-150S GPI fuel transfer pumps come with a 2-year warranty and are UL Listed Motor. Feel confident in knowing that your fuel pump has been providing longer run times and award-winning performance.
- Lockable nozzle cover protects your investment and deters theft
- Strainer design allows for easy access and maintenance
- Designed for permanent mounting on vented storage tanks
- For ground-based refueling only. Do not use or mount in or on the aircraft. For use with aviation gasoline (Avgas 100LL), Jet A, and Jet A-1. User should consult NFPA 407 Standard for Aircraft Fuel Servicing for safety requirements during ground fuel servicing of aircraft using liquid petroleum fuels. This product has no actual or implied compliance with this standard. Owners and operators are responsible for compliance to all applicable regulations.
- Designed for permanent mounting on vented storage tanks
- Light-weight aluminum body is easy to handle and reduces tank stress
- UL Listed Motor
- For ground-based refueling only. Do not use or mount in or on the aircraft. For use with aviation gasoline (Avgas 100LL), Jet A, and Jet A-1. User should consult NFPA 407 Standard for Aircraft Fuel Servicing for safety requirements during ground fuel servicing of aircraft using liquid petroleum fuels. This product has no actual or implied compliance with this standard. Owners and operators are responsible for compliance to all applicable regulations.
- Includes a 10 micron, 1-12 UNF particulate filter that removes debris from fuel that may damage your equipment
- Higher flow rate reduces time spent refueling
- Convenient spin collar for easy installation; Overload protected motor extends motor life
- Powder-coated motor can and light-weight aluminum body provides corrosion resistance and reduces tank stress
- Lockable nozzle holder protects your investment and deters theft
- Designed for permanent mounting on vented storage tanks
- Low profile design does not block line of vision
- UL Listed Motor
Specifications
- Max. Flow Rate:
- 15 GPM (57 L/min)
- Voltage Input:
- 12V (DC)
- Technology:
- Rotary Gear
- Amps Rated:
- 18 amps
- Duty Cycle:
- 30 min on/30 min off
- Power Cord:
- 18 ft. (5.5m), 12/2 AWG, Factory Installed
- Max. Discharge Pressure:
- 15 PSI (1.03 bar)
- Operating Temperature:
- -20° F to 125° F (-29° C to 52° C)
- Suction Lift:
- Up to 5 ft. (1.5m) at Sea Level 70° F (21.1° C)
- Discharge Lift:
- Up to 15 ft. (4.5m) at Sea Level 70° F (21.1° C)
- Pump Housing Material:
- Corrosion-Resistant Diecast Aluminum
- Wetted Materials:
- Acetal | Aluminum | FKM | NBR | PPS | Stainless Steel
- Mounting Type/Thread:
- Spin Collar, 2in. MNPT
- Suction Pipe:
- Polypropylene, Telescoping 15 to 40in. x 1in. MNPT
- Inlet:
- 1 in. FNPT
- Outlet:
- 3/4 in. FNPT
- Dispensing Hose:
- 12 ft.(3.7m) x 3/4 in. MNPT
- Nozzle:
- 3/4 in. FNPT Inlet, Automatic Shut-off, Unleaded
- Nozzle Holder Type:
- Lockable
- Warranty:
- 2-yr pump warranty
- UPC:
- 031401150612
- Approvals:
- cULus Motor Listed for Hazardous Locations Class I, Division 2, Group D USA and Canada
- Max. Flow Rate:
- 15 GPM (57 L/min)
- Voltage Input:
- 12V (DC)
- Technology:
- Rotary Gear
- Amps Rated:
- 18 amps
- Duty Cycle:
- 30 min on/30 min off
- Power Cord:
- 18 ft. (5.5m), 12/2 AWG, Factory Installed
- Max. Discharge Pressure:
- 15 PSI (1.03 bar)
- Operating Temperature:
- -20° F to 125° F (-29° C to 52° C)
- Suction Lift:
- Up to 5 ft. (1.5m) at Sea Level 70° F (21.1° C)
- Discharge Lift:
- Up to 15 ft. (4.5m) at Sea Level 70° F (21.1° C)
- Pump Housing Material:
- Corrosion-Resistant Diecast Aluminum
- Wetted Materials:
- Acetal | Aluminum | FKM | NBR | PPS | Stainless Steel
- Mounting Type/Thread:
- Spin Collar, 2in. MNPT
- Suction Pipe:
- Polypropylene, Telescoping 15 to 40in. x 1in. MNPT
- Inlet:
- 1 in. FNPT
- Outlet:
- 3/4 in. FNPT
- Dispensing Hose:
- 12 ft.(3.7m) x 3/4 in. MNPT
- Nozzle:
- 3/4 in. FNPT Inlet, Manual Shut-off, Unleaded
- Nozzle Holder Type:
- Lockable
- Warranty:
- 2-yr pump warranty
- UPC:
- 031401150605
- Approvals:
- cULus Motor Listed for Hazardous Locations Class I, Division 2, Group D USA and Canada
- Max. Flow Rate:
- 15 GPM (57 L/min)
- Voltage Input:
- 12V (DC)
- Technology:
- Rotary Gear
- Amps Rated:
- 18 amps
- Duty Cycle:
- 30 min on/30 min off
- Power Cord:
- 18 ft. (5.5m), 12/2 AWG, Factory Installed
- Max. Discharge Pressure:
- 15 PSI (1.03 bar)
- Operating Temperature:
- -20° F to 125° F (-29° C to 52° C)
- Suction Lift:
- Up to 5 ft. (1.5m) at Sea Level 70° F (21.1° C)
- Discharge Lift:
- Up to 15 ft. (4.5m) at Sea Level 70° F (21.1° C)
- Pump Housing Material:
- Corrosion-Resistant Diecast Aluminum
- Wetted Materials:
- Acetal | Aluminum | FKM | NBR | PPS | Stainless Steel
- Mounting Type/Thread:
- Direct Mount, 2in. MNPT
- Suction Pipe:
- Polypropylene, Telescoping 15 to 40in. x 1in. MNPT
- Inlet:
- 1 in. FNPT
- Outlet:
- 3/4 in. FNPT
- Nozzle:
- 3/4 in. FNPT Inlet, Manual Shut-off, Unleaded
- Nozzle Holder Type:
- Non-lockable
- Warranty:
- 2-yr pump warranty
- UPC:
- 031401100945
- Approvals:
- cULus Motor Listed for Hazardous Locations Class I, Division 2, Group D USA and Canada
- Max. Flow Rate:
- 15 GPM (57 L/min)
- Voltage Input:
- 12V (DC)
- Technology:
- Rotary Gear
- Amps Rated:
- 18 amps
- Duty Cycle:
- 30 min on/30 min off
- Power Cord:
- Not Included
- Max. Discharge Pressure:
- 15 PSI (1.03 bar)
- Operating Temperature:
- -20° F to 125° F (-29° C to 52° C)
- Suction Lift:
- Up to 5 ft. (1.5m) at Sea Level 70° F (21.1° C)
- Discharge Lift:
- Up to 15 ft. (4.5m) at Sea Level 70° F (21.1° C)
- Pump Housing Material:
- Corrosion-Resistant Diecast Aluminum
- Wetted Materials:
- Acetal | Aluminum | FKM | NBR | PPS | Stainless Steel
- Mounting Type/Thread:
- Spin Collar, 2in. MNPT
- Suction Pipe:
- Not included
- Inlet:
- 1 in. FNPT
- Outlet:
- 3/4 in. FNPT
- Dispensing Hose:
- Not included
- Nozzle:
- Not included
- Nozzle Holder Type:
- Lockable
- Warranty:
- 2-yr pump warranty
- UPC:
- 031401000481
- Approvals:
- cULus Motor Listed for Hazardous Locations Class I, Division 1, Group D USA and Canada
- Max. Flow Rate:
- 15 GPM (57 L/min)
- Voltage Input:
- 12V (DC)
- Technology:
- Rotary Gear
- Amps Rated:
- 18 amps
- Duty Cycle:
- 30 min on/30 min off
- Power Cord:
- Not Included
- Max. Discharge Pressure:
- 15 PSI (1.03 bar)
- Operating Temperature:
- -20° F to 125° F (-29° C to 52° C)
- Suction Lift:
- Up to 5 ft. (1.5m) at Sea Level 70° F (21.1° C)
- Discharge Lift:
- Up to 15 ft. (4.5m) at Sea Level 70° F (21.1° C)
- Pump Housing Material:
- Corrosion-Resistant Diecast Aluminum
- Wetted Materials:
- Acetal | Aluminum | FKM | NBR | PPS | Stainless Steel
- Mounting Type/Thread:
- Direct Mount, 2in. MNPT
- Suction Pipe:
- Not included
- Inlet:
- 1 in. FNPT
- Outlet:
- 3/4 in. FNPT
- Dispensing Hose:
- Not included
- Nozzle:
- Not included
- Nozzle Holder Type:
- Non-lockable
- Warranty:
- 2-yr pump warranty
- UPC:
- 031401112405
- Approvals:
- cULus Motor Listed for Hazardous Locations Class I, Division 1, Group D USA and Canada
- Max. Flow Rate:
- 15 GPM (57 L/min)
- Voltage Input:
- 12V (DC)
- Technology:
- Rotary Gear
- Amps Rated:
- 18 amps
- Duty Cycle:
- 30 min on/30 min off
- Power Cord:
- 18 ft. (5.5m), 12/2 AWG, Factory Installed
- Max. Discharge Pressure:
- 15 PSI (1.03 bar)
- Operating Temperature:
- -20° F to 125° F (-29° C to 52° C)
- Suction Lift:
- Up to 5 ft. (1.5m) at Sea Level 70° F (21.1° C)
- Discharge Lift:
- Up to 15 ft. (4.5m) at Sea Level 70° F (21.1° C)
- Pump Housing Material:
- Powder Coated, Corrosion-Resistant Diecast Aluminum
- Wetted Materials:
- Acetal | Aluminum | FKM | NBR | PPS | Stainless Steel
- Mounting Type/Thread:
- Spin Collar, 2in. MNPT
- Suction Pipe:
- Polypropylene, Telescoping 15 to 40in. x 1in. MNPT
- Inlet:
- 1 in. FNPT
- Outlet:
- 3/4 in. FNPT
- Dispensing Hose:
- 12 ft.(3.7m) x 3/4 in. MNPT
- Nozzle:
- 3/4 in. FNPT Inlet, Automatic Shut-off, Unleaded
- Nozzle Holder Type:
- Lockable
- Warranty:
- 2-yr pump warranty
- UPC:
- 031401009040
- Approvals:
- cULus Motor Listed for Hazardous Locations Class I, Division 2, Group D USA and Canada
Also Available At
Manuals / Documents

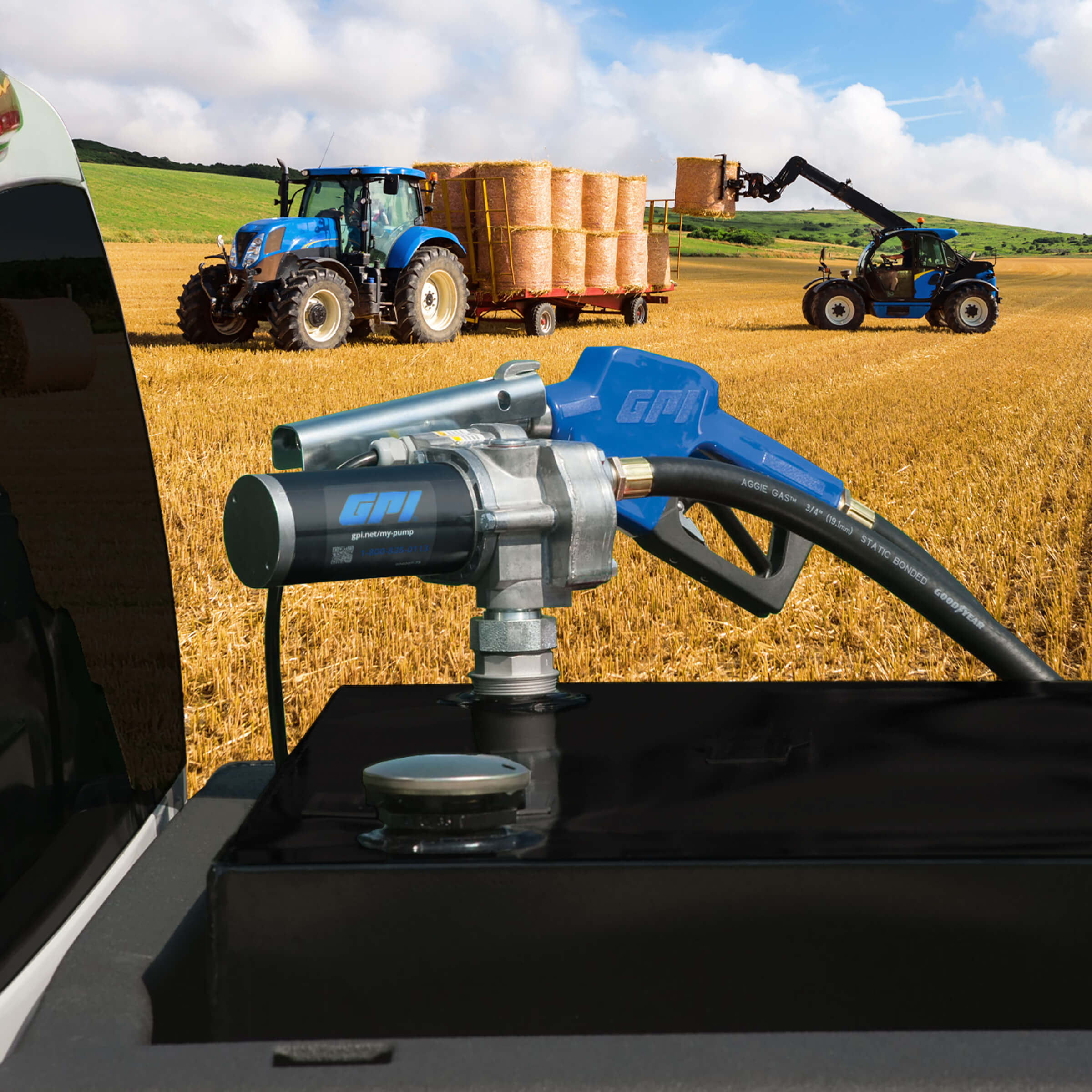

Applications

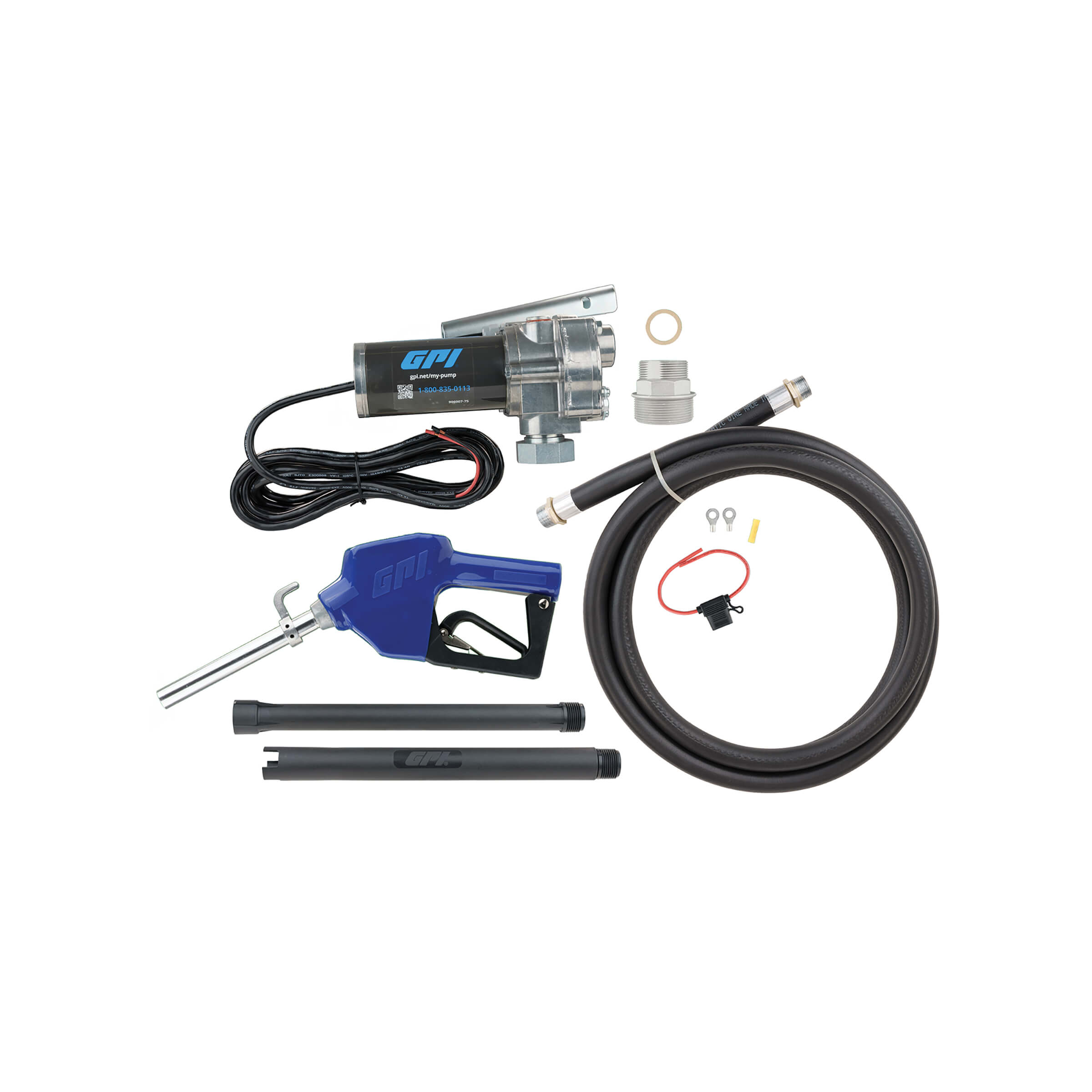

What's in the Box
M-150S-AU Fuel transfer pump w/spin collar, Automatic shut-off unleaded nozzle, Lockable nozzle holder, Dispensing hose, Factory-installed power cord, Telescoping suction pipe, Tank adapter, Fuse assembly, Owners manual
M-150S-MU Fuel transfer pump w/spin collar, Manual shut-off unleaded nozzle, Lockable nozzle holder, Dispensing hose, Factory-installed power cord, Telescoping suction pipe, Tank adapter, Fuse assembly, Owners manual.
M-150S-EM Fuel transfer pump w/direct mount. Manual shut-off unleaded nozzle, Non-lockable nozzle holder, Dispensing hose w/static wire, Factory-installed power cord, Telescoping suction pipe, Tank adapter, Fuse assembly, Owners manual
M-150S-PO Fuel transfer pump w/spin collar, Power cord, Lockable nozzle holder, Tank adapter, Fuse assembly, Owners manual
M-150S-E-PO Fuel transfer pump w/direct mount, Non-lockable nozzle holder, Fuse assembly, Owners manual
M-150S-AU w/Filter Kit Fuel transfer pump, Automatic shut-off unleaded nozzle, Lockable nozzle holder, Dispensing hose, Factory-installed power cord, Telescoping suction pipe, Tank adapter, Fuse assembly, Particulate filter, Adapter and Installation kit, Owners manual
