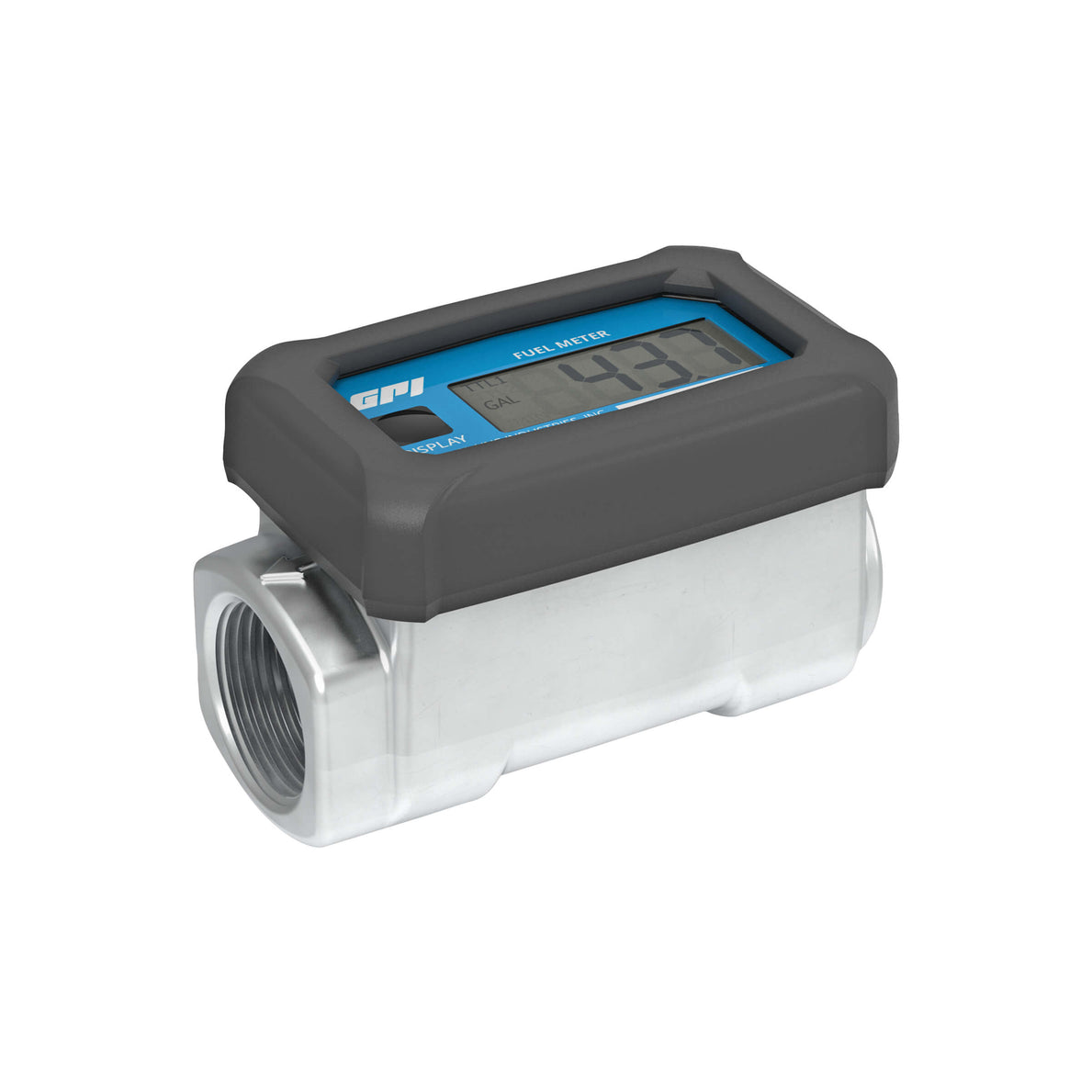

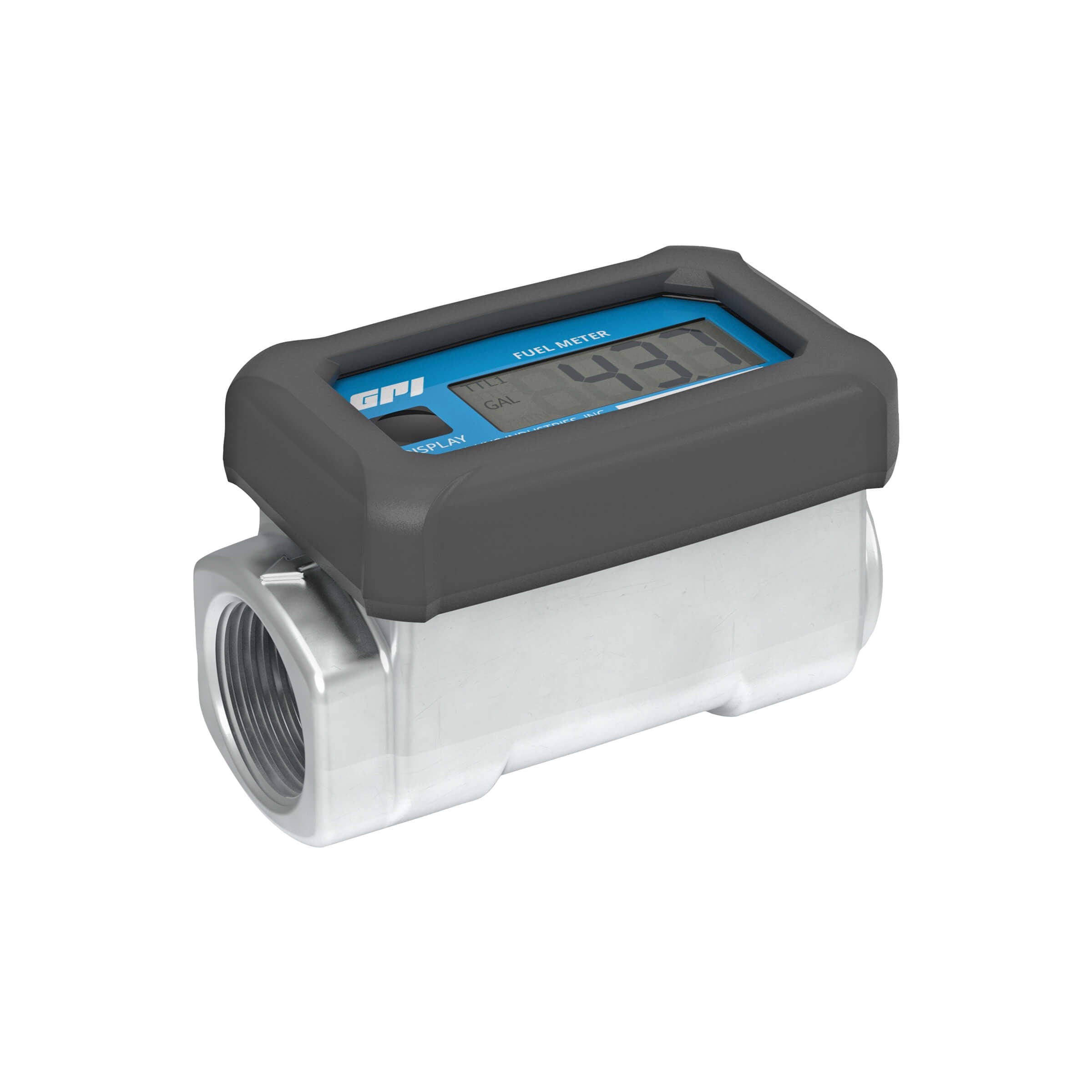

Turbine Flow Meter, Battery Powered Display, Aluminum Body for Fuels
GPI® 01A Fuel Series
SKU 113255-1
| MODEL 01A31GM
| MODEL 01A31LM
| MODEL 01A12LM
Original price
$159.99
-
Original price
$159.99
Original price
$159.99
$159.99
-
$159.99
Current price
$159.99
Recommended for use with these fuels:

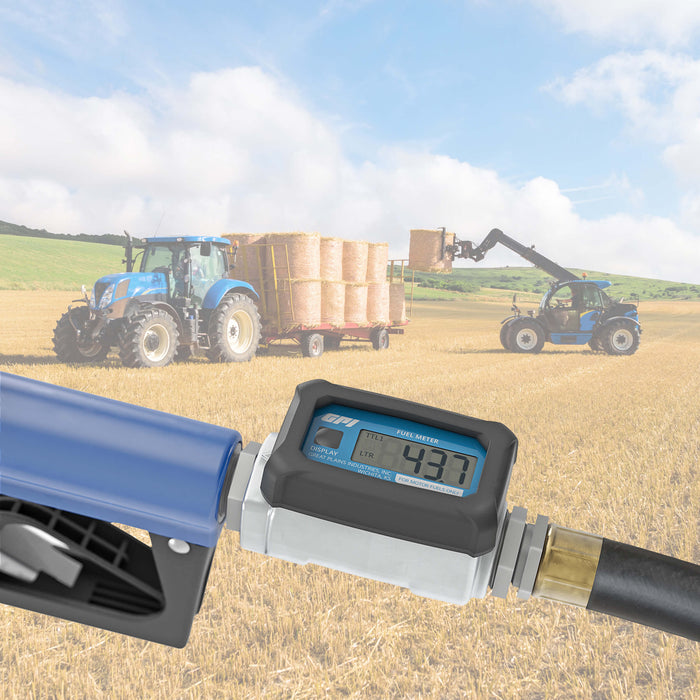

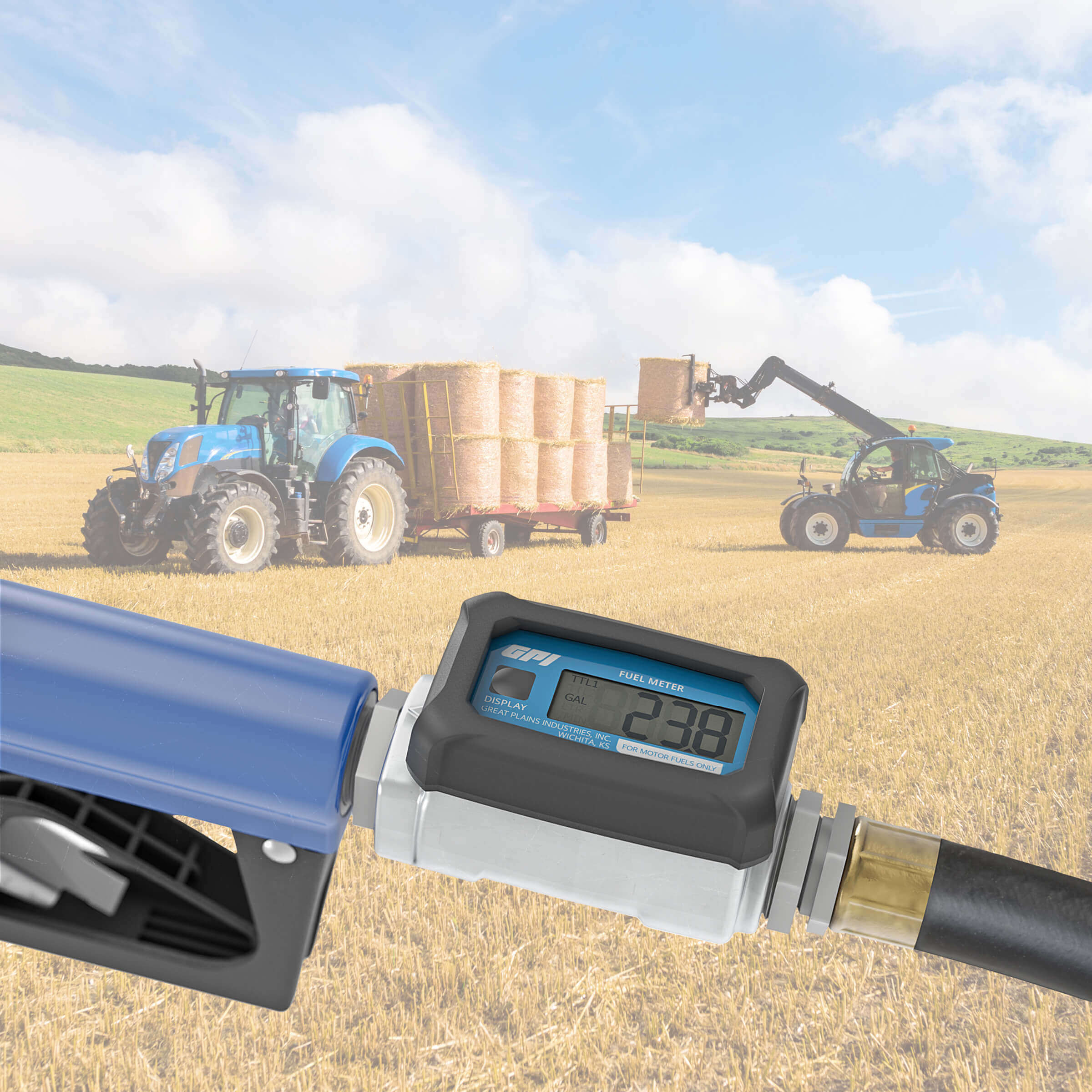

Gasoline up to E15 | Diesel Fuel up to B20 | Kerosene Gasoline up to E15 | Diesel Fuel up to B20 | Kerosene Gasoline up to E15 | Diesel Fuel up to B20 | KeroseneALL-NEW RUBBER BUMPER included - protects the 01A from damage. The GPI 01A digital fuel meter series is designed for measuring flow rates from 3 to 30 GPM (10 to 100 L/min) and is factory calibrated in gallons or liters for use with diesel, gasoline, ethanol blends, or kerosene. This digital fuel meter mounts easily to the end of a hose and is ideal for use with free-flow gravity systems or combined with an electric transfer pump as part of a fuel transfer system. DO NOT USE with water or chemicals.
Features & Benefits
- Compact and lightweight at just 12 oz.
- Mount directly to the nozzle for easy reading
- Includes 3/4 in. reducer fitting and 3/4 x 1 1/2 in. pipe fitting
- Methanol model (01A31GMME) available
- FM Approved to U.S. and Canadian Standards as intrinsically Safe fr Class 1, Division 1 Groups D.
- Not for use with water or chemicals.
- Compact and lightweight at just 12 oz.
- Mount directly to the nozzle for easy reading
- Includes 3/4 in. reducer fitting and 3/4 x 1 1/2 in. pipe fitting
- Methanol model (01A31GMME) available
- FM Approved to U.S. and Canadian Standards as intrinsically Safe fr Class 1, Division 1 Groups D.
- Not for use with water or chemicals.
- Compact and lightweight at just 12 oz.
- Mount directly to the nozzle for easy reading
- Not for use with water or chemicals.
- Methanol model (01A31GMME) available
- FM Approved to U.S. and Canadian Standards as intrinsically Safe fr Class 1, Division 1 Groups D.
Specifications
- Flow Range:
- 3 - 30 GPM (10-100 L/min)
- Accuracy (% of Reading):
- +/- 2.5%
- Technology:
- Turbine
- Pressure Rating:
- 300 PSI (20.7 bar)
- Operating Temperature:
- 14° to 130° F (-10° to 55° C)
- Connection Type/Size:
- NPT (Female), 1-inch
- Meter Housing Material:
- Corrosion-Resistant Aluminum
- Wetted Materials:
- 316 Stainless Steel | Aluminum | Ceramic | Ferrite | Nylon | Tungsten Carbide
- Warranty:
- 2-yr meter warranty
- UPC:
- 031401113365
- Approvals:
- FM Approved to U.S. and Canadian Standards as Intrinsically Safe for Class 1, Div 1 Groups D
- Flow Range:
- 3 - 30 GPM (10-100 L/min)
- Accuracy (% of Reading):
- +/- 2.5%
- Technology:
- Turbine
- Pressure Rating:
- 300 PSI (20.7 bar)
- Operating Temperature:
- 14° to 130° F (-10° to 55° C)
- Connection Type/Size:
- NPT (Female), 1-inch
- Meter Housing Material:
- Corrosion-Resistant Aluminum
- Wetted Materials:
- 316 Stainless Steel | Aluminum | Ceramic | Ferrite | Nylon | Tungsten Carbide
- Warranty:
- 2-yr meter warranty
- UPC:
- 031401113259
- Approvals:
- FM Approved to U.S. and Canadian Standards as Intrinsically Safe for Class 1, Div 1 Groups D
- Flow Range:
- 3 - 30 GPM (10-100 L/min)
- Accuracy (% of Reading):
- +/- 2.5%
- Technology:
- Turbine
- Pressure Rating:
- 300 PSI (20.7 bar)
- Operating Temperature:
- 14° to 130° F (-10° to 55° C)
- Connection Type/Size:
- ISO 7 (Female), 1-inch
- Meter Housing Material:
- Corrosion-Resistant Aluminum
- Wetted Materials:
- 316 Stainless Steel | Aluminum | Ceramic | Ferrite | Nylon | Tungsten Carbide
- Warranty:
- 2-yr meter warranty
- UPC:
- 031401007503
- Approvals:
- FM Approved to U.S. and Canadian Standards as Intrinsically Safe for Class 1, Div 1 Groups D
Also Available At
Manuals / Documents
What's in the Box

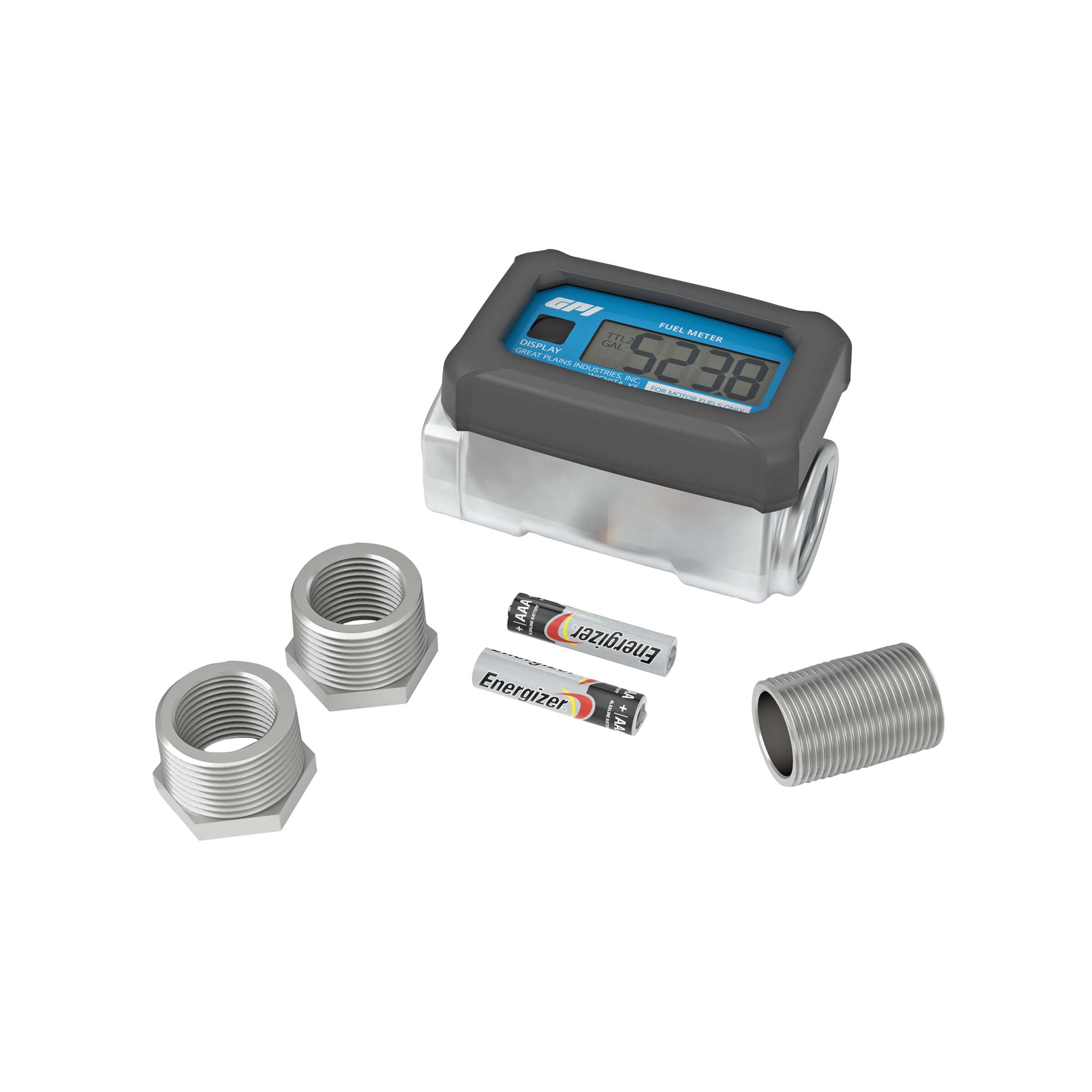

Digital fuel meter, rubber bumper, (2) 3/4" reducers, 3/4" x 1-1/2" pipe fitting, (2) alkaline AAA batteries, Owners Manual
Digital fuel meter, rubber bumper, (2) 3/4" reducers, 3/4" x 1-1/2" pipe fitting, (2) alkaline AAA batteries, Owners Manual

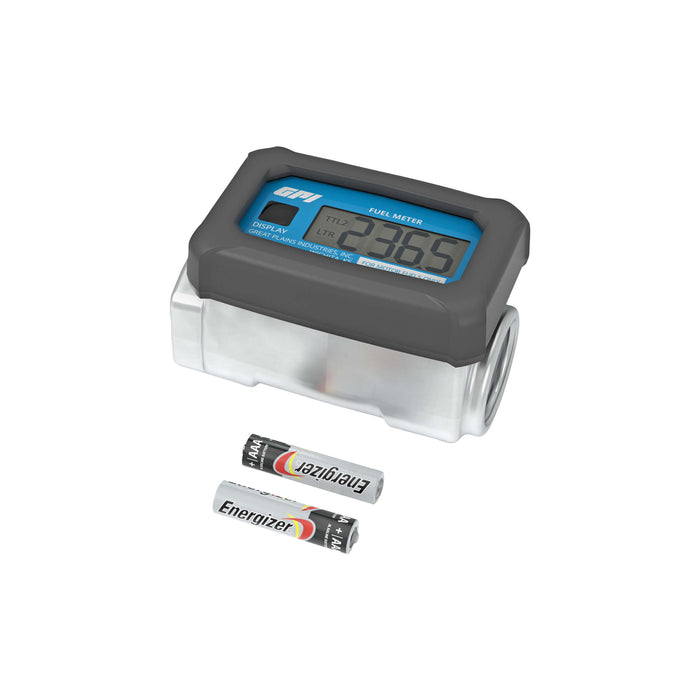

Digital fuel meter, rubber bumper, (2) alkaline AAA batteries, Owners Manual
