1-Inch PPS, High-Accuracy Chemical Flow Meter


SKU OM025P001-822
Original price $702.00 - Original price $702.00
Original price
$702.00 - $702.00
Current price $702.00

This FLOMEC product is built to order and typically has a lead time of 4 weeks

After placing your order a GPI representative will contact you regarding the lead time and availability for this item.

Recommended for use with these liquids:

DEF (Diesel Exhaust Fluid) | Non-aromatic / Non-halogenated Organic Chemicals | Petroleum Products including Fuels, Oils, and Grease

The FLOMEC® Chemical Flow Meter provides precise volumetric flow measurement of a broad range of clean water-based products and aggressive chemicals and is also suitable for DEF, fuel oils, and lubricating liquids. Applications include batching, dosing, or packaging of various corrosive chemicals as a more economical alternative to a complete 316 stainless steel meter for liquids such as Diesel Exhaust Fluid (DEF) / AdBlue. NOT suitable for strong acids and oxidizers.

This meter meets ISO 22241-2 Annex C, D, E, F, G, H, I, Diesel Exhaust Fluid (DEF)/Adblue standards.

Features & Benefits

  • Combination Reed Switch and Hall Effect Sensor
  • PPS Rotors, No Bearing
  • FKM (Viton™) 5º F minimum (-15º C) O-Ring material
  • High accuracy & repeatability, direct reading flow meter
  • No requirement for flow conditioning (straight pipe runs)
  • Measures high & low viscosity liquids
  • Quadrature pulse output option & bi-directional flow. Contact GPI Product Support for options
  • Optional NMI Pattern Approval (Australia Only)
Product Model Options: 1-inch FNPT Inlet and Outlet
Flow Range:
2.6 - 40 GPM (10-150 L/min) @ 3cP
Accuracy of Reading:
+/- 0.5%
Oval Gear
Working Pressure:
174 PSI (12 bar)
Max Working Temperature:
176° F (80° C) Maximum
1 in. FNPT
1 in. FNPT
CE, NEMA 4, IP65
Manuals / Documents

  • PPS meters are used for non-aromatic/non-halogenated organic chemicals, water-based liquids, Diesel Exhaust Fluid, and petroleum products including oils and grease, fuels, and fuel oils. It is unsuitable for strong acids and oxidizers.
  • PPS meters with standard ceramic rotor pins are suitable for applications where stainless steel is not suited or permitted.

What's in the Box

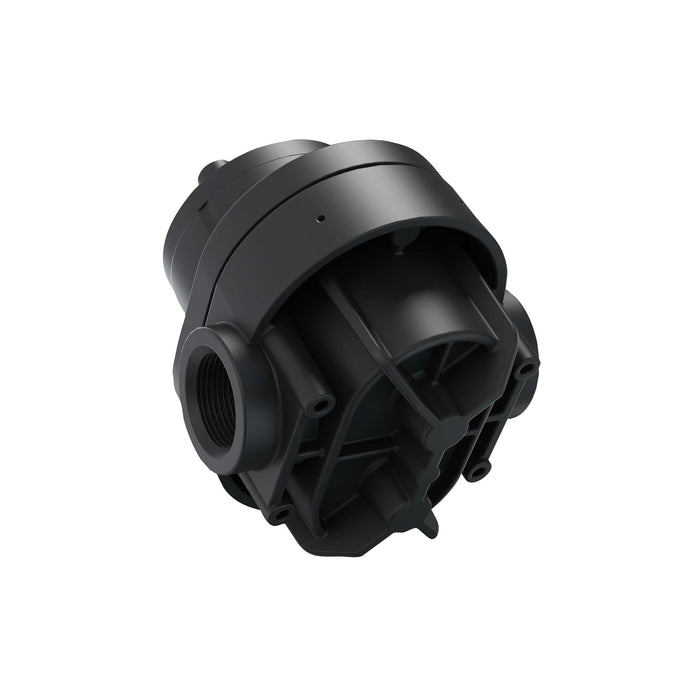

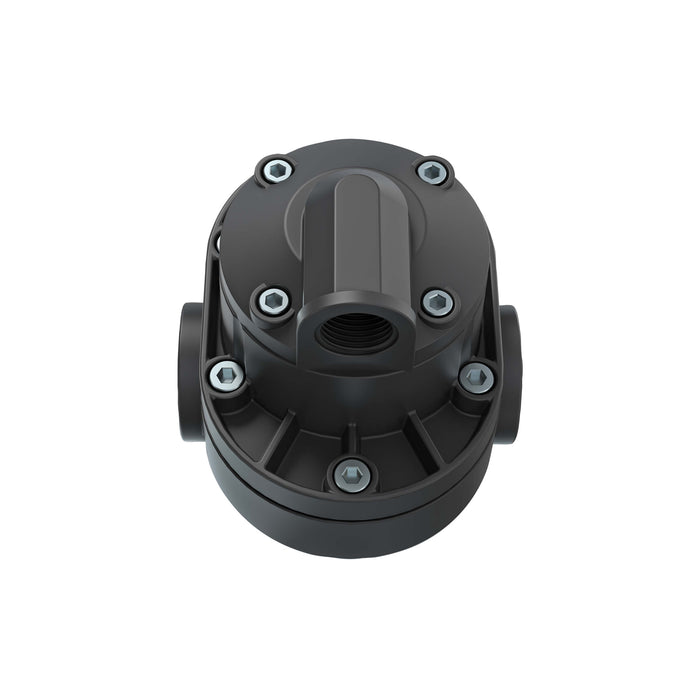

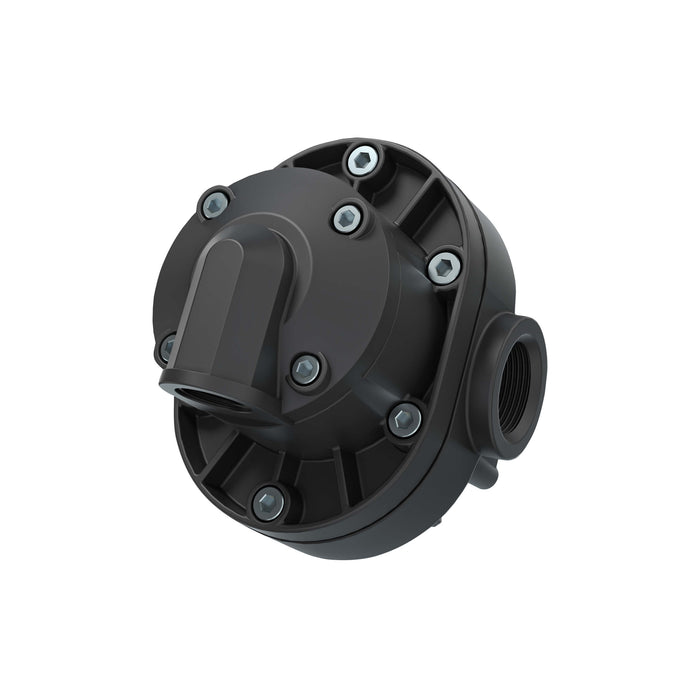

1-inch PPS oval gear flow meter with FNPT fittings
