GPRO^® PRO35-115 Series

115V 35 GPM Fuel Transfer Pump

Name: 115V 35 GPM Fuel Transfer Pump
Brand: GPRO
SKU: 504000-03
Price: 1481.99 USD
Availability: InStock

Starting At

$1342.99

Choose Your Model

Item 504000-03

Item 504000-02

Item 504000-05

Item 504000-01

PRO35-115AD

PRO35-115MD

PRO35-115PO/XTS

PRO35-115PO

Voltage: 115/230V (AC)
Nozzle Type: 1 in. FNPT Inlet, Automatic Shut-off, Diesel
Mounting Type: Direct Mount, 2in. male NPT
Dispensing Hose: 18ft. (5.5M) x 1 in.
Power Cord: Power cord Not Included

Voltage: 115/230V (AC)
Nozzle Type: 1 in. FNPT Inlet, Manual Shut-off, Diesel
Mounting Type: Direct Mount, 2in. male NPT
Dispensing Hose: 18ft. (5.5M) x 1 in.
Power Cord: Power cord Not Included

Voltage: 115/230V (AC)
Nozzle Type: Not included
Mounting Type: Center Base, 2in. male NPT
Dispensing Hose: Not included
Power Cord: Power cord Not Included

Voltage: 115/230V (AC)
Nozzle Type: Not included
Mounting Type: Direct Mount, 2in. male NPT
Dispensing Hose: Not included
Power Cord: Power cord Not Included

Compatible Fuels:
Gasoline up to E15|Diesel up to B20|Kerosene

Compatible Fuels:
Gasoline up to E15|Diesel up to B20|Kerosene|AVGAS|Jet A

Compatible Fuels:
Gasoline up to E15|Diesel up to B20|Kerosene|Jet A|AVGAS

Learn More & Buy

Resources Applications

Owners Manual

Agriculture
The PRO35-115 transfer pump is engineered to meet the demands of today's modern farming. Its durable aluminum construction delivers reliable performance to fuel your tractors, combines, and other off highway vehicles season after season.
Industrial
Get it done fast with the PRO35-115. With a flow rate of 35 gallons per minute, this stationary transfer pump makes refueling equipment for oil exploration, mining, logging, and drilling easy.
Fleet
The GPRO PRO35-115 fuel transfer pump is equipped to handle all of your high-volume fueling needs, including buses, delivery vehicles, and semi-trucks and trailers.
Stationary Tank
Featuring a flow rate of 35 gallons per minute, this pump is ideal for refueling from a stationary tank to heavy duty trucks and construction equipment.

PRO35-115 Series Overview

The GPRO PRO35-115 professional-grade fuel transfer pump is the pump of choice for your large stationary fuel tanks. This powerful pump will fill even the biggest fuel tanks quickly and easily so you can go back to clearing debris, planting crops, or stacking lumber. Available in a variety of configurations to meet your application's needs. The 115V AC motor delivers flow rates up to 35 GPM (132 L/min) for applications with low viscosity petroleum fuels such as gasoline, diesel fuel, and kerosene. Extreme temperature series (XTS) model, and Pump and meter combinations available for the complete package.

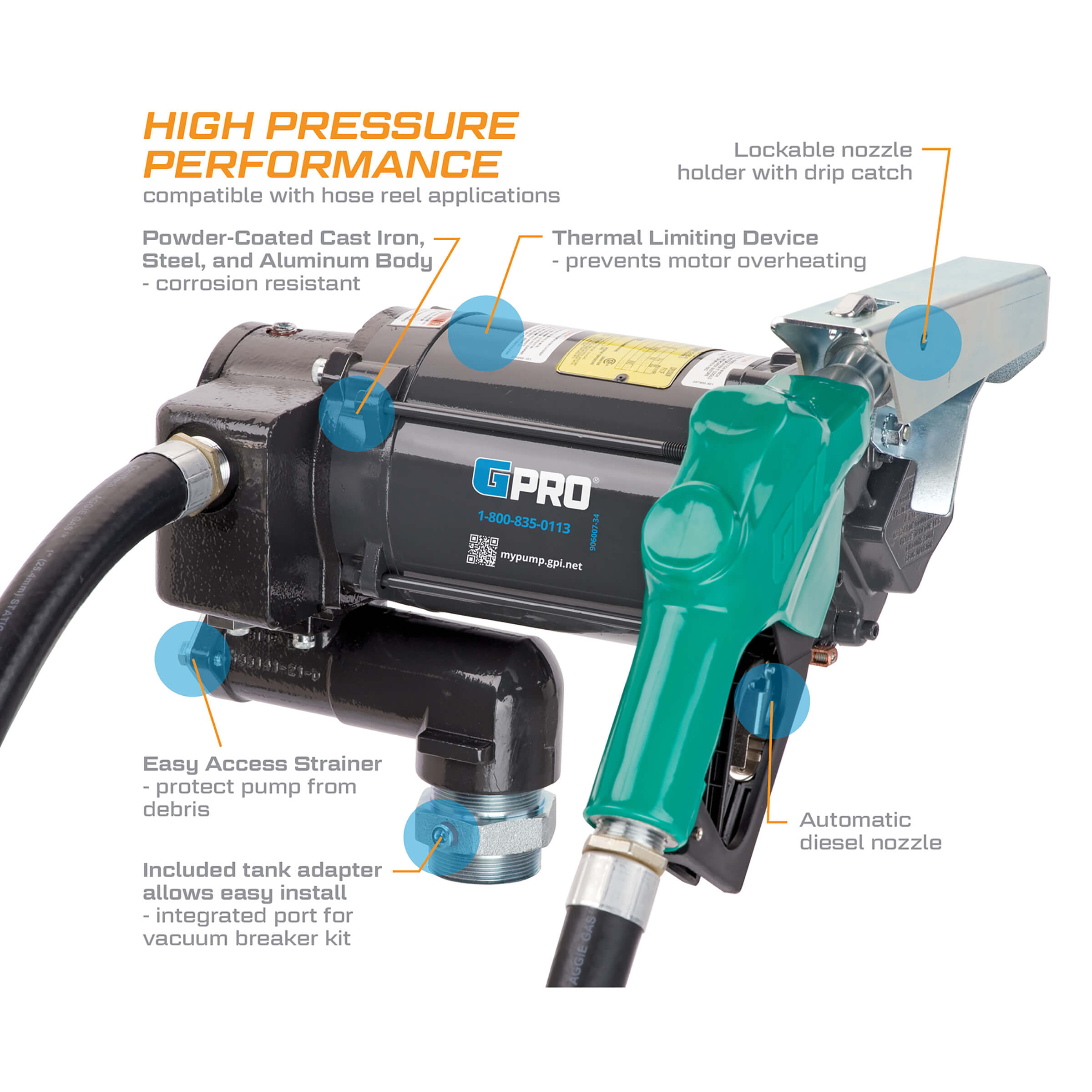

Benefits Include:

Compatible with Hose Reel
High Pressure Pump
High Flow Rate
Extended duty cycle exceeds industry standards
Thermally protected motor
Field replaceable switch and vanes
Vacuum breaker ready
Center base inlet with check valve

Compatible with Hose Reel
High Pressure Pump
High Flow Rate
Extended duty cycle exceeds industry standards
Thermally protected motor
Field replaceable switch and vanes
Vacuum breaker ready
Center base inlet with check valve

Compatible with Hose Reel
High Pressure Pump
High Flow Rate
Extended duty cycle exceeds industry standards
Thermally protected motor
Field replaceable switch and vanes
Vacuum breaker ready
Use to -40 below

Compatible with Hose Reel
High Pressure Pump
High Flow Rate
Extended duty cycle exceeds industry standards
Thermally protected motor
Field replaceable switch and vanes
Vacuum breaker ready
Center base inlet with check valve

Electrical
Input:
115/230V (AC)
115/230V (AC)
115/230V (AC)
115/230V (AC)
Fuse:
N/A
N/A
N/A
Type:
Carbon Vane
Carbon Vane
Carbon Vane
Carbon Vane
Motor:
1725, 3/4 hp
1725, 3/4 hp
1725, 3/4 hp
1725, 3/4 hp

Performace
Flow Rate:
35 GPM (132 L/min)
35 GPM (132 L/min)
35 GPM (132 L/min)
35 GPM (132 L/min)
Duty Cycle:
30 min on/30 min off
30 min on/30 min off
30 min on/30 min off
30 min on/30 min off
Working Pressure:
25 PSI (1.72 bar)
25 PSI (1.72 bar)
25 PSI (1.72 bar)
25 PSI (1.72 bar)
Max Working Temp:
-20° F to 125° F (-29° C to 52° C)
-20° F to 125° F (-29° C to 52° C)
-40° F to 125° (-40° C to 52° C)
-20° F to 125° F (-29° C to 52° C)

Mechanical
Inlet:
1 in. FNPT
1 in. FNPT
1 in. FNPT
1 in. FNPT
Outlet:
1 in. FNPT
1 in. FNPT
1 in. FNPT
1 in. FNPT
Mounting:
Direct Mount, 2in. male NPT
Direct Mount, 2in. male NPT
Center Base, 2in. male NPT
Direct Mount, 2in. male NPT

Accessories
Suction Pipe:
Not included
Not included
Not included
Not included
Power Cord:
Power cord Not Included
Power cord Not Included
Power cord Not Included
Power cord Not Included
Dispensing Hose:
18ft. (5.5M) x 1 in.
18ft. (5.5M) x 1 in.
Not included
Not included
Nozzle:
1 in. FNPT Inlet, Automatic Shut-off, Diesel
1 in. FNPT Inlet, Manual Shut-off, Diesel
Not included
Not included

Materials
Housing:
Powder Coated Cast Iron
Powder Coated Cast Iron
Powder Coated Cast Iron
Powder Coated Cast Iron

Warranty Statement
5-year pump warranty
5-year pump warranty
5-year pump warranty
5-year pump warranty

Approvals
cULus Motor Listed for Hazardous Locations Class I, Division 1, Group D USA and Canada
cULus Motor Listed for Hazardous Locations Class I, Division 1, Group D USA and Canada

UPC
031401003581
031401003574
031401003666
031401003567

Included in Box:

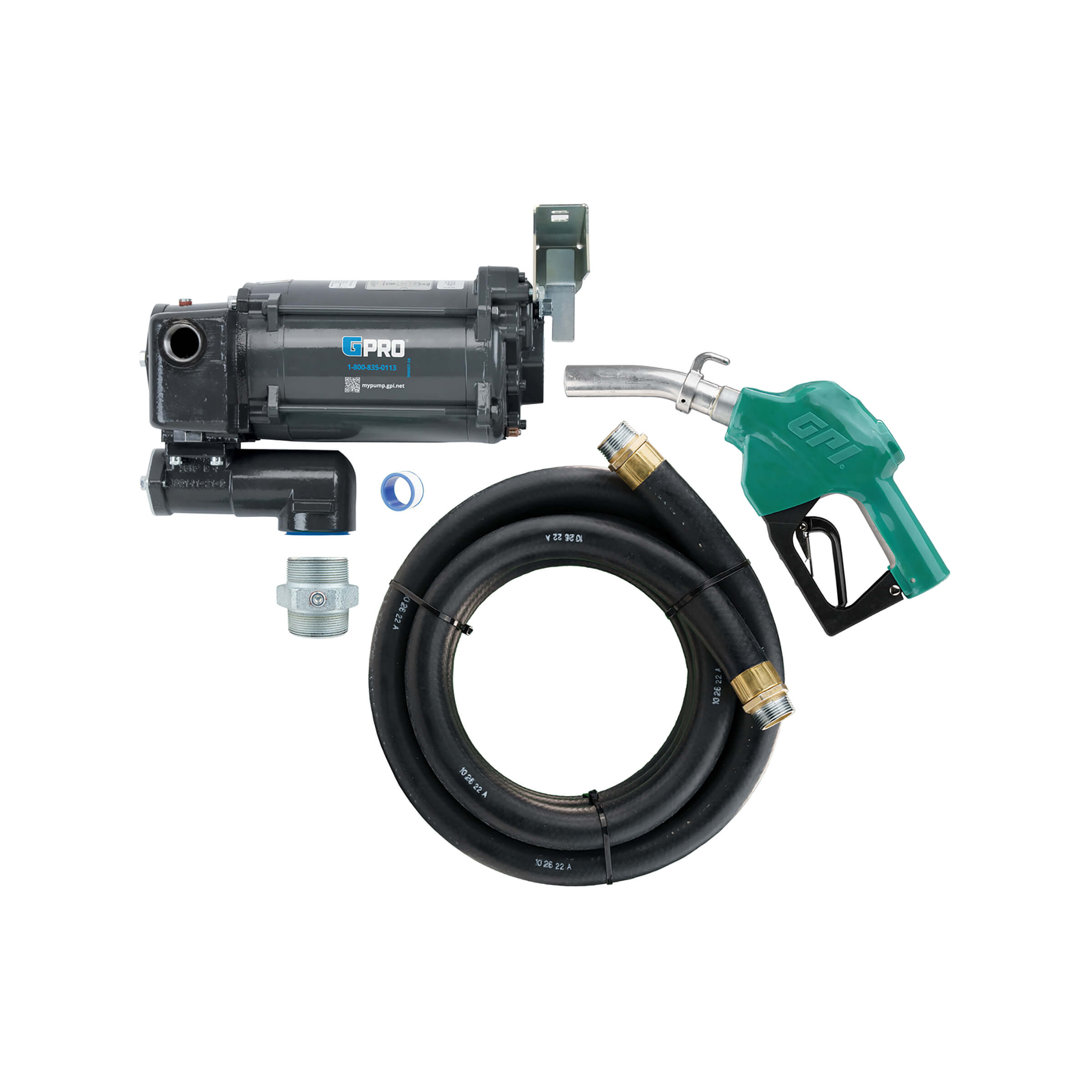

PRO35-115AD 115/230V 35 GPM pump, Automatic shut-off diesel nozzle, Dispensing hose, ank adapter, Lockable nozzle holder, Owner's manual

PRO35-115MD 115/230V 35 GPM pump, Manual shut-off diesel nozzle, Dispensing hose,Tank adapter, Lockable nozzle holder, Owner's manual

PRO35-115PO/XTS 115/230V 35 GPM Pump, Tank adapter, Lockable nozzle holder, Owner's manual

PRO35-115PO 115/230V 35 GPM Pump, Tank adapter, Lockable nozzle holder, Owner's manual
