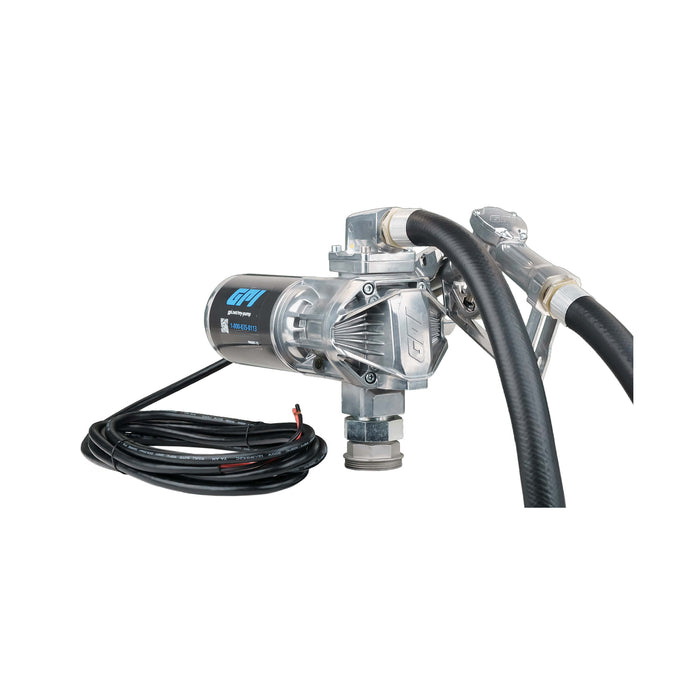

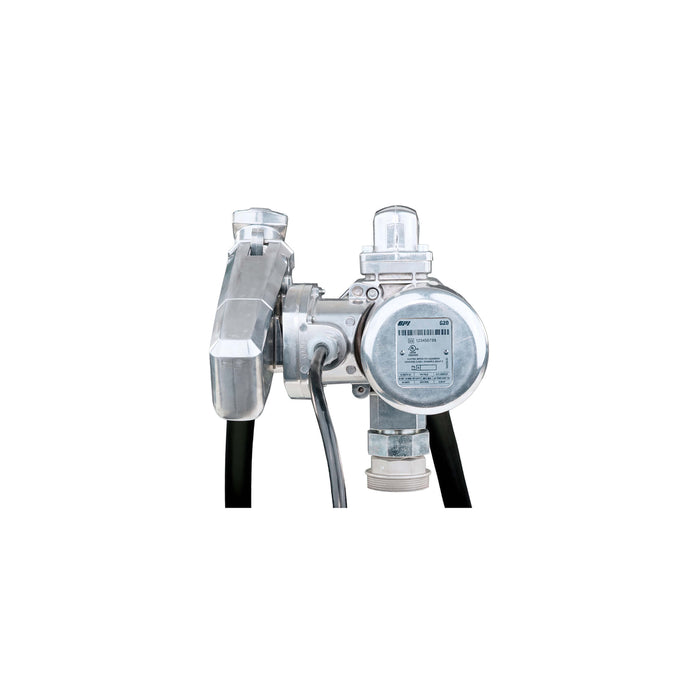

GPI 20 GPM 12V Fuel Transfer Pump
GPI ® G20 Modular Series
SKU 162000-03
| MODEL G20-012AD
| MODEL G20-012MD
| MODEL G20-012PX
| MODEL G20-012PO
Original price
$479.99
-
Original price
$679.99
Original price
$679.99
$479.99
-
$679.99
Current price
$679.99
Fluid Statement
Gasoline up to E15 | Diesel Fuel up to B20 | Kerosene Gasoline up to E15 | Diesel Fuel up to B20 | Kerosene Gasoline up to E15 | Diesel Fuel up to B20 | Kerosene | Avgas (100LL) | Jet A | Jet A-1 Gasoline up to E15 | Diesel Fuel up to B20 | Kerosene | Avgas (100LL) | Jet A | Jet A-1The GPI G20 Series Fuel transfer pump is the first gear pump to deliver TRUE 20 GPM. Delivering flow rates up to 20 GPM (76 L/min) in three available pump models, the G20 is the first pump in GPI's G series. Its new innovative design features simplified connection points that make attaching accessories fast and easy, and its unique rotary gear design ensures long product life with minimal maintenance. The G20 is durable, manufactured from high-quality diecast aluminum, easy to use, and engineered to last, featuring a self-priming rotary gear design.

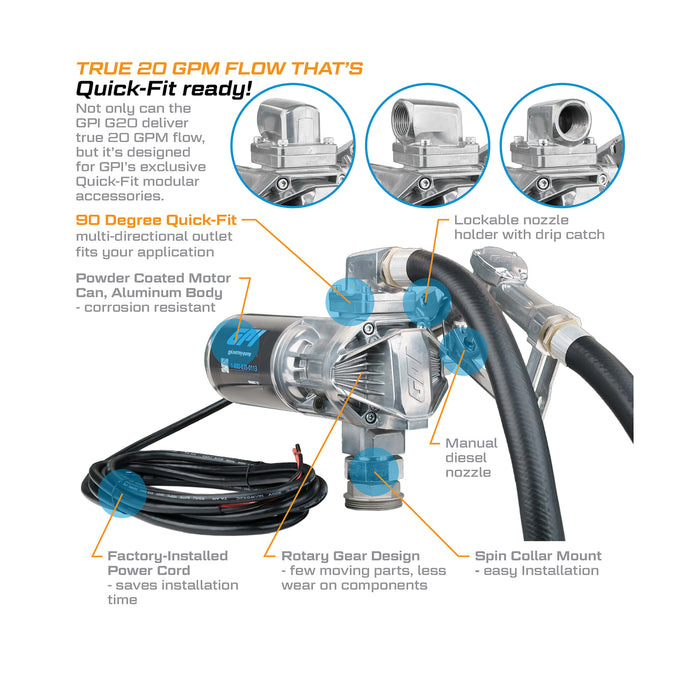

Features & Benefits
- Quick-fit modular makes it easy to attach a filter, meter or both to build your own custom system
- Diecast aluminum housing is lightweight - weighs 19lbs = low stress on tank
- Powder coated body to prevent rust and survive all weather conditions
- Drip catch - Lockable nozzle holder keeps your truck and tanks clean and stops fuel theft
- Rotary gear design: fewer moving parts means less friction and wear on components, for minimal maintenance and a longer pump life
- Factory-Installed power cord saves installation time
- Spin collar mount makes installation and pump orientation easy - fits any 2" NPT tank
- Quick-fit modular makes it easy to attach a filter, meter or both to build your own custom system
- Diecast aluminum housing is lightweight - weighs 19lbs = low stress on tank
- Powder coated body to prevent rust and survive all weather conditions
- Drip catch - Lockable nozzle holder keeps your truck and tanks clean and stops fuel theft
- Rotary gear design: fewer moving parts means less friction and wear on components, for minimal maintenance and a longer pump life
- Factory-Installed power cord saves installation time
- Spin collar mount makes installation and pump orientation easy - fits any 2" NPT tank
- Removable inlet strainer for easy cleaning
- Quick-Fit modular makes it easy to attach a filter, meter or both to build your own custom system
- Diecast aluminum housing is lightweight - weighs 19lbs = low stress on tank
- Powder coated body to prevent rust and survive all weather conditions
- Drip catch - Lockable nozzle holder keeps your truck and tanks clean and stops fuel theft
- Rotary gear design: fewer moving parts means less friction and wear on components, for minimal maintenance and a longer pump life
- Spin collar mount makes installation and pump orientation easy - fits any 2" NPT tank
- Removable inlet strainer for easy cleaning
- For ground-based refueling only. Do not use or mount in or on the aircraft. For use with aviation gasoline (AVGAS 100LL) and kerosene grade (JET A). User should consult NFPA 407 Standard for Aircraft Fuel Servicing for safety requirements during ground fuel servicing of aircraft using liquid petroleum fuels. This product has no actual or implied compliance with this standard.
- Quick-Fit modular makes it easy to attach a filter, meter or both to build your own custom system
- Diecast aluminum housing is lightweight - weighs 19lbs = low stress on tank
- Powder coated body to prevent rust and survive all weather conditions
- Drip catch - Lockable nozzle holder keeps your truck and tanks clean and stops fuel theft
- Rotary gear design: fewer moving parts means less friction and wear on components, for minimal maintenance and a longer pump life
- Spin collar mount makes installation and pump orientation easy - fits any 2" NPT tank
- Removable inlet strainer for easy cleaning
- For ground-based refueling only. Do not use or mount in or on the aircraft. For use with aviation gasoline (AVGAS 100LL) and kerosene grade (JET A). User should consult NFPA 407 Standard for Aircraft Fuel Servicing for safety requirements during ground fuel servicing of aircraft using liquid petroleum fuels. This product has no actual or implied compliance with this standard.
Specifications
- Input:
- 12V (DC)
- Fuse:
- 40 amps
- Type:
- Rotary Gear
- Motor RPMs:
- 2000
- Motor HP:
- 0.40
- Flow Rate:
- 20 GPM (76 L/min)
- Duty Cycle:
- 30 min on/30 min off
- Working Pressure:
- 12 PSI (0.82 bar)
- Max Working Temperature:
- -22° F to 131° F (-30° C to 55° C)
- Inlet:
- 1 in. FNPT
- Outlet:
- 1 in. FNPT
- Mounting Type:
- Spin Collar, 2in. MNPT
- Suction Pipe:
- Polypropylene, Telescoping 15 to 40in. x 1in. MNPT
- Power Cord:
- 18 ft. (5.5m), 12/2 AWG, Factory Installed
- Dispensing Hose:
- 14 ft. (5.2m) x 1 in. MNPT
- Nozzle:
- 1 in. FNPT Inlet, Automatic Shut-off, Diesel
- Housing:
- Powder Coated, Corrosion-Resistant Diecast Aluminum
- Warranty:
- Limited Lifetime Warranty
- UPC:
- 031401007183
- Approvals:
- cULus Motor Listed for Hazardous Locations Class I, Division 2, Group D USA and Canada
- Approvals (cont'd):
- cULus Power-Operated Pumps for Petroleum Products
- Input:
- 12V (DC)
- Fuse:
- 40 amps
- Type:
- Rotary Gear
- Motor RPMs:
- 2000
- Motor HP:
- 0.40
- Flow Rate:
- 20 GPM (76 L/min)
- Duty Cycle:
- 30 min on/30 min off
- Working Pressure:
- 12 PSI (0.82 bar)
- Max Working Temperature:
- -22° F to 131° F (-30° C to 55° C)
- Inlet:
- 1 in. FNPT
- Outlet:
- 1 in. FNPT
- Mounting Type:
- Spin Collar, 2in. MNPT
- Suction Pipe:
- Polypropylene, Telescoping 15 to 40in. x 1in. MNPT
- Power Cord:
- 18 ft. (5.5m), 12/2 AWG, Factory Installed
- Dispensing Hose:
- 14 ft. (5.2m) x 1 in. MNPT
- Nozzle:
- 1 in. FNPT Inlet, Manual Shut-off, Diesel
- Housing:
- Powder Coated, Corrosion-Resistant Diecast Aluminum
- Warranty:
- Limited Lifetime Warranty
- UPC:
- 031401007176
- Approvals:
- cULus Motor Listed for Hazardous Locations Class I, Division 2, Group D USA and Canada
- Input:
- 12V (DC)
- Fuse:
- 40 amps
- Type:
- Rotary Gear
- Motor RPMs:
- 2000
- Motor HP:
- 0.40
- Flow Rate:
- 20 GPM (76 L/min)
- Duty Cycle:
- 30 min on/30 min off
- Working Pressure:
- 12 PSI (0.82 bar)
- Max Working Temperature:
- -22° F to 131° F (-30° C to 55° C)
- Inlet:
- 1 in. FNPT
- Outlet:
- 1 in. BSPP
- Mounting Type:
- Spin Collar, 2in. MNPT
- Suction Pipe:
- N/A
- Power Cord:
- Not Included
- Dispensing Hose:
- Not included
- Nozzle:
- Not included
- Housing:
- Powder Coated, Corrosion-Resistant Diecast Aluminum
- Warranty:
- Limited Lifetime Warranty
- UPC:
- 031401007169
- Approvals:
- cULus Motor Listed for Hazardous Locations Class I, Division 1, Group D USA and Canada
- Approvals (cont'd):
- cULus Power-Operated Pumps for Petroleum Products
- Input:
- 12V (DC)
- Fuse:
- 40 amps
- Type:
- Rotary Gear
- Motor RPMs:
- 2000
- Motor HP:
- 0.40
- Flow Rate:
- 20 GPM (76 L/min)
- Duty Cycle:
- 30 min on/30 min off
- Working Pressure:
- 12 PSI (0.82 bar)
- Max Working Temperature:
- -22° F to 131° F (-30° C to 55° C)
- Inlet:
- 1 in. FNPT
- Outlet:
- 1 in. FNPT
- Mounting Type:
- Spin Collar, 2in. MNPT
- Suction Pipe:
- N/A
- Power Cord:
- Not Included
- Dispensing Hose:
- Not included
- Nozzle:
- Not included
- Housing:
- Powder Coated, Corrosion-Resistant Diecast Aluminum
- Warranty:
- Limited Lifetime Warranty
- UPC:
- 031401007169
- Approvals:
- cULus Motor Listed for Hazardous Locations Class I, Division 1, Group D USA and Canada
- Approvals (cont'd):
- cULus Power-Operated Pumps for Petroleum Products
Also Available At
Manuals / Documents
Applications

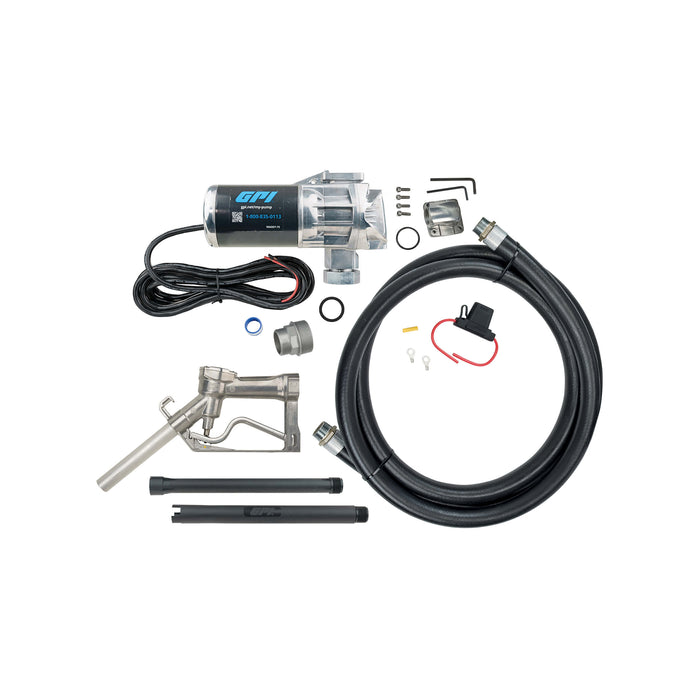

What's in the Box
G20-12AD 12V DC 20 GPM Fuel Transfer Pump, Auto-shut off diesel nozzle, Dispensing hose, Factory-installed power cord, Telescoping suction pipe, Modular fitting w/hardware, Tank adapter, Fuse assembly, Owner's manual
G20-012MD 12V DC 20 GPM Fuel Transfer Pump, Manual shut-off diesel nozzle, Dispensing hose, Factory-installed power cord, Telescoping suction pipe, Modular fitting w/hardware, Tank adapter, Fuse assembly, Owner's manual
G20-012PX 12V DC 20 GPM Fuel Transfer Pump, Modular fitting w/hardware, Tank adapter, Fuse assembly, Owners Manual
G20-012PO 12V DC 20 GPM Fuel Transfer Pump, Modular fitting w/hardware, Tank adapter, Fuse assembly, Owners Manual
