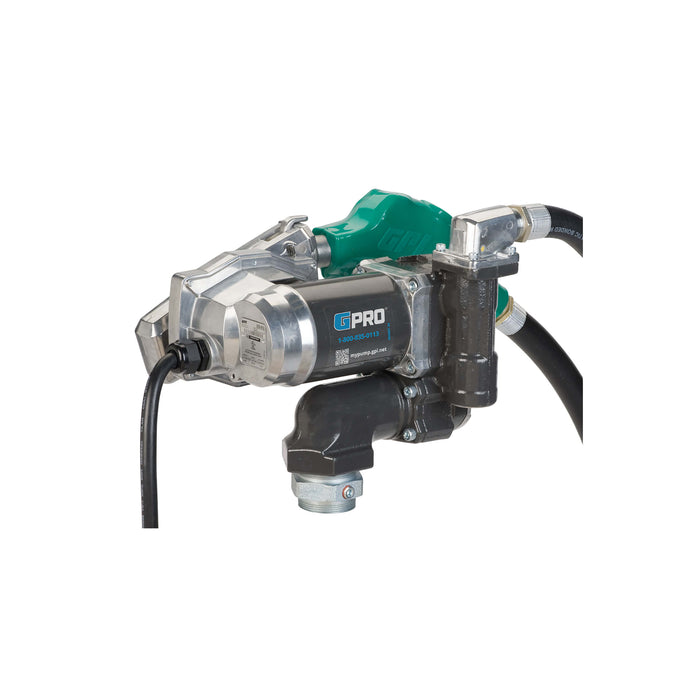

GPRO 25 GPM 24V Fuel Transfer Pump
GPRO® V25-024 Series
SKU 170001-03
| MODEL V25-024AD
| MODEL V25-024MD
| MODEL V25-024PO
Original price
$849.99
-
Original price
$1,049.99
Original price
$1,049.99
$849.99
-
$1,049.99
Current price
$1,049.99
Fluid Statement
Gasoline up to E15 | Diesel Fuel up to B20 | Kerosene Gasoline up to E15 | Diesel Fuel up to B20 | Kerosene Gasoline up to E15 | Diesel Fuel up to B20 | Kerosene | Avgas (100LL) | Jet AThe GPRO V25 series is the next-generation modular vane pump. The V25 is engineered to deliver consistent high-pressure performance from a tough, hard-working modular vane pump. 24V DC motor delivers up to 25 GPM (94 L/min). It’s fast and flexible, able to load up to 750 gallons of fuel uninterrupted, with a quick-fit modular system (4 bolts and an O-ring) that allows easy, leak-free attachment of filter, meter, or both. Whether your business is agriculture, construction, or managing vehicle fleets, staying fueled up is critical, and it must be a quick and dependable process.
Features & Benefits
- EXCLUSIVE: Equipped with Safe Stop Power Down - 30-minute auto power down with easy reset protects pump from overrun. No more worries about forgetting to shut the pump off and exceeding the duty cycle. Pump up to 750 gallons uninterrupted.
- Quick-Fit modular design eliminates dangerous leaks. Four bolts and an O-ring quickly attach a filter, meter or both
- Multidirectional 90-degree outlet to adapt easily for your application
- Lockable Nozzle Holder to deter fuel theft. New drip catch feature helps keep tanks and trucks clean
- Internal Check Valve w/Perfect Prime to keep pump head primped and ready to work, reduces wear avoiding dry prime conditions.
- Easy Access to fuel strainer - simply remove two bolts and strainer cover
- Tank Adapter Included for easy installation, ready for anti-siphon vent kit.
- EXCLUSIVE: Equipped with Safe Stop Power Down - 30-minute auto power down with easy reset protects pump from overrun. No more worries about forgetting to shut the pump off and exceeding the duty cycle. Pump up to 750 gallons uninterrupted.
- Quick-Fit modular design eliminates dangerous leaks. Four bolts and an O-ring quickly attach a filter, meter or both.
- High Pressure Performance ideal with hose reel
- Multidirectional 90 degree outlet to adapt easily for your application
- Internal Check Valve w/Perfect Prime to keep pump head primped and ready to work, reduces wear avoiding dry prime conditions.
- Lockable Nozzle Holder to deter fuel theft. New drip catch feature helps keep tanks and trucks clean.
- Easy Access to fuel strainer - simply remove two bolts and strainer cover
- Tank Adapter Included for easy installation, ready for anti-siphon vent kit.
- EXCLUSIVE: Equipped with Safe Stop Power Down - 30-minute auto power down with easy reset protects pump from overrun. No more worries about forgetting to shut the pump off and exceeding the duty cycle. Pump up to 750 gallons uninterrupted.
- Easy Access to fuel strainer - simply remove two bolts and strainer cover
- Quick-Fit modular design eliminates dangerous leaks. Four bolts and an O-ring quickly attach a filter, meter or both.
- Field replaceable switch and circuit breaker. Switch actuator is diecast solid aluminum, no more broken switches.
- Multidirectional 90 degree outlet to adapt easily for your application
- Lockable Nozzle Holder to deter fuel theft. New drip catch feature helps keep tanks and trucks clean.
- Internal Check Valve w/Perfect Prime to keep pump head primped and ready to work, reduces wear avoiding dry prime conditions.
- For ground-based refueling only. Do not use or mount in or on the aircraft. For use with aviation gasoline (AVGAS 100LL) and kerosene grade (JET A). User should consult NFPA 407 Standard for Aircraft Fuel Servicing for safety requirements during ground fuel servicing of aircraft using liquid petroleum fuels. This product has no actual or implied compliance with this standard.
Specifications
- Accuracy of Reading:
- N/A
- Input:
- 24V (DC)
- Fuse:
- 20 amps
- Type:
- Carbon Vane
- Motor RPMs:
- 1620
- Motor HP:
- .41
- Flow Rate:
- 25 GPM (94 L/min)
- Duty Cycle:
- 30 min on/30 min off
- Working Pressure:
- 20 PSI ( 1.38 bar)
- Inlet:
- 1 in. FNPT
- Outlet:
- 1 in. FNPT
- Mounting Type:
- Direct Mount, 2in. MNPT
- Suction Pipe:
- Polypropylene, Telescoping 15 to 40in. x 1in. MNPT
- Power Cord:
- 18 ft. (5.5m), 10/2 AWG, Factory Installed
- Dispensing Hose:
- 18ft. (5.5m) x 1 in. MNPT UL Listed Hose Assembly
- Nozzle:
- 1 in. FNPT Inlet, Automatic Shut-off, Diesel
- Housing:
- Cast Iron
- Warranty:
- 5-year pump warranty
- UPC:
- 031401008258
- Approvals:
- cULus Motor Listed for Hazardous Locations Class I, Division 2, Group D USA and Canada
- Approvals (cont'd):
- cULus Power-Operated Pumps for Petroleum Products
- Accuracy of Reading:
- N/A
- Input:
- 24V (DC)
- Fuse:
- 20 amps
- Type:
- Carbon Vane
- Motor RPMs:
- 1620
- Motor HP:
- .41
- Flow Rate:
- 25 GPM (94 L/min)
- Duty Cycle:
- 30 min on/30 min off
- Working Pressure:
- 20 PSI ( 1.38 bar)
- Inlet:
- 1 in. FNPT
- Outlet:
- 1 in. FNPT
- Mounting Type:
- Direct Mount, 2in. MNPT
- Suction Pipe:
- Polypropylene, Telescoping 15 to 40in. x 1in. MNPT
- Power Cord:
- 18 ft. (5.5m), 10/2 AWG, Factory Installed
- Dispensing Hose:
- 18ft. (5.5m) x 1 in. MNPT UL Listed Hose Assembly
- Nozzle:
- 1 in. FNPT Inlet, Manual Shut-off, Diesel
- Housing:
- Cast Iron
- Warranty:
- 5-year pump warranty
- UPC:
- 031401008241
- Approvals:
- cULus Motor Listed for Hazardous Locations Class I, Division 2, Group D USA and Canada
- Approvals (cont'd):
- cULus Power-Operated Pumps for Petroleum Products
- Accuracy of Reading:
- N/A
- Input:
- 24V (DC)
- Fuse:
- 20 amps
- Type:
- Carbon Vane
- Motor RPMs:
- 1620
- Motor HP:
- .41
- Flow Rate:
- 25 GPM (94 L/min)
- Duty Cycle:
- 30 min on/30 min off
- Working Pressure:
- 20 PSI ( 1.38 bar)
- Inlet:
- 1 in. FNPT
- Outlet:
- 1 in. FNPT
- Mounting Type:
- Direct Mount, 2in. MNPT
- Suction Pipe:
- N/A
- Power Cord:
- Not Included
- Dispensing Hose:
- Not included
- Nozzle:
- N/A
- Housing:
- Cast Iron
- Warranty:
- 5-year pump warranty
- UPC:
- 031401008234
- Approvals:
- cULus Motor Listed for Hazardous Locations Class I, Division 1, Group D USA and Canada
- Approvals (cont'd):
- cULus Power-Operated Pumps for Petroleum Products
Manuals / Documents
What's in the Box
V25-24AD 24V DC 25 GPM Fuel Transfer Pump, Auto shut-off diesel nozzle, Dispensing hose, Factory-installed power cord, Telescoping suction pipe, Modular fitting w/hardware, Tank adapter, Fuse assembly, Owner's manual
V25-24MD 24V DC 25 GPM Fuel Transfer Pump, Manual shut-off diesel nozzle, Dispensing hose, Factory-installed power cord, Telescoping suction pipe, Modular fitting w/hardware, Tank adapter, Fuse assembly, Owner's manual
V25-24PO 24V DC 25 GPM Fuel Transfer Pump, Modular fitting w/hardware, Tank adapter, Fuse assembly, Owner's manual
