FLOMEC FM Approved Remote Kit Assembly for Turbine Flow Meters with Q9 Display

FLOMEC® Genuine Accessory

SKU 113275-10
Original price $335.00 - Original price $335.00
Original price
$335.00
$335.00 - $335.00
Current price $335.00

FLOMEC products are built to order, and typically have a lead time of 2-3 weeks. After placing your order a GPI representative will contact you regarding the lead time and availability for this item.

The Factory Mutual (FM) Approved Remote Kit Assembly modifies FLOMEC® electronic digital meters for applications in specialized situations including remote indication and high or low fluid temperature metering applications. This kit provides the versatility of panel mounting of the LCD readout up to 100 feet (30 meters) from the turbine. This kit consists of a sensor module, a dust cover assembly, and 10 feet (3 meters) of cable. Requires a complete meter with a Q9 display.

NOTE: To maintain the Factory Mutual Approval of this kit it must be installed in accordance with the instructions given in the owner's manual. It must also be used with a FLOMEC Factory Mutual Approved meter. When the installation is complete, the Factory Mutual decal should appear on the turbine, sensor, and dustcover. Installing this kit onto a non-FM-approved meter assembly will not make the assembly FM Approved.

NOTE: To retain Factory Mutual Approval of this kit, use only Belden Cable #9501, 2 wire shielded.

SPECIFICATIONS
Magnetic Pickup: 1.3k Ohm, 90mH
Signal Type: Sine Wave
Voltage: Peak to Peak, 10 mV to 500 mV
Frequency: 11 to 608 Hz
Cable: 10 ft. (3 m), 2-conductor shielded, Belden #9501

Features & Benefits

  • Maintains FM Approval
  • Accommodates fluid temperatures from -40°F to +250°F (-40°C to +121°C) depending on meter
  • This kit can upgrade an existing FLOMEC meter (with Q9 display) or can be purchased with a new meter
  • Battery-powered display, no additional power required
  • Use with the A1, G2, TM, and 03 Series meters
Specifications
Warranty:
2-yr
Approvals:
CE, ATEX, NEMA 4, IP65, FM Approved, c-us FM Approved
Manuals / Documents
What's in the Box

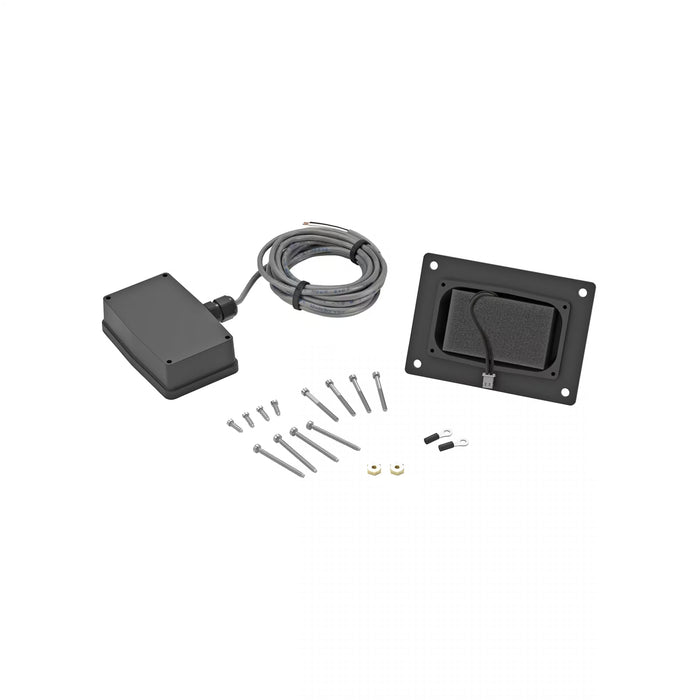

(1) Sensor module assembly, (1) dust cover assembly, (1) installation template, (2) ring terminals, (2) nuts, (4) 4-20 x 3/8-inch, CR, FILL HD, SS Tap screws, (4) 3mm-1.12mm x 35mm, SS PHCR screws, (4) 4-40 x 1.2-inch, Ss, SHCS screws, (1) FM Remote Kit ATEX Guide, (1) Owners Manual, (1) Declaration of Conformity
