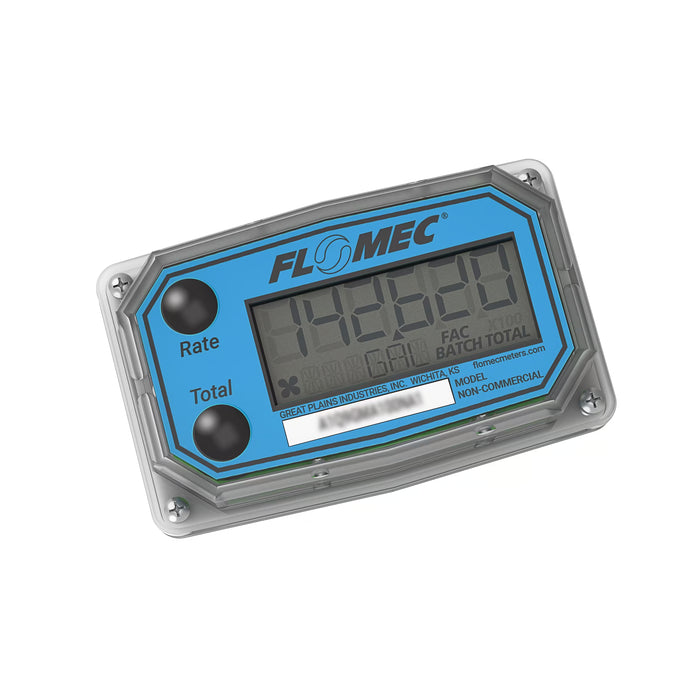

FLOMEC Q9 Retrofit / Replacement Display for A1 & 03A Series Flow Meters
FLOMEC® Genuine Accessory
SKU A1R9GMX025XB3
NOTE: CONTACT PRODUCT SUPPORT TO ORDER THIS PRODUCT SKU
Phone: 800-835-0113 Email: Support-Meters@gplains.com
Original price
$446.00
-
Original price
$446.00
Original price
$446.00
$446.00
-
$446.00
Current price
$446.00
FITS THESE PRODUCTS
2-inch A1 / 03A Series Meters mfg 1-16-23 or before | All 1-inch A1 / 03A Series Meters
NOTE: If you are buying an A1 or 03A 2-inch display, you will need to contact our Product Support department. To determine which meter body style you have, look for the manufacturing date located on the bottom of the meter, or reference the body style illustration below:
Features & Benefits
- Many Field Configurable options for ease of operation including diagnostic mode and custom unit name
- Maximum versatility with optional pre-configured plug-in daughterboards to supply 4-20mA and Scaled Pulse (sold separately)
- Convenient Battery Power Level indication with automatic low battery warning • Safety first design with FM Class 1, Div 1; ATEX; IECex; cFM; CE approvals
- Ultimate ease of operation with permanent preprogrammed 5 point factory calibration in Gallons
- Accommodates a wide range of technical expertise with 3 Field calibration methods (1 point Dispense Display, 5 point Correction Factor, 5 point K-Factor)
- For simple Plug and Play installation, the Q9 is factory calibrated set to display Cumulative Total, ReSettable Batch Total, and Rate of Flow in several different unit and several different time bases (example: gallons per minute)
- 11 pre-programed engineering units and one user-configurable custom unit
- Three field calibration methods available (1 point Dispense Display, 5 point Correction Factor, 5 point K-Factor)
- Operates on two AAA batteries with approximately 2 years of operation
- Many Field Configurable options for ease of operation including diagnostic mode and custom unit name
- Maximum versatility with optional pre-configured plug-in daughterboards to supply 4-20mA and Scaled Pulse (sold separately)
- Convenient Battery Power Level indication with automatic low battery warning • Safety first design with FM Class 1, Div 1; ATEX; IECex; cFM; CE approvals
- Ultimate ease of operation with permanent preprogrammed 5 point factory calibration in Gallons
- Accommodates a wide range of technical expertise with 3 Field calibration methods (1 point Dispense Display, 5 point Correction Factor, 5 point K-Factor)
- For simple Plug and Play installation, the Q9 is factory calibrated set to display Cumulative Total, ReSettable Batch Total, and Rate of Flow in several different unit and several different time bases (example: gallons per minute)
- 11 pre-programed engineering units and one user-configurable custom unit
- Three field calibration methods available (1 point Dispense Display, 5 point Correction Factor, 5 point K-Factor)
- Operates on two AAA batteries with approximately 2 years of operation
- Many Field Configurable options for ease of operation including diagnostic mode and custom unit name
- Maximum versatility with optional pre-configured plug-in daughterboards to supply 4-20mA and Scaled Pulse (sold separately)
- Convenient Battery Power Level indication with automatic low battery warning • Safety first design with FM Class 1, Div 1; ATEX; IECex; cFM; CE approvals
- Ultimate ease of operation with permanent preprogrammed 5 point factory calibration in Gallons
- Accommodates a wide range of technical expertise with 3 Field calibration methods (1 point Dispense Display, 5 point Correction Factor, 5 point K-Factor)
- For simple Plug and Play installation, the Q9 is factory calibrated set to display Cumulative Total, ReSettable Batch Total, and Rate of Flow in several different unit and several different time bases (example: gallons per minute)
- 11 pre-programed engineering units and one user-configurable custom unit
- Three field calibration methods available (1 point Dispense Display, 5 point Correction Factor, 5 point K-Factor)
- Operates on two AAA batteries with approximately 2 years of operation
Specifications
- Warranty:
- 2-yr
- UPC:
- 031401010329
- Approvals:
- CE, ATEX, FM Approved, c-us FM Approved, IEC/IECEx
- Warranty:
- 2-yr
- UPC:
- 031401010312
- Approvals:
- CE, ATEX, FM Approved, c-us FM Approved, IEC/IECEx
- Warranty:
- 2-yr
- UPC:
- 031401010336
- Approvals:
- CE, ATEX, FM Approved, c-us FM Approved, IEC/IECEx
Manuals / Documents
What's in the Box
Q9 Computer Assembly, (2) AAA Alkaline Batteries, Battery Pad, Seal, Pickup Coil Assembly, (4) 4-40 3/8-inch machine screws, (4) 4-20 x 3/8-inch Plastite screws
Q9 Computer Assembly, (2) AAA Alkaline Batteries, Battery Pad, Seal, Pickup Coil Assembly, (4) 4-40 3/8-inch machine screws, (4) 4-20 x 3/8-inch Plastite screws
Q9 Computer Assembly, (2) AAA Alkaline Batteries, Battery Pad, Seal, Pickup Coil Assembly, (4) 4-40 3/8-inch machine screws, (4) 4-20 x 3/8-inch Plastite screws
