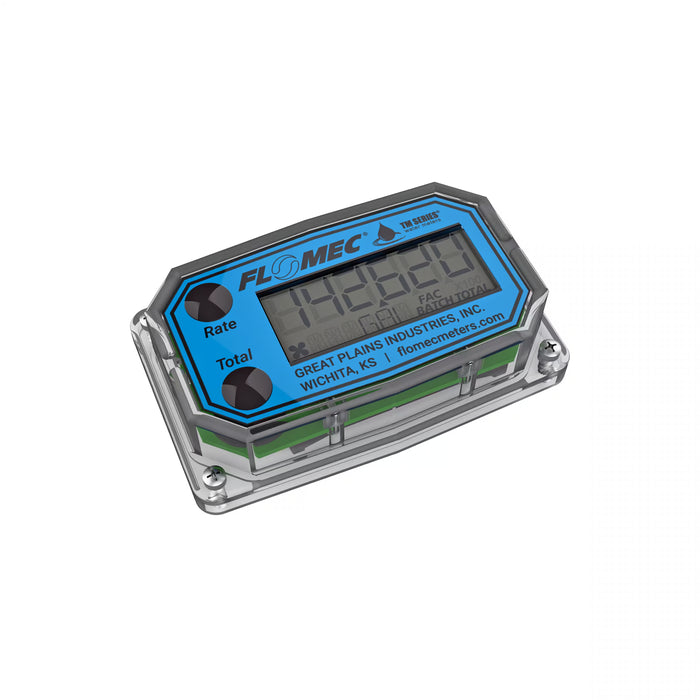

FLOMEC Q9 Retrofit / Replacement Display for TM Series Flow Meters

FLOMEC® Genuine Accessory

SKU TM05XR9GMA
Original price $319.00 - Original price $319.00
Original price
$319.00
$319.00 - $319.00
Current price $319.00

Some FLOMEC products are built to order, and typically have a lead time of 2-3 weeks

After placing your order a GPI representative will contact you regarding the lead time and availability for this item.

Check out FLOMEC’s Q9 Retrofit Replacement Display for TM Series flow meter to see all the new efficient and time-saving features.

Features & Benefits

  • Many Field Configurable options for ease of operation including diagnostic mode and custom unit name
  • Maximum versatility with optional pre-configured plug-in daughterboards to supply 4-20mA and Scaled Pulse (sold separately)
  • Convenient Battery Power Level indication with automatic low battery warning
  • Ultimate ease of operation with permanent preprogrammed 5 point factory calibration in Gallons
  • Accommodates a wide range of technical expertise with 3 Field calibration methods (1 point Dispense Display, 5 point Correction Factor, 5 point K-Factor)
  • For simple Plug and Play installation, the Q9 is factory calibrated set to display Cumulative Total, ReSettable Batch Total, and Rate of Flow in several different unit and several different time bases (example: gallons per minute)
  • 11 pre-programed engineering units and one user-configurable custom unit
  • Three field calibration methods available (1 point Dispense Display, 5 point Correction Factor, 5 point K-Factor)
  • Operates on two AAA batteries with approximately 2 years of operation
Product Model Options: For 1/2-inch (05) TM meter
Unit of Measure: Gallon
Specifications
Warranty:
2-yr
UPC:
031401010428
Approvals:
CE. Complies with the requirements of the EMC Directive 89/336/EEC.
Manuals / Documents
What's in the Box
Q9 Computer Assembly, (2) AAA Alkaline Batteries, Battery Pad, Seal, Pickup Coil Assembly, (4) 4-20 x 3/8-inch Plastite screws
