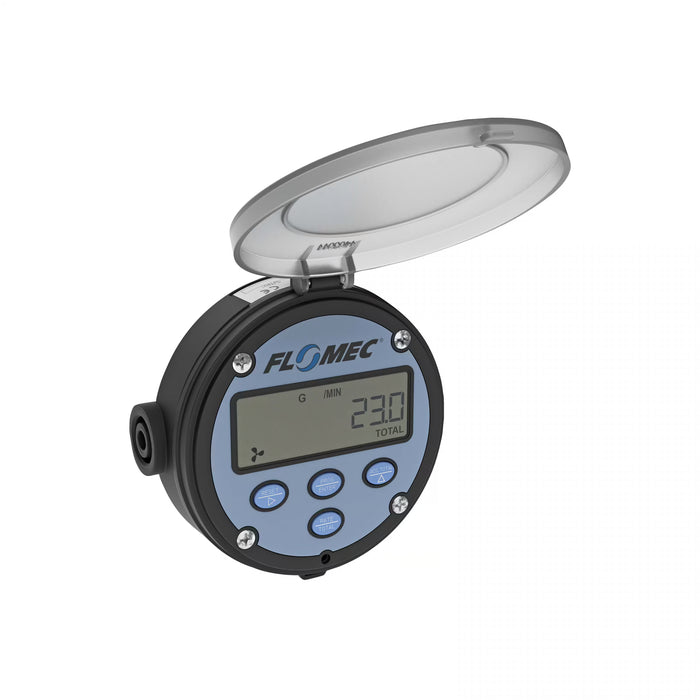

FLOMEC RT14 Multiple Output Flow Rate Totalizer

FOR USERS WHO REQUIRE A MORE SOPHISTICATED LOCAL DISPLAY - The FLOMEC® LCD display RT14 is a fully programmable self-powered flow rate totalizer specifically designed for computing and displaying flow rates and totals from flow meters with pulse, sine wave, or frequency outputs. The instrument displays resettable (batch) total, accumulated total, and instantaneous flow rates in engineering units as programmed by the user. Flow meter inputs: suitable for use with most pulse/ frequency output meters such as reed switch, coil, voltage pulse (Wiegand), NPN, and PNP.

CONTROL OUTPUTS

Scaled and unscaled pulse outputs allow transmission of accumulated flow data to remote control systems. Flow alarms are available to protect flow systems from flow rates that are ‘high’, ‘low’, or both, and an analog 4-20mA signal offers flow rate monitoring and control by accurately transmitting flow rate readings from the flowmeter to your PLC or PID control system.

PROGRAMMING

Simple PIN-protected flow chart programming with English prompts guides you through the programming routine greatly reducing the need to refer to the instruction manual.
