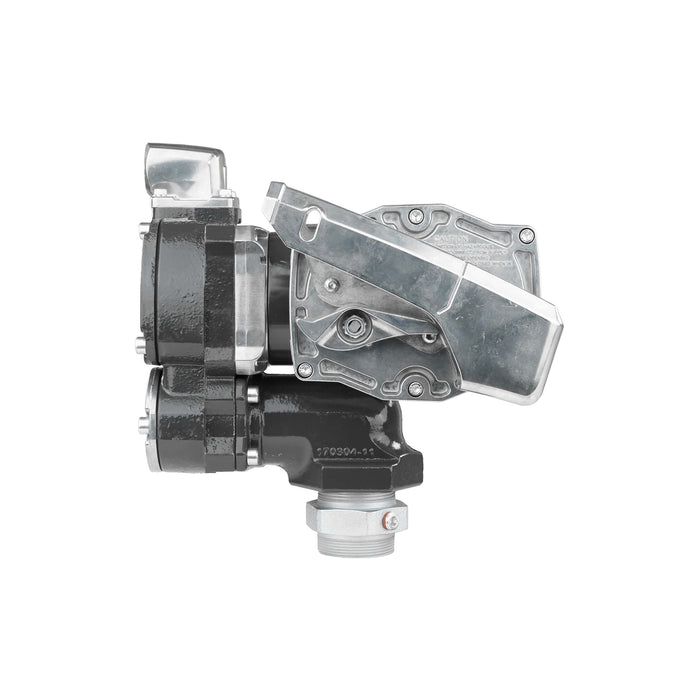

GPRO 25GPM 12V Fuel Transfer Pump for Extreme Temperatures
GPRO® V25 Series
SKU 170000-06
| MODEL V25-012AD+XT
| MODEL V25-012PO+N08+XT
Original price
$829.99
-
Original price
$1,299.99
Original price
$1,299.99
$829.99
-
$1,299.99
Current price
$1,299.99
Recommended for use with these fuels:
Gasoline up to E15 | Diesel Fuel up to B20 | Kerosene Gasoline up to E15 | Diesel Fuel up to B20 | Kerosene | Avgas (100LL) | Jet A | Jet A-1For environments with EXTREME TEMPERATURES - Tested to -40° F (-40° C), the GPRO V25-012 XT series is the next-generation modular vane pump. The V25 is engineered to deliver consistent high-pressure performance from a tough, hard-working modular vane pump. 12V DC motor delivers up to 25 GPM (94 L/min). It’s fast and flexible; able to load up to 750 gallons of fuel uninterrupted, with a quick-fit modular system (4 bolts and an O-ring) that allows easy, leak-free attachment of filter, meter, or both. Extreme Temperature Series (XT) models available. Whether your business is agriculture, construction, or managing vehicle fleets, staying fueled up is critical and it must be a quick and dependable process.
Features & Benefits
- For environments with EXTREME TEMPERATURES - Tested to -40° F (-40° C)
- Equipped with Safe Stop, a timer that automatically turns the pump off to prevent running unattended and exceeding a thirty-minute duty cycle. Turn the power switch off and back on again to reset timer and resume operation. Over Voltage Sensor protects the 12V(dc) pump motor from damage if it is connected to incorrect 24V(dc) power supply.
- Quick-Fit modular design eliminates leaks. Four bolts and an O-ring quickly attach a filter, meter or both.
- Multidirectional 90-degree outlet to adapt easily for your application
- Lockable Nozzle Holder to deter fuel theft. New drip catch feature helps keep tanks and trucks clean
- Internal Check Valve w/Perfect Prime to keep pump head primed and ready to work, reduces wear avoiding dry prime conditions.
- Easy Access to fuel strainer - simply remove two bolts and strainer cover
- Tank Adapter Included for easy installation, ready for anti-siphon vent kit.
- For environments with EXTREME TEMPERATURES - Tested to -40° F (-40° C)
- Equipped with Safe Stop, a timer that automatically turns the pump off to prevent running unattended and exceeding a thirty-minute duty cycle. Turn the power switch off and back on again to reset timer and resume operation. Over Voltage Sensor protects the 12V(dc) pump motor from damage if it is connected to incorrect 24V(dc) power supply.
- Quick-Fit modular design eliminates leaks. Four bolts and an O-ring quickly attach a filter meter or both.
- Lockable Nozzle Holder to deter fuel theft. New drip catch feature helps keep tanks and trucks clean.
- Multidirectional 90 degree outlet to adapt easily for your application
- Internal Check Valve w/Perfect Prime to keep pump head primed and ready to work, reduces wear avoiding dry prime conditions.
- Easy Access to fuel strainer - simply remove two bolts and strainer cover
- For ground-based refueling only. Do not use or mount in or on the aircraft. For use with aviation gasoline (AVGAS 100LL) and kerosene grade (JET A). User should consult NFPA 407 Standard for Aircraft Fuel Servicing for safety requirements during ground fuel servicing of aircraft using liquid petroleum fuels. This product has no actual or implied compliance with this standard.
Specifications
- Max. Flow Rate:
- 25 GPM (94 L/min)
- Voltage Input:
- 12V (DC)
- Technology:
- Sliding Vane
- Amps Rated:
- 35 amps
- Duty Cycle:
- 30 min on/30 min off
- Power Cord:
- 18 ft. (5.5m), 10/2 AWG, Factory Installed
- Max. Discharge Pressure:
- 20 PSI ( 1.38 bar)
- Operating Temperature:
- -40° F to 125° (-40° C to 52° C)
- Suction Lift:
- Up to 15 ft. (4.5 m) at Sea Level 70° F (21.1° C)
- Discharge Lift:
- Up to 18 ft. (5.5 m) at Sea Level 70° F (21.1° C)
- Pump Housing Material:
- Cast Iron
- Wetted Materials:
- Acetal | Aluminum | Carbon | Cast Iron | FKM | NBR | PBT/Polyester | Steel
- Mounting Type/Thread:
- Direct Mount, 2in. MNPT
- Suction Pipe:
- Polypropylene, Telescoping 15 to 40in. x 1in. MNPT
- Inlet:
- 1 in. FNPT
- Outlet:
- Modular, 1 in. FNPT
- Dispensing Hose:
- 18ft. (5.5m) x 1 in. MNPT UL Listed Hose Assembly
- Nozzle:
- 1 in. FNPT Inlet, Automatic Shut-off, Diesel
- Nozzle Holder Type:
- Lockable with Drip Catch
- Warranty:
- 5-year pump warranty
- UPC:
- 031401008272
- Approvals:
- cULus Motor Listed for Hazardous Locations Class I, Division 2, Group D USA and Canada
- Max. Flow Rate:
- 25 GPM (94 L/min)
- Voltage Input:
- 12V (DC)
- Technology:
- Sliding Vane
- Amps Rated:
- 35 amps
- Duty Cycle:
- 30 min on/30 min off
- Power Cord:
- Not Included
- Max. Discharge Pressure:
- 20 PSI ( 1.38 bar)
- Operating Temperature:
- -40° F to 125° (-40° C to 52° C)
- Suction Lift:
- Up to 15 ft. (4.5 m) at Sea Level 70° F (21.1° C)
- Discharge Lift:
- Up to 18 ft. (5.5 m) at Sea Level 70° F (21.1° C)
- Pump Housing Material:
- Cast Iron
- Wetted Materials:
- Acetal | Aluminum | Carbon | Cast Iron | FKM | NBR | PBT/Polyester | Steel
- Mounting Type/Thread:
- Direct Mount, 2in. MNPT
- Suction Pipe:
- Not included
- Inlet:
- 1 in. FNPT
- Outlet:
- Modular, 1 in. FNPT
- Dispensing Hose:
- Not included
- Nozzle:
- Not included
- Nozzle Holder Type:
- Lockable with Drip Catch
- Warranty:
- 5-year pump warranty
- UPC:
- 031401009248
- Approvals:
- cULus Motor Listed for Hazardous Locations Class I, Division 1, Group D USA and Canada
Also Available At
Manuals / Documents
What's in the Box
V25-12AD Fuel transfer pump, Lockable nozzle holder, Automatic shut-off diesel nozzle, Dispensing hose, Factory-installed power cord, Ring terminals, Telescoping suction pipe, Modular outlet fitting w/hardware, Tank adapter, Fuse assembly, Owners manual
V25-12PO-XTS Fuel transfer pump, Lockable nozzle holder, Modular outlet fitting w/hardware, Tank adapter, Fuse assembly, Owners manual
