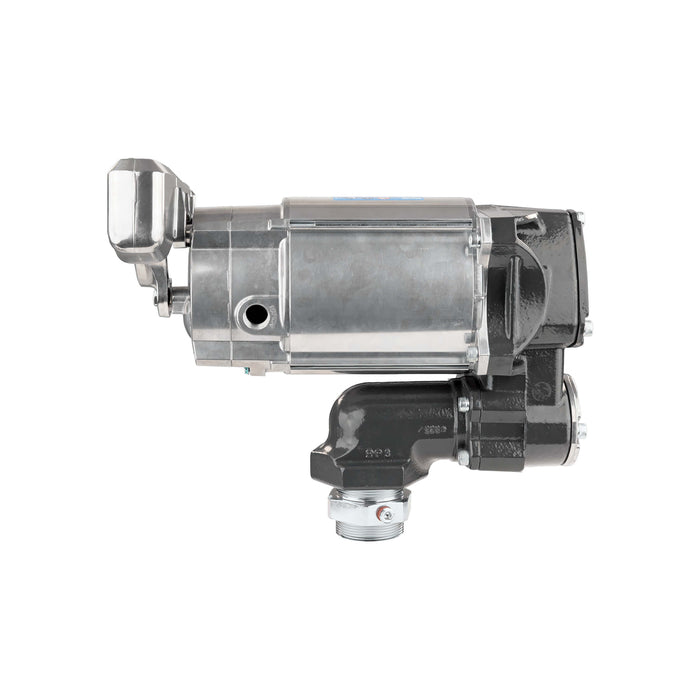

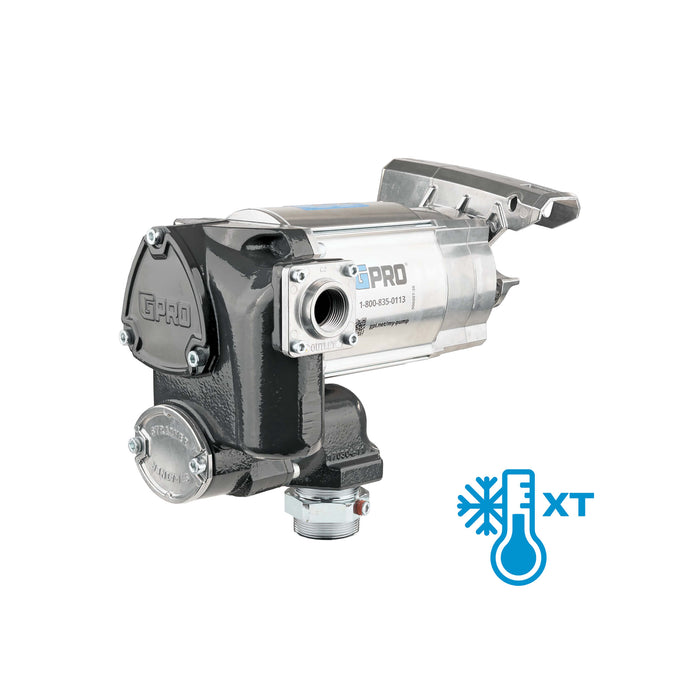

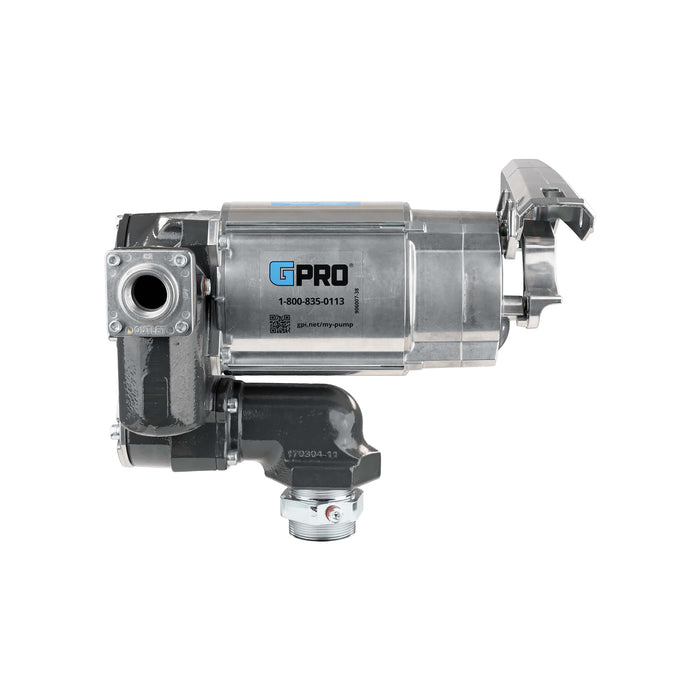

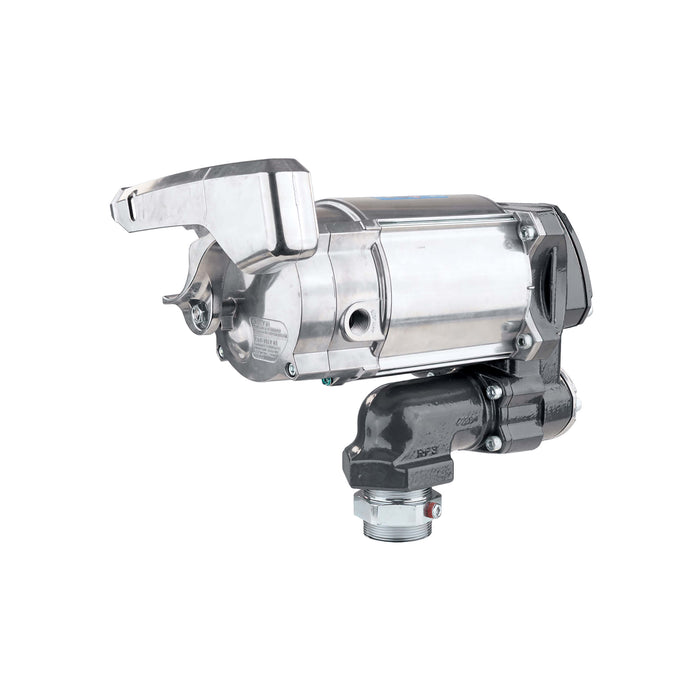

GPRO 35 GPM 115V Fuel Transfer Pump for Extreme Temperatures

GPRO 35 GPM 115V Fuel Transfer Pump for Extreme Temperatures

GPRO® PRO35-115 Series

SKU 504000-05 | MODEL PRO35-115PO/XTS
Original price $1,649.99 - Original price $1,649.99
Original price
$1,649.99
$1,649.99 - $1,649.99
Current price $1,649.99

Recommended for use with these fuels:

Gasoline up to E15 | Diesel Fuel up to B20 | Kerosene | Avgas (100LL) | Jet A
For environments with EXTREME TEMPERATURES - Tested to -40° F (-40° C), the GPRO PRO35-115 professional-grade fuel transfer pump is the pump of choice for your large stationary fuel tanks. This powerful pump will fill even the biggest fuel tanks quickly and easily so you can go back to clearing debris, planting crops, or stacking lumber. Available in a variety of configurations to meet your application's needs. The 115V AC motor delivers flow rates up to 35 GPM (132 L/min) for applications with low viscosity petroleum fuels such as gasoline, diesel fuel, and kerosene. Extreme temperature series (XTS) model, and Pump and meter combinations available for the complete package.

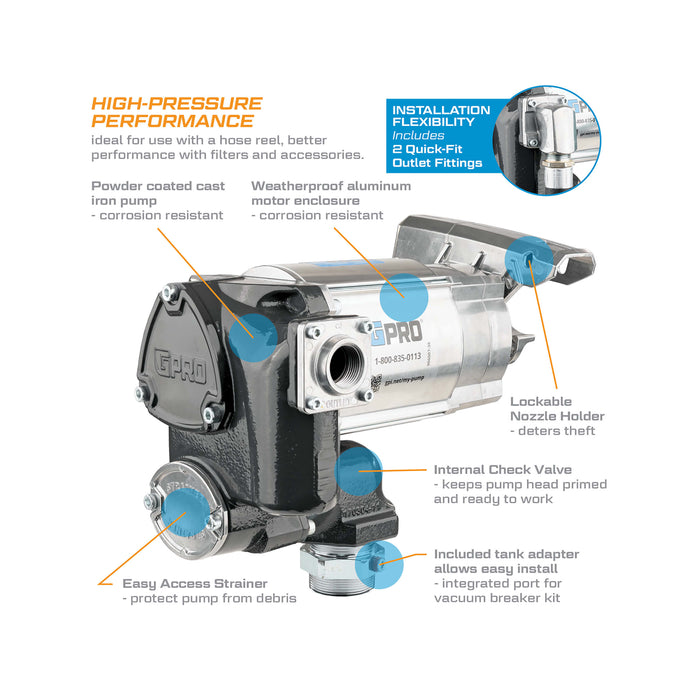

Features & Benefits

  • For environments with EXTREME TEMPERATURES - Tested to -40° F (-40° C)
  • Compatible with Hose Reel
  • High Pressure Pump
  • High Flow Rate
  • Extended duty cycle exceeds industry standards
  • Thermally protected motor

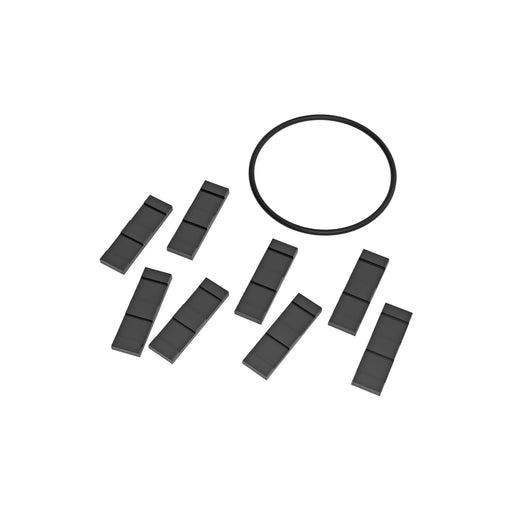

  • Field replaceable switch and vanes
  • Vacuum breaker ready
  • For ground-based refueling only. Do not use or mount in or on the aircraft. For use with aviation gasoline (Avgas 100LL), Jet A, and Jet A-1. User should consult NFPA 407 Standard for Aircraft Fuel Servicing for safety requirements during ground fuel servicing of aircraft using liquid petroleum fuels. This product has no actual or implied compliance with this standard. Owners and operators are responsible for compliance to all applicable regulations.
Product Model Options: Pump only, XT model (AVGAS (100LL) / JET A compatible)
Specifications
Max. Flow Rate:
35 GPM (132 L/min)
Voltage Input:
115V (AC) 60Hz, 230V (AC) 60Hz Dual Voltage Configurable
Technology:
Sliding Vane
Amps Rated:
9.8 amps
Duty Cycle:
30 min on/30 min off
Power Cord:
Power cord Not Included
Max. Discharge Pressure:
25 PSI (1.72 bar)
Operating Temperature:
-40° F to 125° (-40° C to 52° C)
Suction Lift:
Up to 15 ft. (4.5 m) at Sea Level 70° F (21.1° C)
Discharge Lift:
Up to 18 ft. (5.5 m) at Sea Level 70° F (21.1° C)
Pump Housing Material:
Powder Coated Cast Iron
Wetted Materials:
Acetal | Aluminum | Carbon | Cast Iron | FKM | NBR | PBT/Polyester | Steel
Mounting Type/Thread:
Direct Mount, 2in. MNPT
Suction Pipe:
Not included
Inlet:
1.25-inch FNPT
Outlet:
1 in. FNPT
Dispensing Hose:
Not included
Nozzle:
Not included
Nozzle Holder Type:
Lockable
Warranty:
5-year pump warranty
UPC:
031401003666
Approvals:
cULus Motor Listed for Hazardous Locations Class I, Division 1, Group D USA and Canada
Approvals (cont'd):
cULus Power-Operated Pumps for Petroleum Products
Also Available At
Manuals / Documents
Applications


  • Agriculture

  • The PRO35-115 transfer pump is engineered to meet the demands of today's modern farming. Its durable aluminum construction delivers reliable performance to fuel your tractors, combines, and other off highway vehicles season after season.

  • Industrial

  • Get it done fast with the PRO35-115. With a flow rate of 35 gallons per minute, this stationary transfer pump makes refueling equipment for oil exploration, mining, logging, and drilling easy.

  • Fleet

  • The GPRO PRO35-115 fuel transfer pump is equipped to handle all of your high-volume fueling needs, including buses, delivery vehicles, and semi-trucks and trailers.

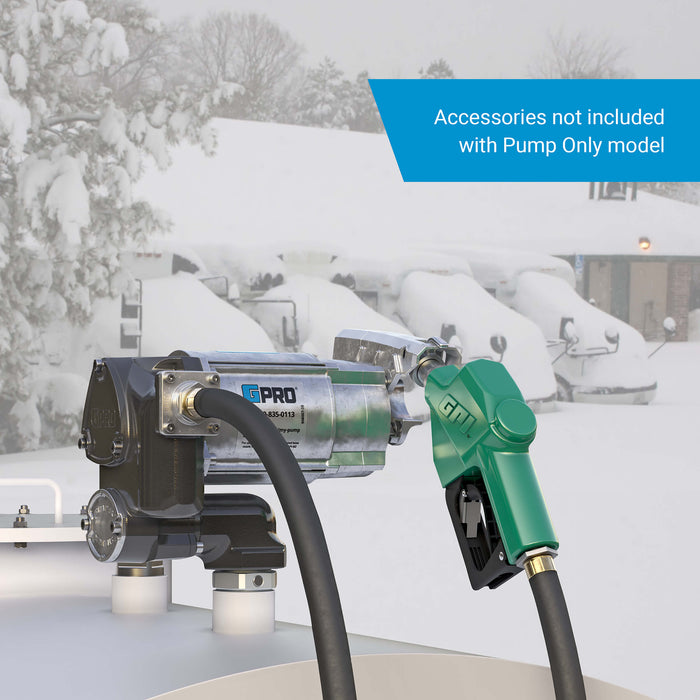

  • Stationary Tank

  • Featuring a flow rate of 35 gallons per minute, this pump is ideal for refueling from a stationary tank to heavy duty trucks and construction equipment.

What's in the Box

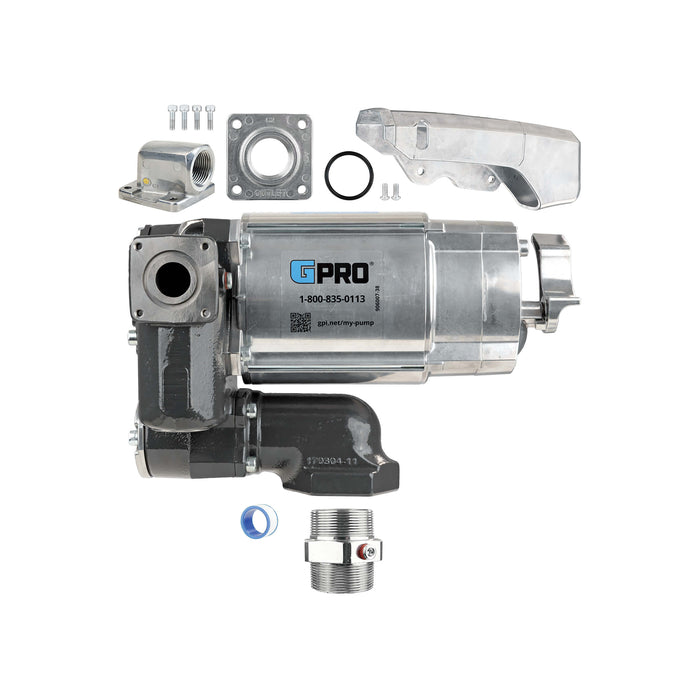

PRO35-115PO/XTS Fuel transfer pump, Tank adapter, Lockable nozzle holder, Owners manual
