GPRO IECEx-ATEX-CE APPROVED 76 L/min 230V FUEL TRANSFER PUMP
GPRO® V20 Series
SKU 171000-04
| MODEL V20-230PX-B08
| MODEL V20-230PX-B06
Original price
$799.99
-
Original price
$799.99
Original price
$799.99
$799.99
-
$799.99
Current price
$799.99
Recommended for use with these fuels:

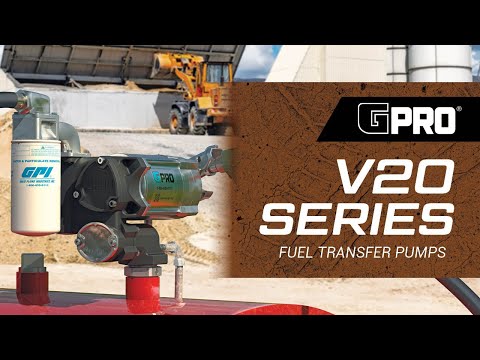

Gasoline up to E15 | Diesel Fuel up to B20 | Kerosene | Avgas (100LL) | Jet A | Jet A-1 Gasoline up to E15 | Diesel Fuel up to B20 | Kerosene | Avgas (100LL) | Jet A | Jet A-1The GPRO V20-230 series is the next-generation modular vane pump for stationary applications fueling medium and large equipment. The V20 is engineered to deliver consistent high-pressure performance from a tough, hard-working modular vane pump. 230V AC motor delivers up to 76 L/min (20 GPM). It’s fast and flexible; able to load up to 600 gallons of fuel uninterrupted, with a quick-fit modular system (4 bolts and an O-ring) that allows easy, leak-free attachment of filter, meter, or both. Whether your business is agriculture, construction, or managing vehicle fleets, staying fueled up is critical and it must be a quick and dependable process.
Features & Benefits
- Quick-Fit modular design eliminates leaks. Four bolts and an O-ring quickly attach a filter, meter, or both.
- Internationally rated for explosive atmospheres: IECEx, ATEX, CE
- Dual voltage configurable: 230V (AC) 50/60 Hz / 115V (AC) 60 Hz
- Lockable Nozzle Holder to deter fuel theft. New drip catch feature helps keep tanks and trucks clean
- Multidirectional 90 degree outlet to adapt easily for your application
- 1-inch outlet for fueling large diesel equipment; High Pressure Performance ideal with hose reel
- Tank Adapter Included for easy installation, ready for vacuum breaker kit.
- For ground-based refueling only. Do not use or mount in or on the aircraft. For use with aviation gasoline (Avgas 100LL), Jet A, and Jet A-1. User should consult NFPA 407 Standard for Aircraft Fuel Servicing for safety requirements during ground fuel servicing of aircraft using liquid petroleum fuels. This product has no actual or implied compliance with this standard. Owners and operators are responsible for compliance to all applicable regulations.
- Quick-Fit modular design eliminates leaks. Four bolts and an O-ring quickly attach a filter, meter, or both.
- Internationally rated for explosive atmospheres: IECEX, ATEX, CE
- Dual voltage configurable: 230V (AC) 50/60 Hz / 115V (AC) 60 Hz
- Lockable Nozzle Holder to deter fuel theft. New drip catch feature helps keep tanks and trucks clean
- Multidirectional 90 degree outlet to adapt easily for your application
- 3/4-inch outlet for fueling gasoline and medium to large diesel equipment; High Pressure Performance ideal with hose reel
- Tank Adapter Included for easy installation, ready for vacuum breaker kit.
- For ground-based refueling only. Do not use or mount in or on the aircraft. For use with aviation gasoline (Avgas 100LL), Jet A, and Jet A-1. User should consult NFPA 407 Standard for Aircraft Fuel Servicing for safety requirements during ground fuel servicing of aircraft using liquid petroleum fuels. This product has no actual or implied compliance with this standard. Owners and operators are responsible for compliance to all applicable regulations.
Specifications
- Max. Flow Rate:
- 20 GPM (76 L/min)
- Voltage Input:
- 230V (AC) 50/60Hz, 115V (AC) 60Hz Dual Voltage Configurable
- Technology:
- Sliding Vane
- Amps Rated:
- 2.7 amps
- Duty Cycle:
- 30 min on/30 min off
- Power Cord:
- Not Included
- Max. Discharge Pressure:
- 25 PSI (1.72 bar)
- Operating Temperature:
- -20° F to 125° F (-29° C to 52° C)
- Suction Lift:
- Up to 15 ft. (4.5 m) at Sea Level 70° F (21.1° C)
- Discharge Lift:
- Up to 18 ft. (5.5 m) at Sea Level 70° F (21.1° C)
- Pump Housing Material:
- Cast Iron
- Wetted Materials:
- Acetal | Aluminum | Carbon | Cast Iron | FKM | NBR | PBT/Polyester | Steel
- Mounting Type/Thread:
- Direct Mount, 2 in. BSPT
- Suction Pipe:
- Not included
- Inlet:
- 1 in. Female BSPP
- Outlet:
- Modular, 1 in. Female BSPP
- Dispensing Hose:
- Not included
- Nozzle Holder Type:
- Lockable with Drip Catch
- Warranty:
- 5-year pump warranty
- UPC:
- 031401011609
- Approvals:
- IECEx, ATEX, CE|cULus Motor Listed for Hazardous Locations Class I, Division 1, Group D USA and Canada
- Approvals (cont'd):
- cULus Power-Operated Pumps for Petroleum Products
- Max. Flow Rate:
- 20 GPM (76 L/min)
- Voltage Input:
- 230V (AC) 50/60Hz, 115V (AC) 60Hz Dual Voltage Configurable
- Technology:
- Sliding Vane
- Amps Rated:
- 2.7 amps
- Duty Cycle:
- 30 min on/30 min off
- Power Cord:
- Not Included
- Max. Discharge Pressure:
- 25 PSI (1.72 bar)
- Operating Temperature:
- -20° F to 125° F (-29° C to 52° C)
- Suction Lift:
- Up to 15 ft. (4.5 m) at Sea Level 70° F (21.1° C)
- Discharge Lift:
- Up to 18 ft. (5.5 m) at Sea Level 70° F (21.1° C)
- Pump Housing Material:
- Cast Iron
- Wetted Materials:
- Acetal | Aluminum | Carbon | Cast Iron | FKM | NBR | PBT/Polyester | Steel
- Mounting Type/Thread:
- Direct Mount, 2 in. BSPT
- Suction Pipe:
- Not included
- Inlet:
- 1 in. Female BSPP
- Outlet:
- Modular, 3/4 in. Female BSPP
- Dispensing Hose:
- Not included
- Nozzle Holder Type:
- Lockable with Drip Catch
- Warranty:
- 5-year pump warranty
- UPC:
- 031401011678
- Approvals:
- IECEx, ATEX, CE|cULus Motor Listed for Hazardous Locations Class I, Division 1, Group D USA and Canada
- Approvals (cont'd):
- cULus Power-Operated Pumps for Petroleum Products
Manuals / Documents
What's in the Box
V20-230PX 230V AC 20 GPM Fuel Transfer Pump, Nozzle cover, 1-inch modular outlet fitting w/hardware, Tank adapter, Thread tape, Owner's manual
V20-230PX 230V AC 20 GPM Fuel Transfer Pump, Nozzle cover, 3/4-inch modular outlet fitting w/hardware, Tank adapter, Thread tape, Owner's manual
