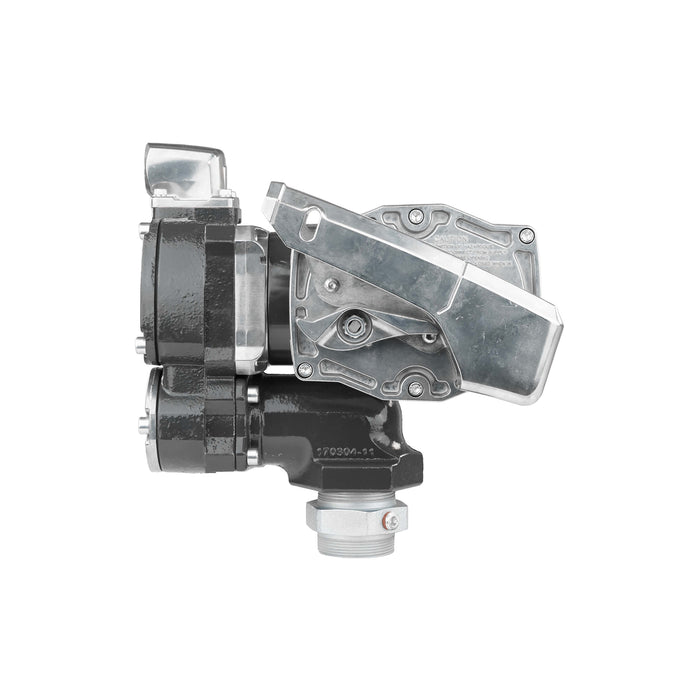

GPRO IECEX-ATEX-CE APPROVED 94L/MIN 12V Fuel Transfer Pump

GPRO® V25 Series

SKU 170000-04 | MODEL V25-012PX
Original price $799.99 - Original price $799.99
Original price
$799.99
$799.99 - $799.99
Current price $799.99

Fluid Statement

Gasoline up to E15 | Diesel Fuel up to B20 | Kerosene | Avgas (100LL) | Jet A | Jet A-1

The GPRO V25 series is the next-generation modular vane pump. The V25 is engineered to deliver consistent high-pressure performance from a tough, hard-working modular vane pump. 12V DC motor delivers up to 94 L/min (25 GPM). It's fast and flexible, able to load up to 750 gallons of fuel uninterrupted, with a quick-fit modular system (4 bolts and an O-ring) that allows easy, leak-free attachment of filter, meter, or both. Whether your business is agriculture, construction, or managing vehicle fleets, staying fueled up is critical, and it must be a quick and dependable process.

Features & Benefits

  • EXCLUSIVE: Equipped with Safe Stop Power Down - 30-minute auto power down with easy reset protects pump from overrun. No more worries about forgetting to shut the pump off and exceeding the duty cycle. Pump up to 750 gallons uninterrupted.
  • Internationally rated for explosive atmospheres: IECEx, ATEX, CE
  • Quick-Fit modular design eliminates dangerous leaks. Four bolts and an O-ring quickly attach a filter, meter or both.
  • Field replaceable switch and circuit breaker. Switch actuator is diecast solid aluminum, no more broken switches.
  • Lockable Nozzle Holder to deter fuel theft. New drip catch feature helps keep tanks and trucks clean.
  • Multidirectional 90 degree outlet to adapt easily for your application
  • Internal Check Valve w/Perfect Prime to keep pump head primped and ready to work, reduces wear avoiding dry prime conditions.
  • Easy Access to fuel strainer - simply remove two bolts and strainer cover
  • For ground-based refueling only. Do not use or mount in or on the aircraft. For use with aviation gasoline (AVGAS 100LL) and kerosene grade (JET A). User should consult NFPA 407 Standard for Aircraft Fuel Servicing for safety requirements during ground fuel servicing of aircraft using liquid petroleum fuels. This product has no actual or implied compliance with this standard.
Product Model Options: Pump Only, IECEX-ATEX-CE model (AVGAS (100LL) / JET A compatible)
Specifications
Input:
12V (DC)
Fuse:
40 amps
Type:
Carbon Vane
Motor RPMs:
1620
Motor HP:
0.41
Flow Rate:
25 GPM (94 L/min)
Duty Cycle:
30 min on/30 min off
Working Pressure:
20 PSI ( 1.38 bar)
Max Working Temperature:
-20° F to 125° F (-29° C to 52° C)
Inlet:
1 in. BSPP
Outlet:
1 in. BSPP
Mounting Type:
Direct Mount, 2in. MNPT
Suction Pipe:
Not included
Power Cord:
Not Included
Dispensing Hose:
Not included
Housing:
Cast Iron
Warranty:
5-year pump warranty
UPC:
031401009231
Approvals:
cULus Motor Listed for Hazardous Locations Class I, Division 1, Group D USA and Canada
Approvals (cont'd):
cULus Power-Operated Pumps for Petroleum Products
Also Available At
Manuals / Documents
What's in the Box
V25-12PX 12V DC 25 GPM Fuel Transfer Pump, Modular fitting w/hardware, Tank adapter, Fuse assembly, Owner's manual
