GPRO Remote Dispenser with 2-40 GPM Mechanical Fuel Meter
GPRO® Remote Dispenser System
SKU 143650-21
| MODEL QM40-G8N-RD
| MODEL QM40-L8N-RD
Original price
$1,999.99
-
Original price
$1,999.99
Original price
$1,999.99
$1,999.99
-
$1,999.99
Current price
$1,999.99
Recommended for use with these fuels:
Gasoline up to E15 | Diesel Fuel up to B20 | Kerosene | Avgas (100LL) | Jet A Gasoline up to E15 | Diesel Fuel up to B20 | Kerosene | Avgas (100LL) | Jet AThe GPRO Remote Dispenser System provides ground-level access to meter and nozzle when used on in-ground or above-ground tanks.
Purchase pump, nozzle, filter, and hose separately - see the Remote Dispenser collection.
For ground-based refueling only. Do not use or mount in or on the aircraft. For use with aviation gasoline (Avgas 100LL), Jet A, and Jet A-1 . User should consult NFPA 407 Standard for Aircraft Fuel Servicing for safety requirements during ground fuel servicing of aircraft using liquid petroleum fuels. This product has no actual or implied compliance with this standard. Owners and operators are responsible for compliance to all applicable regulations.
Features & Benefits
- Extreme Accuracy, within +/- 1/2% across a flow range from 2 to 40 GPM.
- Magnetic Drive eliminates drive shaft leaks.
- Oval Gear technology at an affordable price
- Extreme Accuracy, within +/- 1/2% across a flow range from 2 to 40 GPM.
- Magnetic Drive eliminates drive shaft leaks.
- Oval Gear technology at an affordable price
Specifications
- Flow Range:
- 2 - 40 GPM (8-150 L/min)
- Accuracy of Reading:
- +/- 1/2% across flow range from 2-40 GPM (8-150 L/min)
- Type:
- Oval Gear
- Duty Cycle:
- Continuous
- Working Pressure:
- 50 PSI (3.45 bar)
- Max Working Temperature:
- -40° F to 125° (-40° C to 52° C)
- Inlet:
- 1 in. FNPT
- Outlet:
- 1 in. FNPT
- Warranty:
- 5-year meter warranty
- UPC:
- 0 31401 01191 3
- Approvals:
- cULus Listed
- Flow Range:
- 2 - 40 GPM (8-150 L/min)
- Accuracy of Reading:
- +/- 1/2% across flow range from 2-40 GPM (8-150 L/min)
- Type:
- Oval Gear
- Duty Cycle:
- Continuous
- Working Pressure:
- 50 PSI (3.45 bar)
- Max Working Temperature:
- -40° F to 125° (-40° C to 52° C)
- Inlet:
- 1 in. FNPT
- Outlet:
- 1 in. FNPT
- Warranty:
- 5-year meter warranty
- UPC:
- 0 31401 01192 0
- Approvals:
- cULus Listed
Manuals / Documents

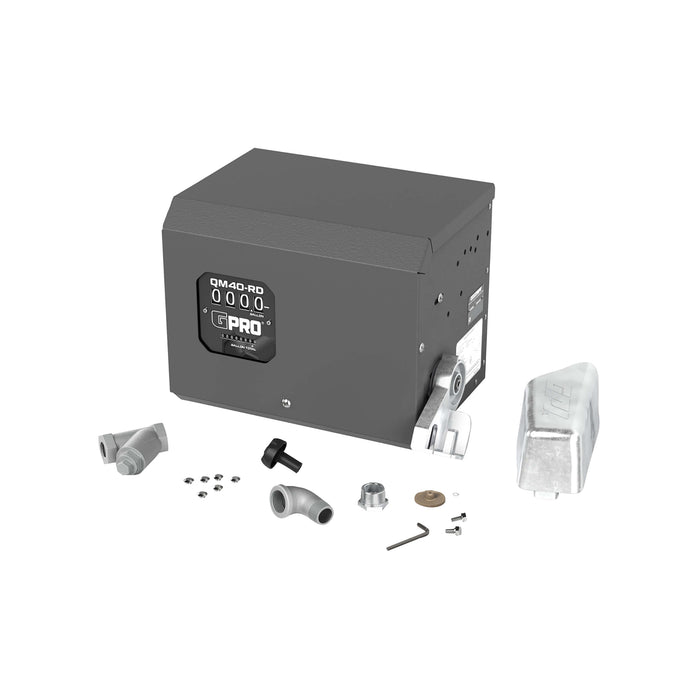

What's in the Box
QM40 Remote Dispenser Meter with gallon register, installed in Cabinet, (1) Nozzle cover and hardware, (1) 90-degree elbow fitting, (1) 3/4-inch reducer bushing, (1) Reset knob, (1) Unleaded fuel gear, (1) Y-Strainer, (1) 5 mm L-Key hex wrench, Owner's manual, and Filter installation instructions
QM40 Remote Dispenser Meter with litre register, installed in Cabinet, (1) Nozzle cover and hardware, (1) 90-degree elbow fitting, (1) 3/4-inch reducer bushing, (1) Reset knob, (1) Unleaded fuel gear, (1) Y-Strainer, (1) 5 mm L-Key hex wrench, Owner's manual, and Filter installation instructions
