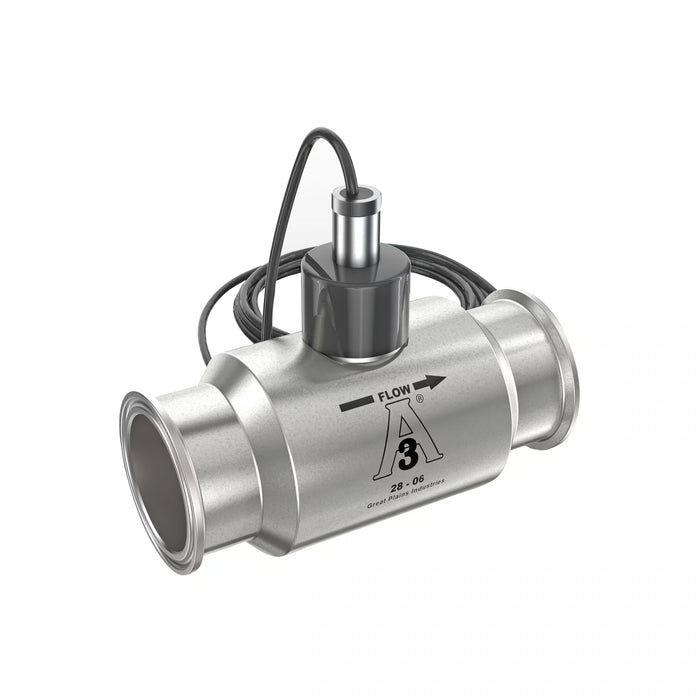

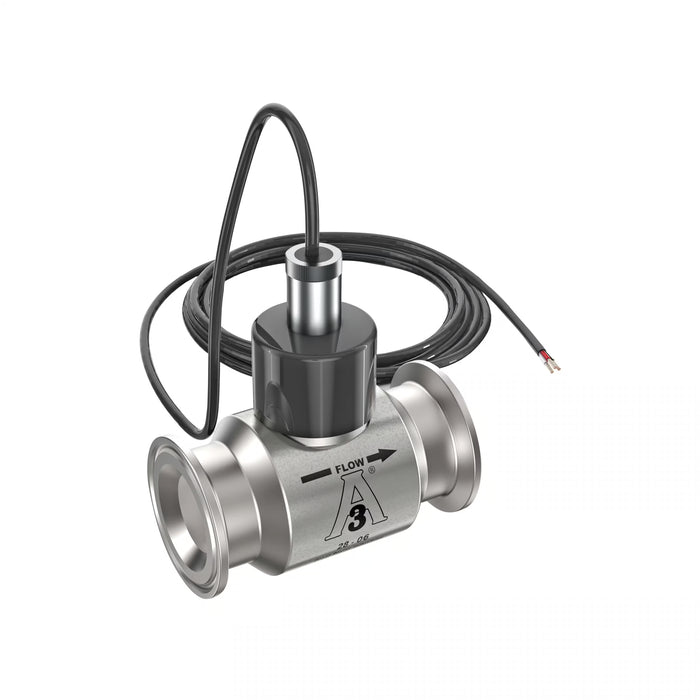

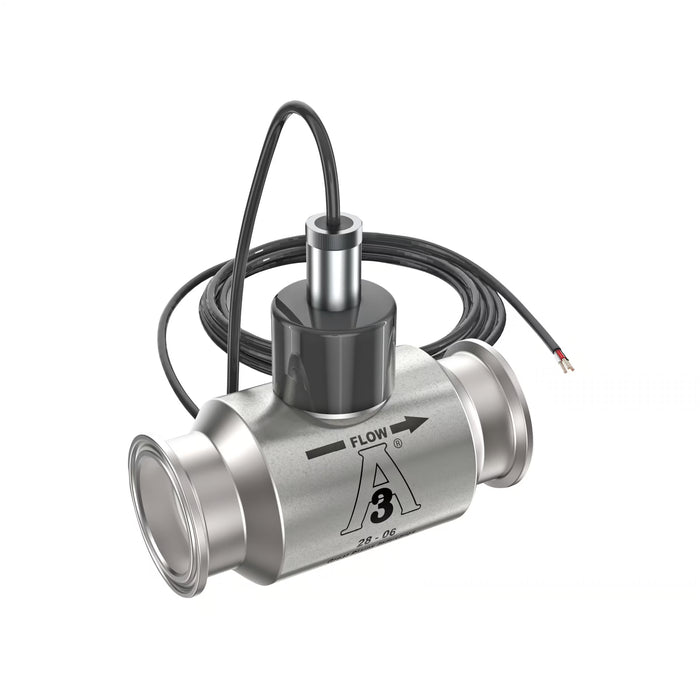

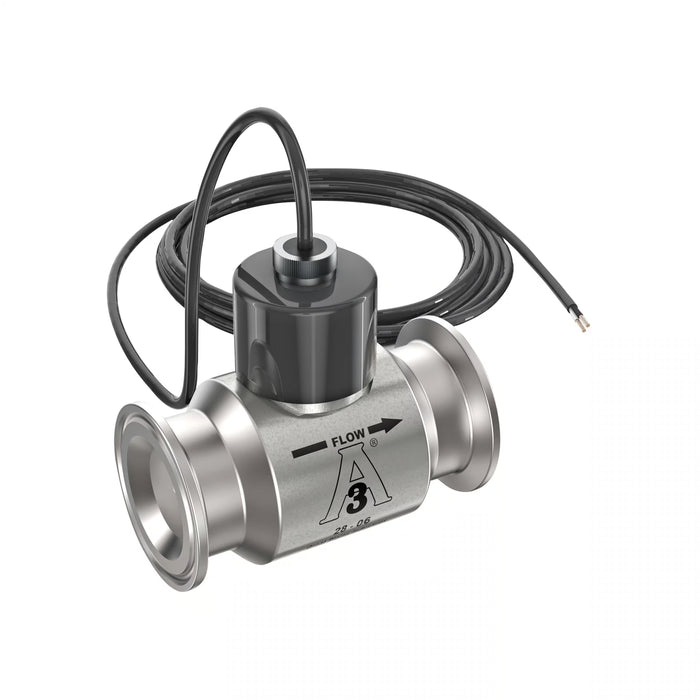

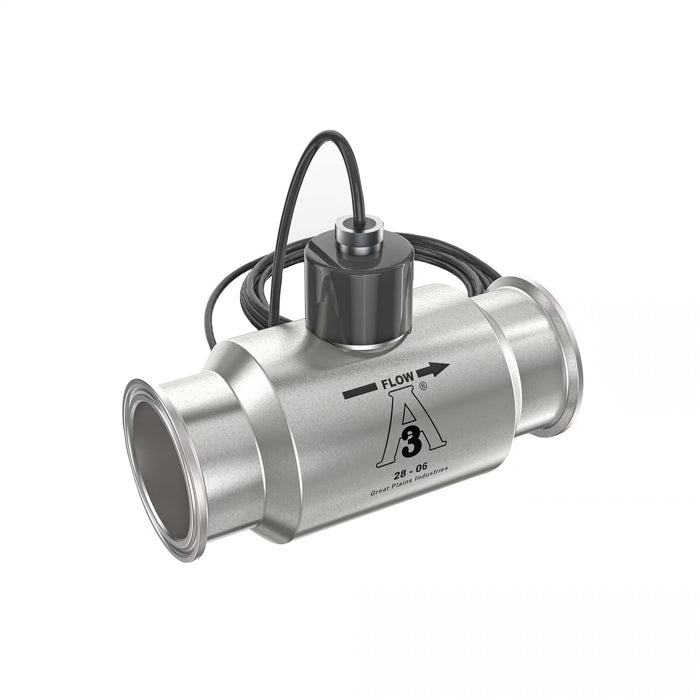

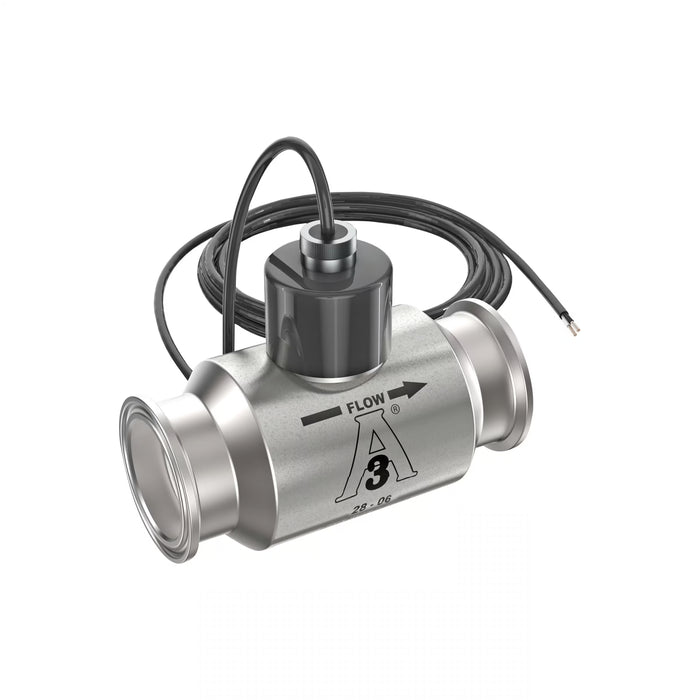

Turbine Flow Meter, 3A Food Grade, Stainless Steel Body for Food Processes

FLOMEC® GSCPS Series

SKU GSCPS-100-2 | MODEL G-100-3A-2
Original price $1,799.99 - Original price $2,699.99
Original price
$1,799.99
$1,799.99 - $2,699.99
Current price $1,799.99

Some FLOMEC products are built to order, and typically have a lead time of 2-3 weeks

After placing your order a GPI representative will contact you regarding the lead time and availability for this item.

Recommended for use with these liquids:

Milk | Water | Light Oils | Beer | Alcohols | Filtered Wine | Deionized Water | Vinegar | Juice | CIP Solution

The GSCPS Series High Precision Meter is the most accurate of all the FLOMEC® Turbine Meters. In addition, this meter meets the strict 3A Sanitary Standards for any food and beverage application.

Features & Benefits

  • CIP (clean in place) | SIP (steam in place) | COP (clean out of place)
  • 2-Wire Magnetic Pickup with 10ft. of Cable (Sine Wave Pulse)
  • Internal parts are simple to replace for easy maintenance
  • Expansive working temperature of -100° F to 225° F (-74° C to 107° C) to accommodate various stages of food and beverage processes°
  • Meets Clean in Place (CIP), Steam in Place (SIP), and Clean Out of Place (COP) requirements to allow for any sanitary procedure that work best for plant managers
  • Capable of 285° F (140° C) temperature up to 1 hour for SIP sanitary procedures
Pipe Size: 1-inch
Pickup Coil Type: 2-wire
Fitting Type: 1-1/2-inch Tri-Clamp
Specifications
Flow Range:
6.7 - 67 GPM (25-252 L/min)
Accuracy (% of Reading):
+/- 0.5%
Technology:
Turbine
Pressure Rating:
Limited by fitting, clamp size, & temperature
Operating Temperature:
-100° F to 225° F (-74° C to 107° C); For SIP (up to 1 hour) 285° F (140° C)
Connection Type/Size:
Tri-Clamp, 1-1/2-inch
Pipe Size:
1-inch
Meter Housing Material:
Stainless Steel
Wetted Materials:
300 Series Stainless Steel | 316 Stainless Steel | CD4MCu Stainless Steel | PEEK
Warranty:
2-yr meter warranty
Approvals:
CIP/SIP/COP, 3A 28-06
Manuals / Documents
What's in the Box
Turbine flowmeter, 2-wire magnetic pickup coil with 10-feet shielded cable, Declaration of Conformity, Calibration Report, Owner's Manual
UNDERSTANDING 3A CERTIFICATION

UNDERSTANDING 3A CERTIFICATION

In industries where precision and hygiene are paramount, such as food and beverage production, the choice of equipment is critical. When it comes to flow measurement, ensuring sanitary conditions is non-negotiable. This is where the 3A Sanitary Certification comes into play, ensuring that equipment meets rigorous standards for cleanliness and safety.
