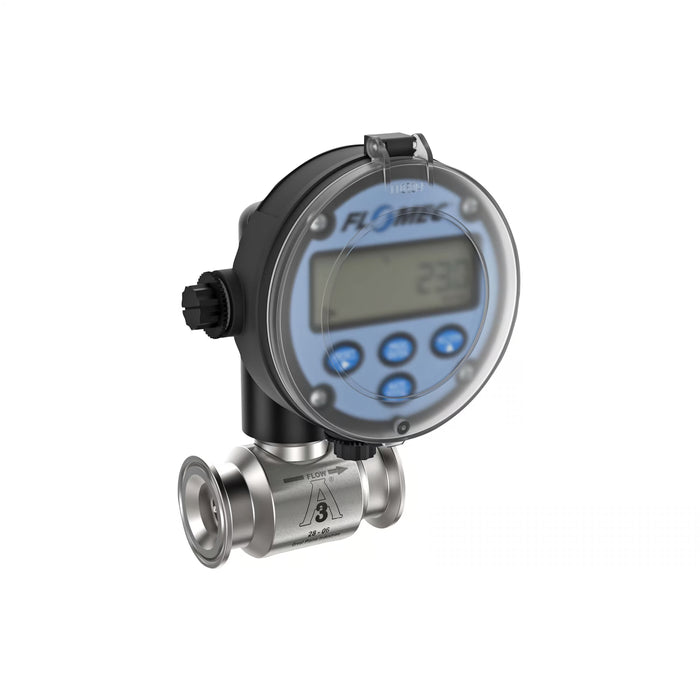

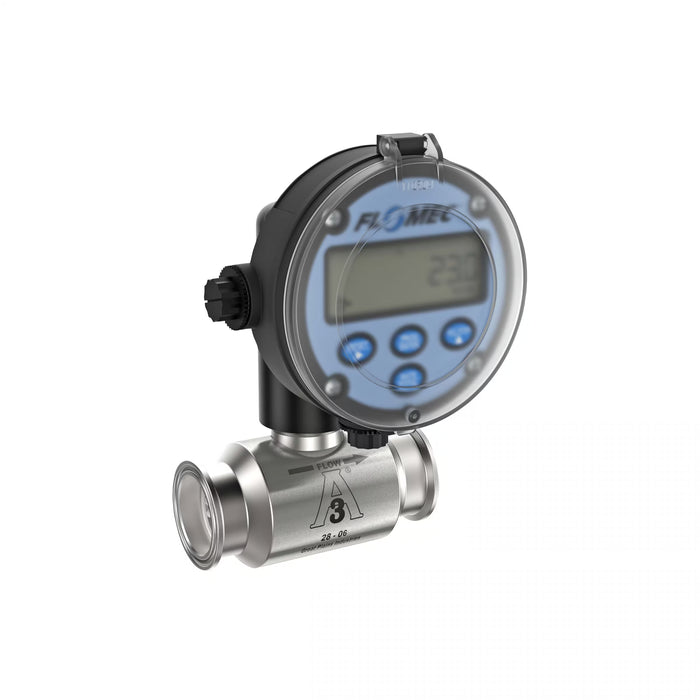

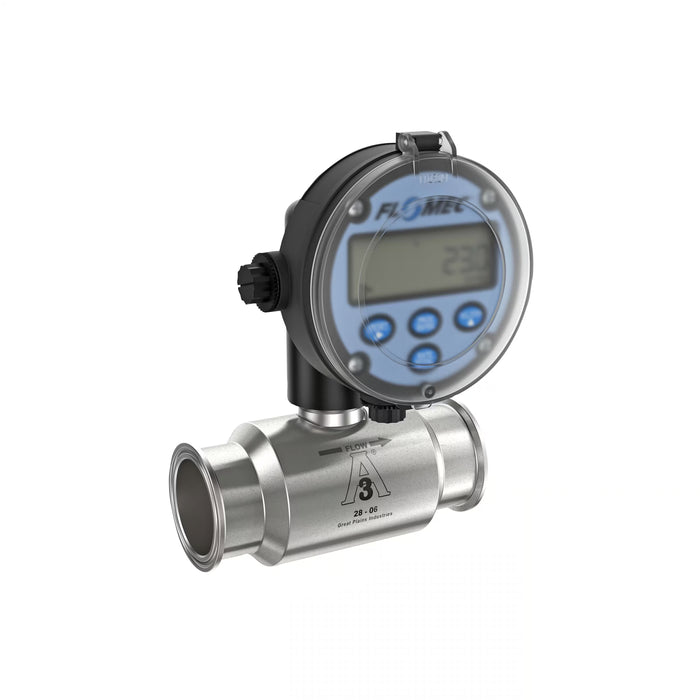

Turbine Flow Meter, Battery Powered Display, 3A Food Grade, Stainless Steel Body for Food Processes
FLOMEC® GSCPS Series
SKU GSCPS-100-RT14
| MODEL G-100-3A-R
| MODEL G-150-3A-R
| MODEL G-200-3A-R
Sold out
Original price
$2,299.99
-
Original price
$3,099.99
Original price
$2,299.99
$2,299.99
-
$3,099.99
Current price
$2,299.99
Some FLOMEC products are built to order, and typically have a lead time of 2-3 weeks
After placing your order a GPI representative will contact you regarding the lead time and availability for this item.
Recommended for use with these liquids:
Milk | Water | Light Oils | Beer | Alcohols | Filtered Wine | Deionized Water | Vinegar | Juice | CIP Solution Milk | Water | Light Oils | Beer | Alcohols | Filtered Wine | Deionized Water | Vinegar | Juice | CIP Solution Milk | Water | Light Oils | Beer | Alcohols | Filtered Wine | Deionized Water | Vinegar | Juice | CIP Solution
The GSCPS Series High Precision Meter is the most accurate of all the FLOMEC® Turbine Meters. In addition, this meter meets the strict 3-A Sanitary Standards for any food and beverage application. Local display with 4-20mA, scalled pulse and raw pulse output.
Features & Benefits
- CIP (clean in place)|SIP (steam in place)|COP (clean out of place)
- Local Display RT14, LCD backlit display, 4-20mA and scaled output signal for connection to a variety of chart recorders, display equipment, and process control equipment.
- Flow alarm for high, low or high/low
- Internal parts are simple to replace for easy maintenance
- Expansive working temperature of -100° F to 225° F (-74° C to 107° C) to accommodate various stages of food and beverage processes
- Meets Clean in Place (CIP), Steam in Place (SIP), and Clean Out of Place (COP) requirements to allow for any sanitary procedure that work best for plant managers
- Capable of 285° F (140° C) temperature up to 1 hour for SIP sanitary procedures
- CIP (clean in place)|SIP (steam in place)|COP (clean out of place)
- Local Display RT14, LCD backlit display, 4-20mA and scaled output signal for connection to a variety of chart recorders, display equipment, and process control equipment.
- Flow alarm for high, low or high/low
- Internal parts are simple to replace for easy maintenance
- Expansive working temperature of -100° F to 225° F (-74° C to 107° C) to accommodate various stages of food and beverage processes
- Meets Clean in Place (CIP), Steam in Place (SIP), and Clean Out of Place (COP) requirements to allow for any sanitary procedure that work best for plant managers
- Capable of 285° F (140° C) temperature up to 1 hour for SIP sanitary procedures
- CIP (clean in place)|SIP (steam in place)|COP (clean out of place)
- Local Display RT14, LCD backlit display, 4-20mA and scaled output signal for connection to a variety of chart recorders, display equipment, and process control equipment.
- Flow alarm for high, low or high/low
- Internal parts are simple to replace for easy maintenance
- Expansive working temperature of -100° F to 225° F (-74° C to 107° C) to accommodate various stages of food and beverage processes
- Meets Clean in Place (CIP), Steam in Place (SIP), and Clean Out of Place (COP) requirements to allow for any sanitary procedure that work best for plant managers
- Capable of 285° F (140° C) temperature up to 1 hour for SIP sanitary procedures
Specifications
- Flow Range:
- 6.7 - 67 GPM (25-252 L/min)
- Accuracy (% of Reading):
- +/- 0.5%
- Technology:
- Turbine
- Pressure Rating:
- Limited by fitting, clamp size, & temperature
- Operating Temperature:
- -100° F to 225° F (-74° C to 107° C); For SIP (up to 1 hour) 285° F (140° C)
- Connection Type/Size:
- Tri-Clamp, 1-1/2-inch
- Pipe Size:
- 1-inch
- Meter Housing Material:
- Stainless Steel
- Wetted Materials:
- 300 Series Stainless Steel | 316 Stainless Steel | CD4MCu Stainless Steel | PEEK
- Warranty:
- 2-yr meter warranty
- Approvals:
- CIP/SIP/COP, 3A 28-06
- Flow Range:
- 17.7 - 177 GPM (67-670 L/min)
- Accuracy (% of Reading):
- +/- 0.5%
- Technology:
- Turbine
- Pressure Rating:
- Limited by fitting, clamp size, & temperature
- Operating Temperature:
- -100° F to 225° F (-74° C to 107° C); For SIP (up to 1 hour) 285° F (140° C)
- Connection Type/Size:
- Tri-Clamp, 1-1/2-inch
- Pipe Size:
- 1-1/2-inch
- Meter Housing Material:
- Stainless Steel
- Wetted Materials:
- 300 Series Stainless Steel | 316 Stainless Steel | CD4MCu Stainless Steel | PEEK
- Warranty:
- 2-yr meter warranty
- Approvals:
- CIP/SIP/COP, 3A 28-06
- Flow Range:
- 33 - 330 GPM (125-1250 L/min)
- Accuracy (% of Reading):
- +/- 0.5%
- Technology:
- Turbine
- Pressure Rating:
- Limited by fitting, clamp size, & temperature
- Operating Temperature:
- -100° F to 225° F (-74° C to 107° C); For SIP (up to 1 hour) 285° F (140° C)
- Connection Type/Size:
- Tri-Clamp, 2-inch
- Pipe Size:
- 2-inch
- Meter Housing Material:
- Stainless Steel
- Wetted Materials:
- 300 Series Stainless Steel | 316 Stainless Steel | CD4MCu Stainless Steel | PEEK
- Warranty:
- 2-yr meter warranty
- Approvals:
- CIP/SIP/COP, 3A 28-06
Manuals / Documents
What's in the Box
Turbine flowmeter, Local display, Display adapter, Declaration of Conformity, Calibration Report, Owner's Manual
Turbine flowmeter, Local display, Display adapter, Declaration of Conformity, Calibration Report, Owner's Manual
Turbine flowmeter, Local display, Display adapter, Declaration of Conformity, Calibration Report, Owner's Manual
